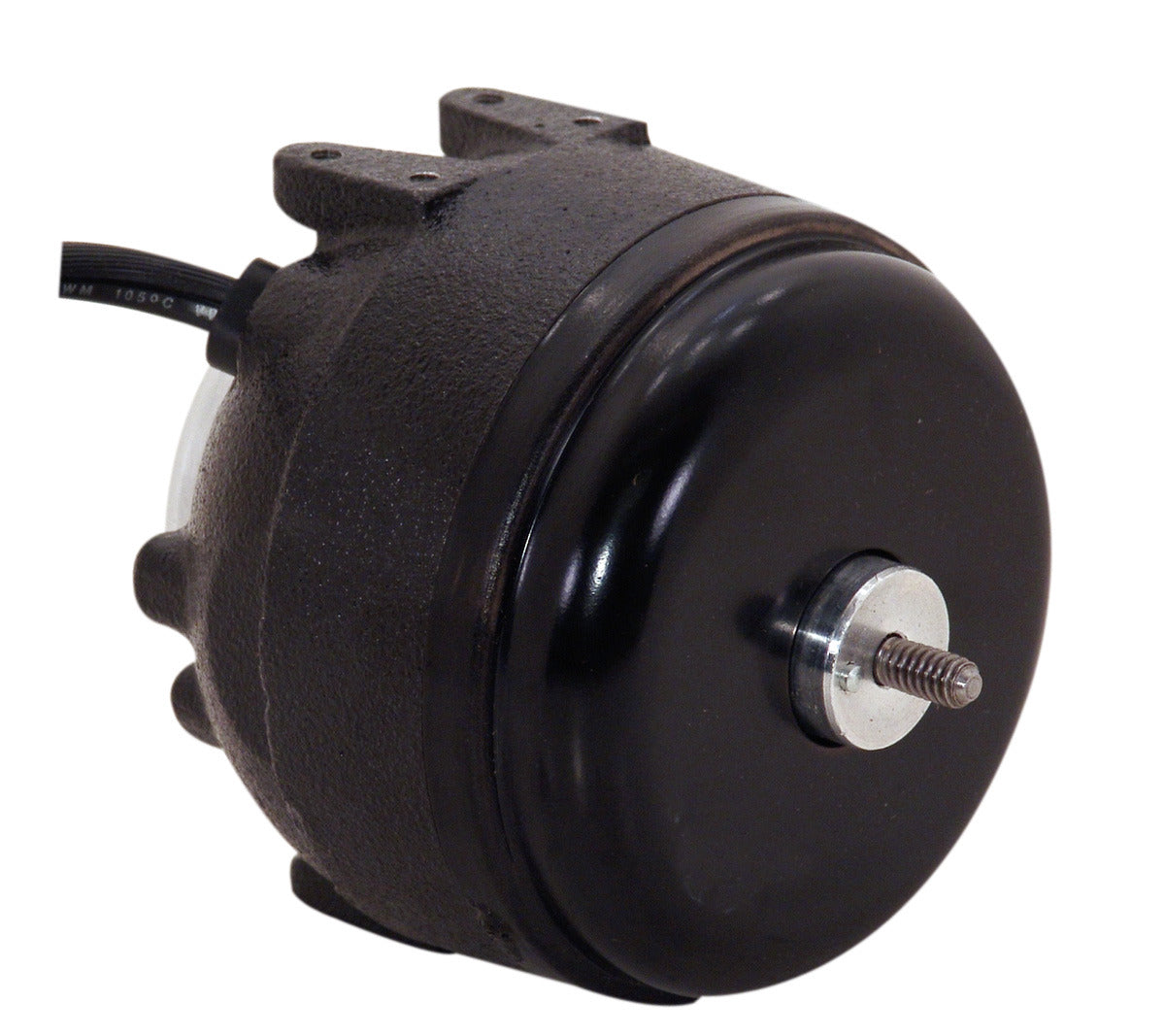

Century U246 Unit Bearing Motor 0.016KW 1500RPM 115V CWLE

Product Description

The Century U246 Unit Bearing Motor is a reliable shaded pole motor ideal for HVAC applications. Designed with a power rating of 0.016 KW, it operates at 1500 RPM with a voltage of 115V and a rotation of CWLE. This motor's construction features a cast iron material for durability and a TEAO enclosure for protection.

• 0.016 KW power
• 1500 RPM speed
• 115V voltage

Product Highlights

Century U246 is a shaded pole motor, 115 volts, with 1500 RPM speed, suitable for various HVAC applications.

Product Information

Standard Information

• Brand: Century
• MPN: U246

Technical Specifications

• Electrical Type: Shaded Pole
• KW: 0.016
• RPM: 1500
• Frame: Unit Bearing
• Enclosure: TEAO
• Phase: Single
• Voltage: 115
• Rotation: CWLE
• Material: Cast Iron
• Mounting: 2 BOSS/OSE 3 Holes
• Amperage: 0.8
• Shaft Type: Threaded
• Shaft Extension: 0.52
• Shaft Diameter: 0.25
• Shaft Length: 20
• Duty: Continuous
• Poles: 4
• Service Factor: 1
• Insulation Class: A
• Ambient Temperature: 40
