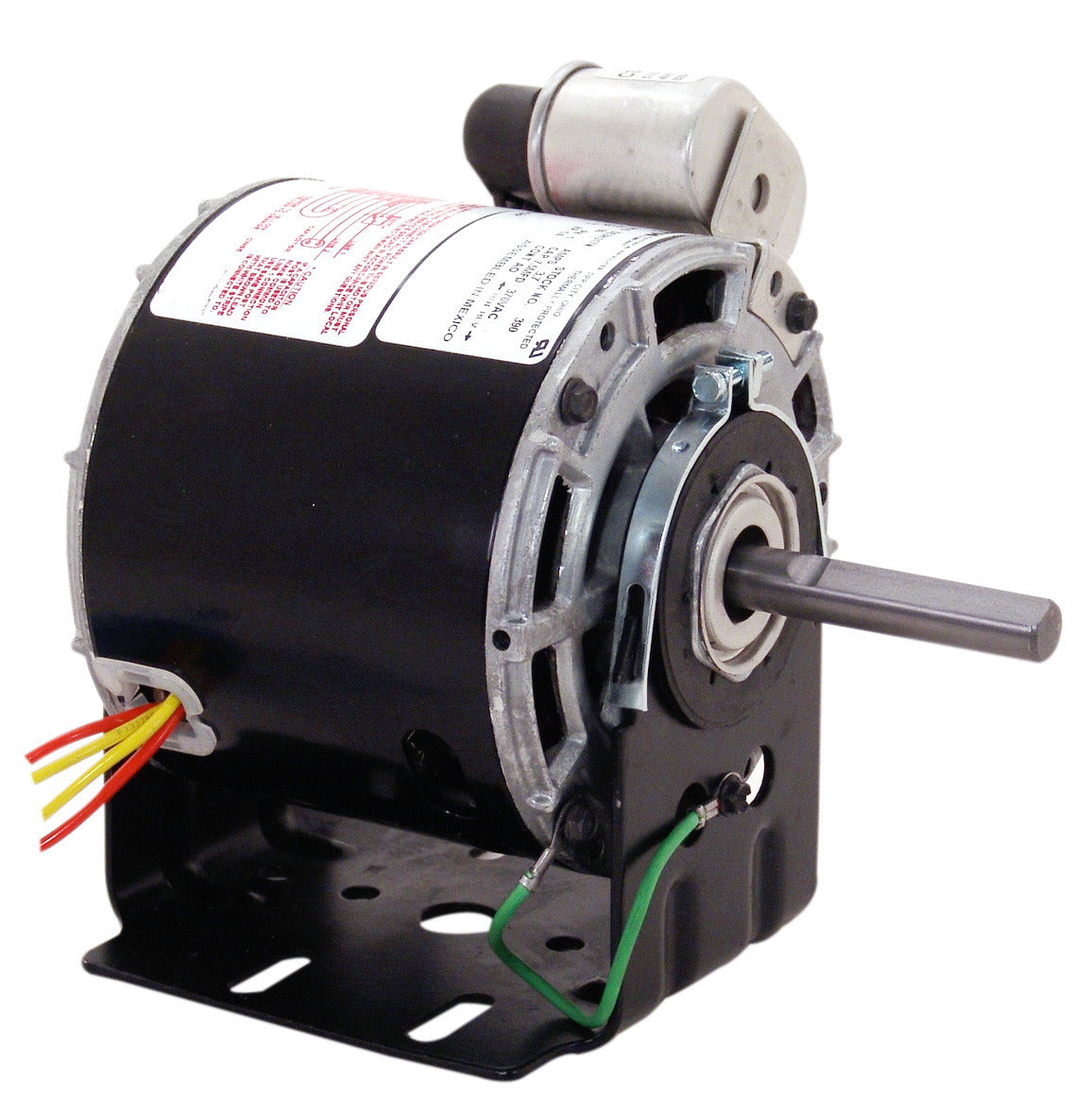

Century U160 OEM Replacement Motor 1/3 HP 208-230V 1625 RPM

Product Description

The Century U160 OEM Replacement Motor is designed for HVAC systems and other applications requiring consistent performance. With a power rating of 1/3 HP and operating voltage of 208-230V, this motor is suitable for a variety of uses.

• PSC Electrical Type
• 1625 RPM Speed
• Resilient Base Mounting

Product Highlights

This motor is crafted from durable rolled steel, ensuring reliability and longevity. It features a sleeve bearing type and has an auto overload protector for safety.

Product Information

Standard Information

• Brand: Century
• MPN: U160
• OEM Part Number: 160A
• Country of Origin: Mexico

Technical Specifications

• HP: 1/3
• KW: 0.25
• RPM: 1625
• Frame: 48Y
• Diameter: 5.6 inches
• Phase: Single
• Voltage: 208-230
• Rotation: REV
• Overload Protector: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Mounting Type: Resilient Base
• Orientation: Horizontal
• Amperage: 3.0
• Shaft Type: Double Flat
• Shaft Extension: 4.000 inches
• Shaft Diameter: 0.500 inches
• Insulation Class: B
• Poles: 4
• Service Factor: 1
• Starting Method: Across The Line
• Duty: Air Over
• Certification UL: Recognized
• Certification CSA: Y
