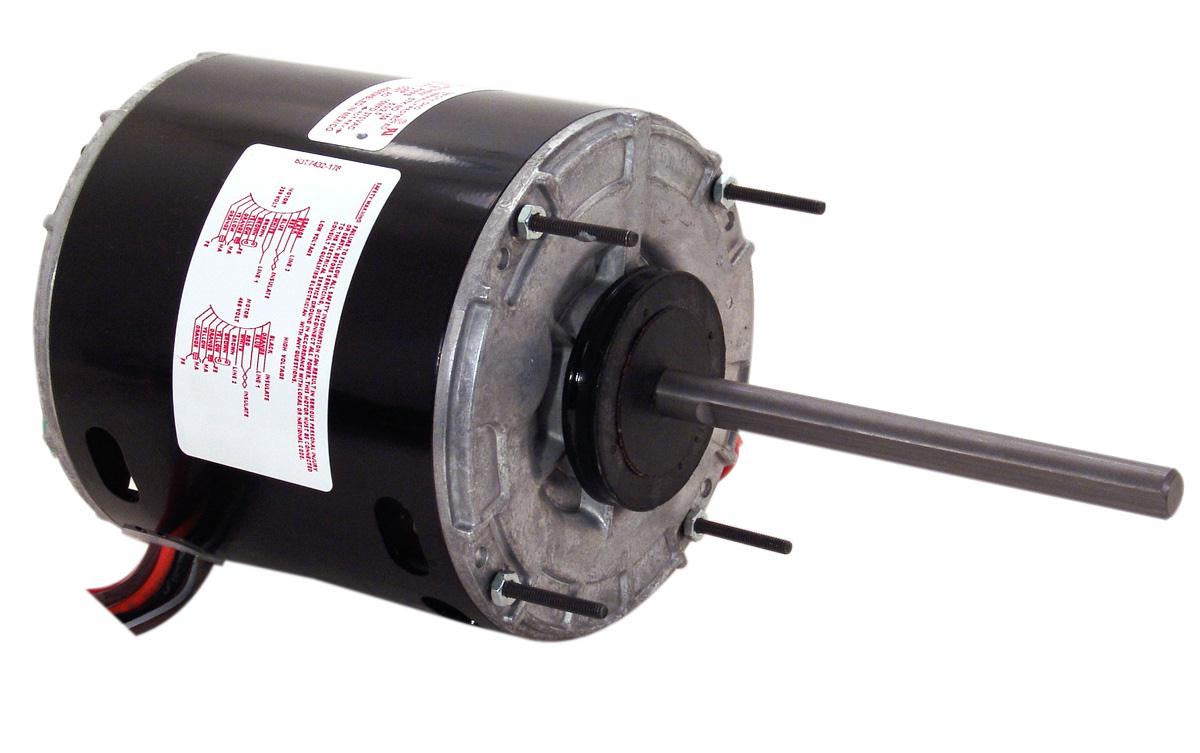

Century U159 Condenser Fan Motor 1 HP 230/460 Volts REV

Product Description

The Century U159 Condenser Fan Motor is a reliable PSC motor with a power rating of 1 HP. This single-phase motor operates at 1075 RPM and has a semi-enclosed design for optimal performance.

• Voltage: 230/460
• Rotation: REV
• Overload Protection: Auto

Product Highlights

Perfect for residential and light commercial applications, this motor features a 48Y frame and is made from durable rolled steel. Its ball bearings and resilient mounting ring ensure smooth operation.

Product Information

Standard Information

• Brand: Century
• MPN: U159

Technical Specifications

• Electrical Type: PSC
• HP: 1
• KW: 0.75
• RPM: 1075
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: Semi-enclosed
• Phase: Single
• Voltage: 230/460
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Bearings SE Type: Ball
• Bearings OSE Type: Ball
• Mounting: Resilient Ring / Extended Studs
• Orientation: Horizontal
• Amperage: 4.7/2.4
• Shaft Type: Flat
• Shaft Extension: 6 inches
• Shaft Diameter: 0.5 inches
• Duty: Air Over
• Insulation Class: B
• Poles: 6
• Service Factor: 1
• Start Method: Across The Line
