Century U158 Condenser Fan Motor 3/4 HP 1075 RPM 460V 48Y Frame

Product Description

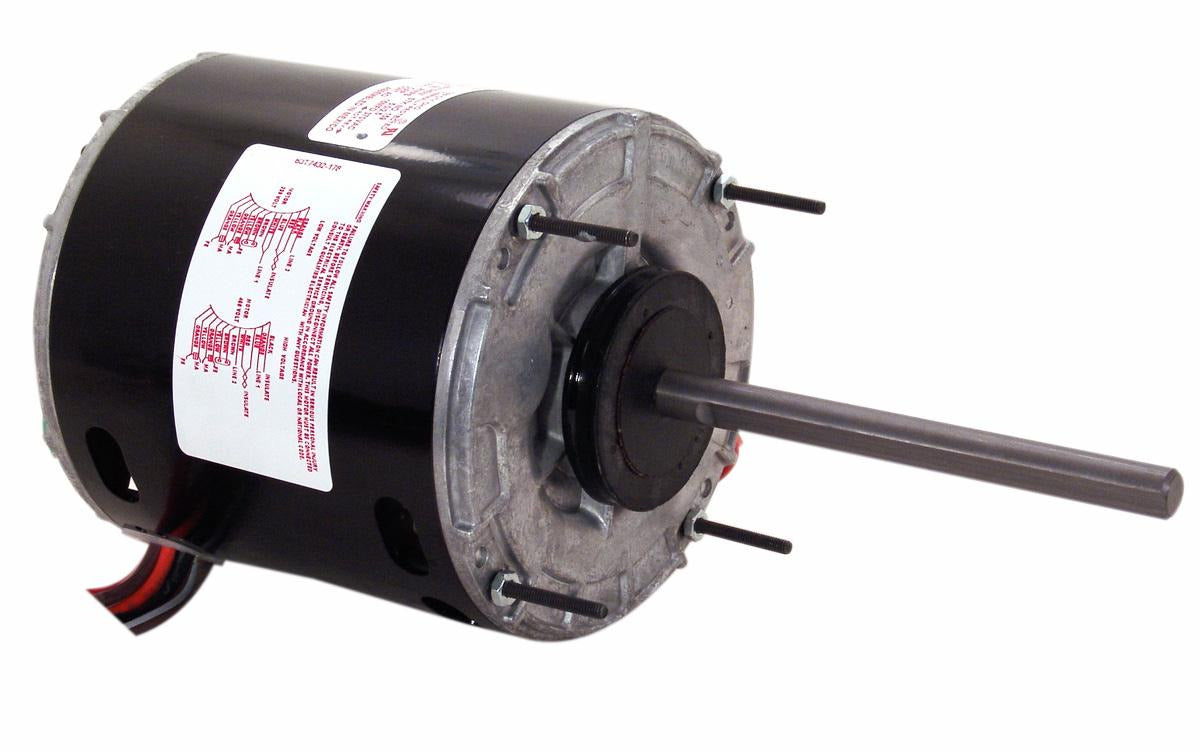

The Century U158 Condenser Fan Motor is designed for efficient performance in HVAC applications. This motor has a power output of 3/4 HP and runs at 1075 RPM with a voltage of 460V. It features a 48Y frame and is constructed with rolled steel.

• 3/4 HP power output
• 1075 RPM speed
• 460V single-phase operation

Product Highlights

The motor is optimized for HVAC systems, offering reliable performance and durability.

Product Information

Standard Information

• Brand: Century
• MPN: U158

Technical Specifications

• Electrical Type: PSC
• Horsepower: 3/4 HP
• Kilowatts: 0.56
• Speed: 1075 RPM
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: Semi-Enclosed
• Phase: Single
• Voltage: 460V
• Rotation: REV
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Ball/Ball
• Mounting Type: Resilient Ring/Extended Studs
• Orientation: Horizontal
• Amperage: 2.1A
• Shaft Type: Flat
• Shaft Extension: 6.000 inches
• Shaft Diameter: 0.500 inches
• Certification: UL Recognized, CSA Certified
• Country of Origin: Mexico
