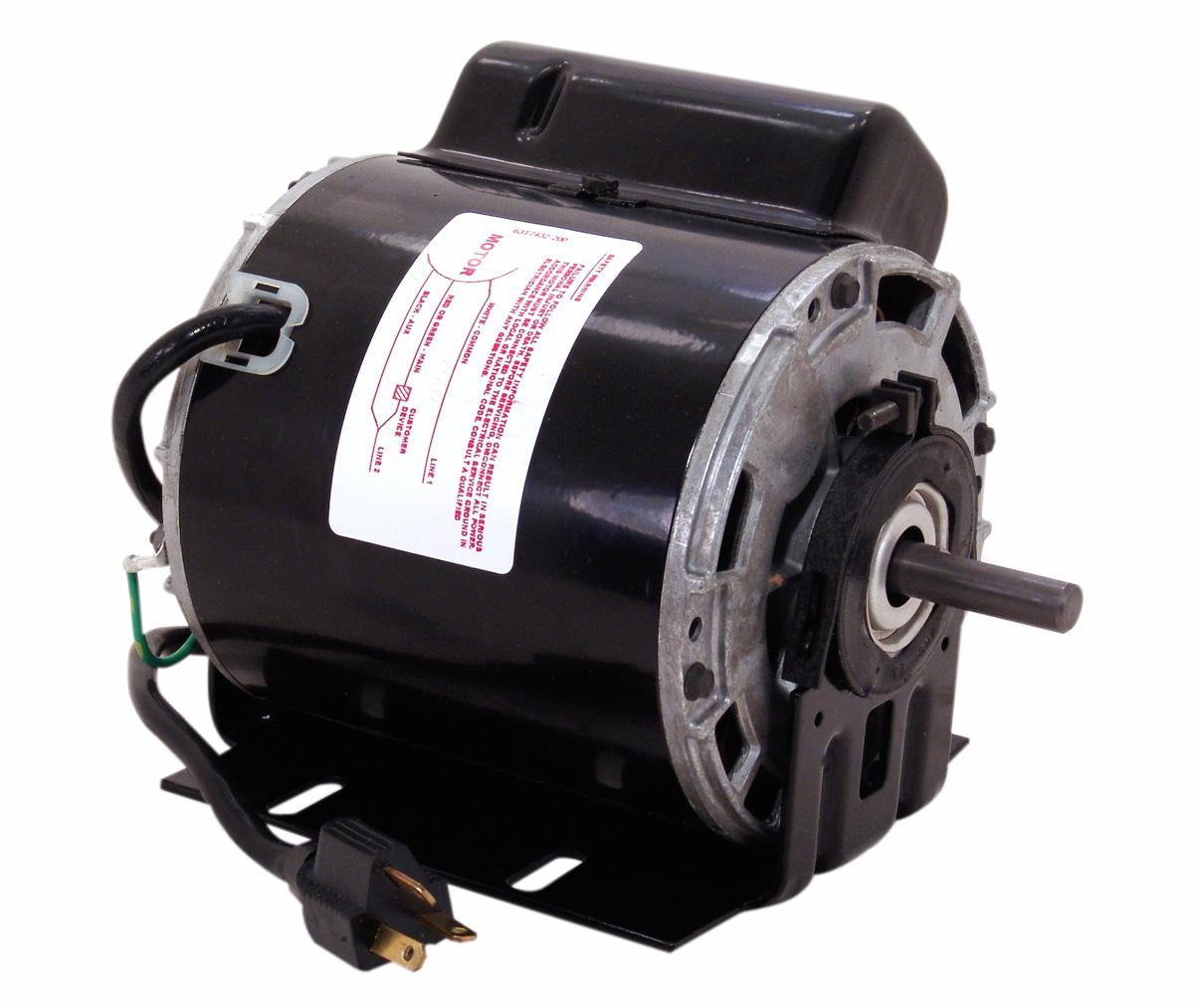

Century U0547 OEM Replacement Motor 1/8 HP 0.1 KW 700 RPM

Product Description

The Century U0547 OEM Replacement Motor offers reliable performance with 1/8 horsepower and 0.1 kW power output. It operates at 700 RPM and features a 48Y frame. Designed for use in HVAC systems, this motor is constructed from rolled steel and has a flat shaft extension of 2.100 inches.

• PSC electrical type
• Single-phase operation
• 115 volts

Product Highlights

This motor is suitable for various HVAC systems. It has an auto overload protector and a ball bearing type for durability. With a resilient base mounting and horizontal orientation, the U0547 ensures stable operation.

Product Information

Standard Information

• Electrical Type: PSC
• HP: 1/8
• KW: 0.1
• RPM: 700

Technical Specifications

• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: OAO
• Phase: Single
• Voltage: 115
• Rotation: CWLE
• Overload Protector: Auto
• Material: Rolled Steel
• Bearings Type: Ball
• Bearings SE Type: Ball
• Bearings OSE Type: Ball
• Mounting: Resilient Base
• Orientation: Horizontal
• Amperage: 2.1
• Shaft Type: Flat
• Shaft Extension: 2.100 inches
• Shaft Diameter: 0.500 inches
• Insulation Class: B
• Poles: 10
• Service Factor: 1
• Starting Method: Across The Line
