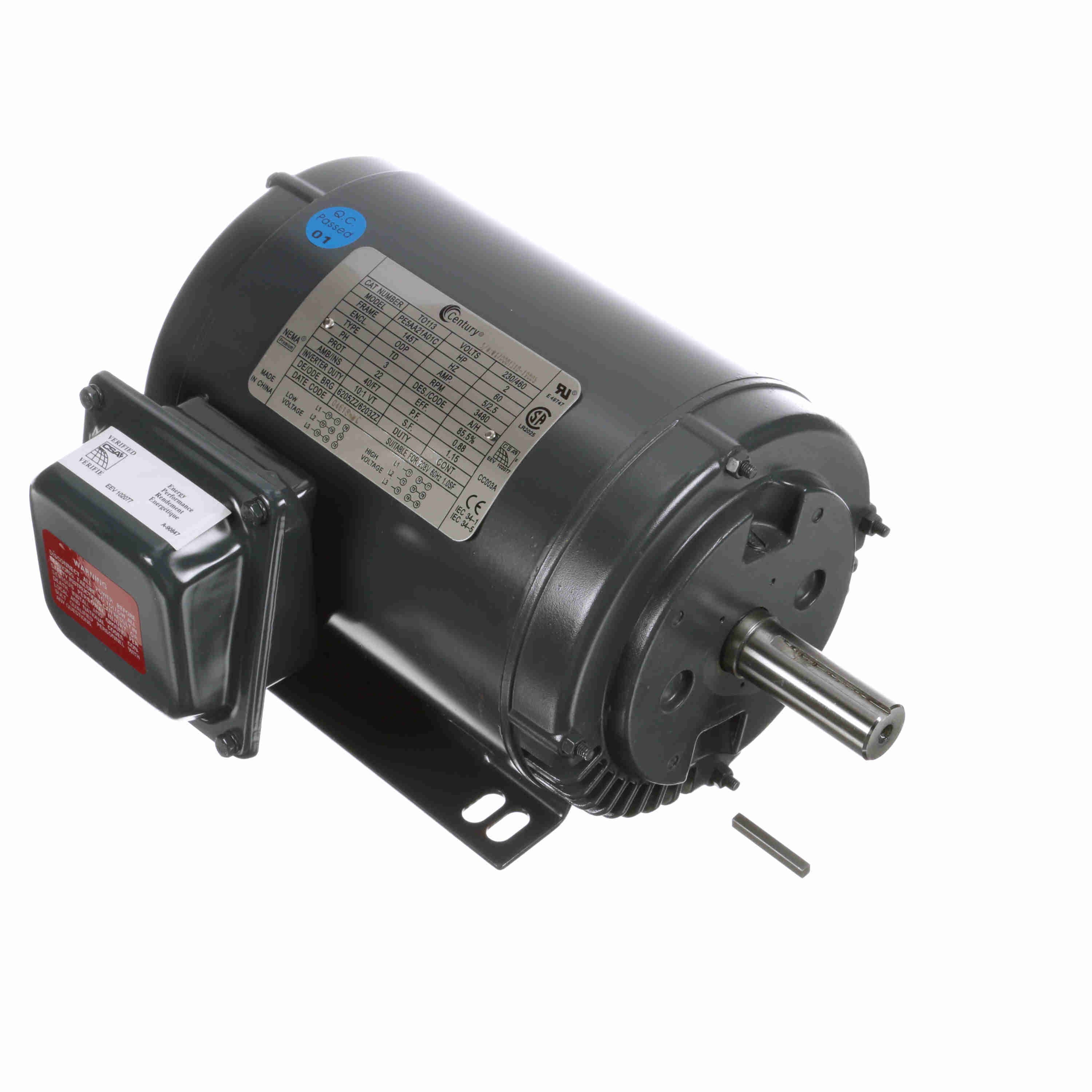

Century TO113 General Purpose Motor 2 HP 208-230/460

Product Description

The Century TO113 is a general-purpose motor featuring a two horsepower rating and operates on voltages of 208-230/460. This motor is designed for three-phase applications and is reversible, providing versatility in installation. It uses rolled steel for the casing and comes with a rigid base for secure mounting in various environments.

• Electrical Type: Polyphase
• Overload Protection: None
• Enclosure Type: Open Drip Proof

Product Highlights

This motor meets or exceeds NEMA Premium efficiency and is compliant with EISA2022 standards. It is suitable for inverter duty with variable and constant torque applications, making it ideal for HVAC systems and other industrial uses.

Product Information

Standard Information

• Model: Century TO113
• Voltage: 208-230/460

Technical Specifications

• Horsepower: 2 HP
• Kilowatts: 1.5 KW
• RPM: 3480
• Frame Size: 145T
• Phase: Three
• Amperage: 5/2.5
• Shaft Diameter: 0.875 inches
• Service Factor: 1.15
