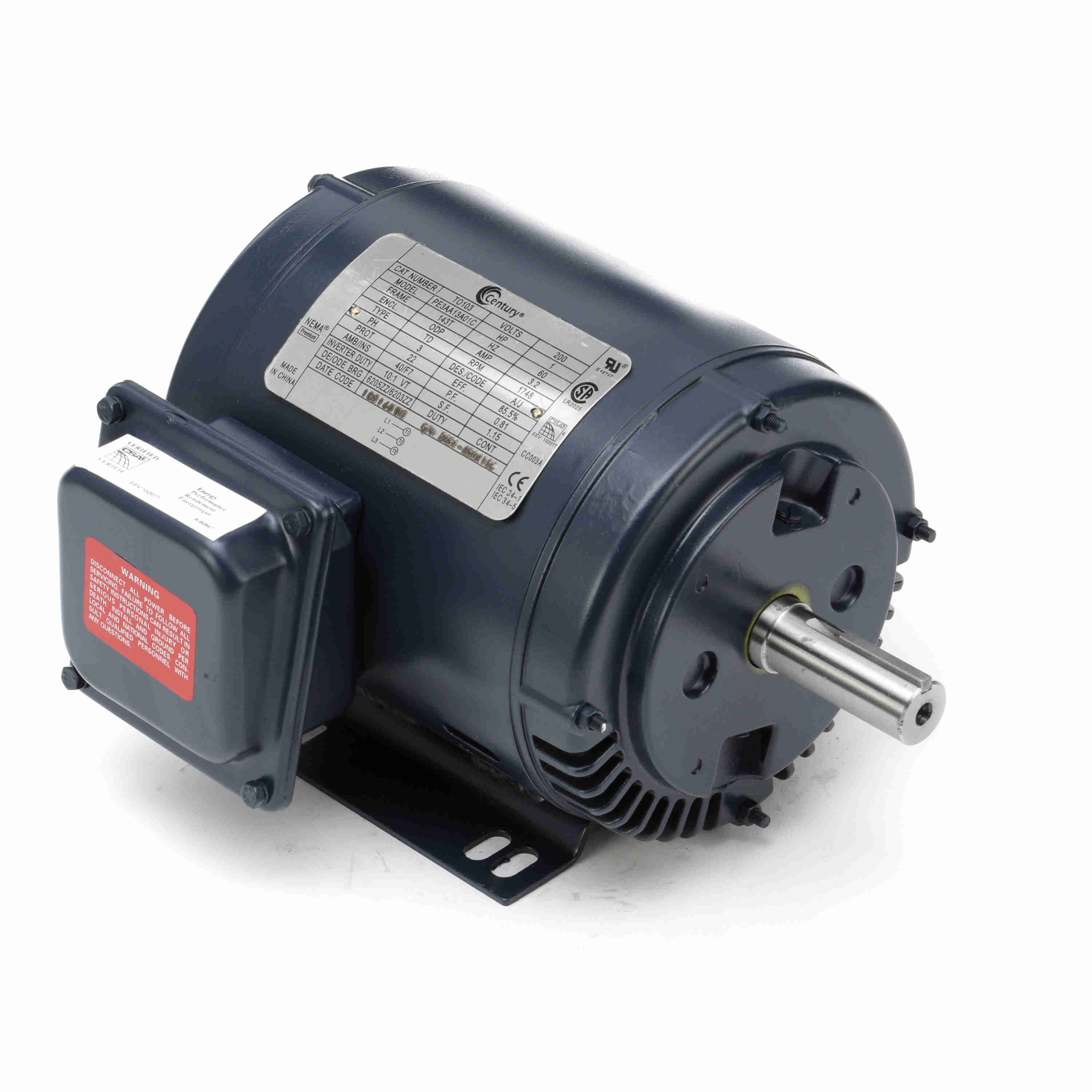

Century Motors TO103 General Purpose Motor POLYPHASE Open Drip Proof 143T Three Phase 143TTDBD6039

Product Description

The Century Motors TO103 is a robust general purpose motor designed for a variety of industrial applications. Engineered with a POLYPHASE system, this motor operates with an Open Drip Proof enclosure ensuring durability in various environments. Key specifications include 1 horsepower and a 1748 RPM at a 143T frame size.

• Optimal efficiency with compliance to EISA2010.
• Inverter duty rating at 10:1 variable and 2:1 constant torque.
• Reversible motor design with dual mounting options.

Product Highlights

Featuring a rolled steel construction for exceptional durability and ball type bearings ensuring smooth operations under various loads. Its compatibility with both sinewave and IGBT power options offers flexibility in usage across different platforms.

Product Information

Standard Information

• Phase: Three
• Voltage: 200 volts

Technical Specifications

• Frame: 143T
• Enclosure: Open Drip Proof
• HP: 1
• RPM: 1748
• Amperage: 3.2 amps
• Shaft Type: Keyed
• Shaft Dimensions: Length: 2.25 inches, Diameter: 0.875 inches
• Material: Rolled Steel
