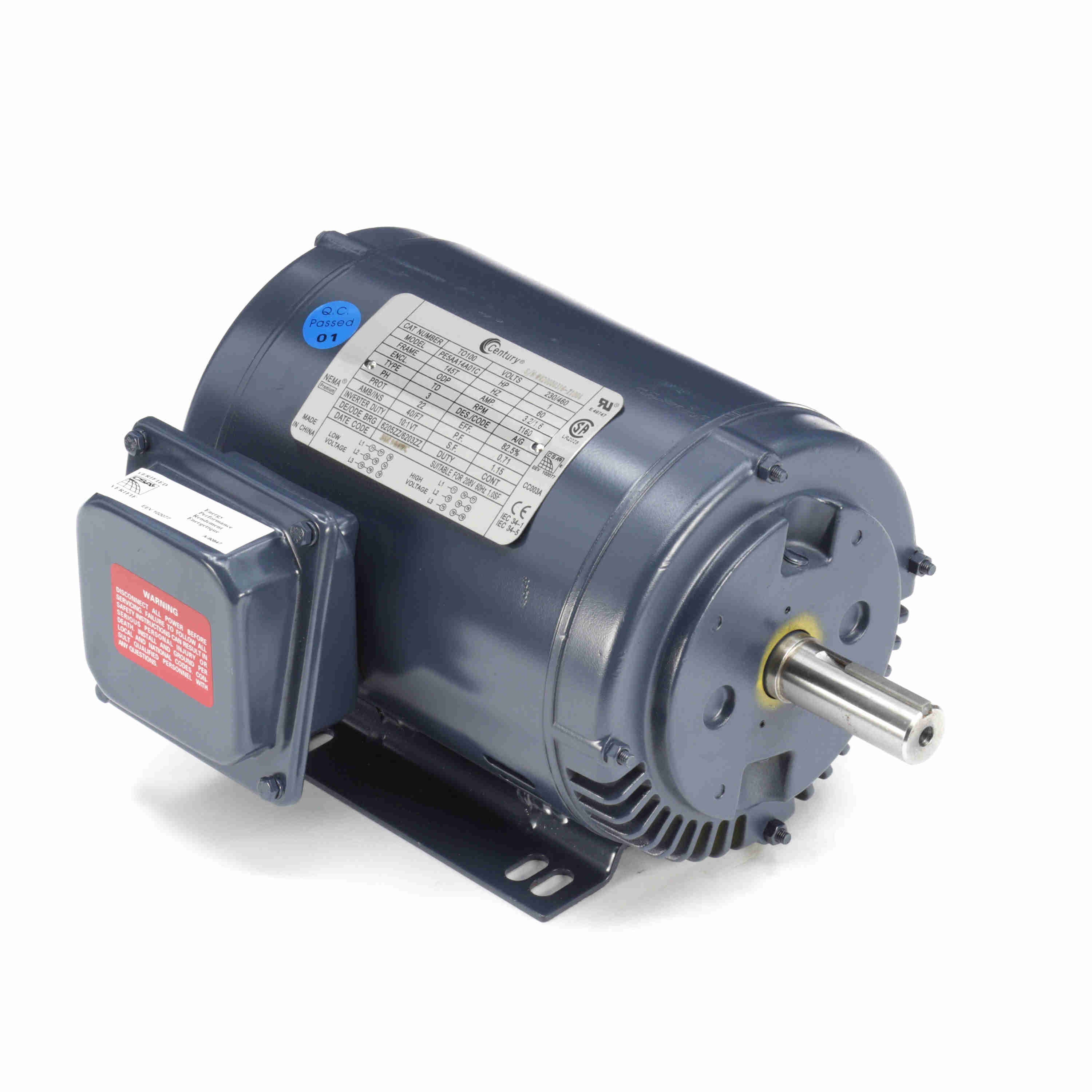

Century TO100 General Purpose Motor 1 HP 1160 RPM

Product Description

The Century TO100 General Purpose Motor is a reliable choice for various applications. With an output of one horsepower, this motor operates at one thousand one hundred sixty RPM. It features a three-phase electrical design and is suitable for both commercial and industrial use.

• Voltage range: two hundred eight to two hundred thirty, and four hundred sixty volts
• Enclosure type: open drip proof for adequate protection
• Motor material: rolled steel ensures durability

Product Highlights

This motor meets or exceeds NEMA Premium efficiency standards and complies with EISA2007 regulations. It is designed for continuous duty applications, making it effective for long-term use.

Product Information

Standard Information

• Electrical Type: Polyphase
• Shaft Type: Keyed

Technical Specifications

• Horsepower: 1 HP
• RPM: 1160
• Frame Size: 145T
• Phase: 3
• Amperage: 1.55 A
• Shaft Diameter: 0.875 inches
• Service Factor: 1.15
• Weight: 46 lbs
