Century Motors TE110 General Purpose Motor 1.5 HP

Product Description

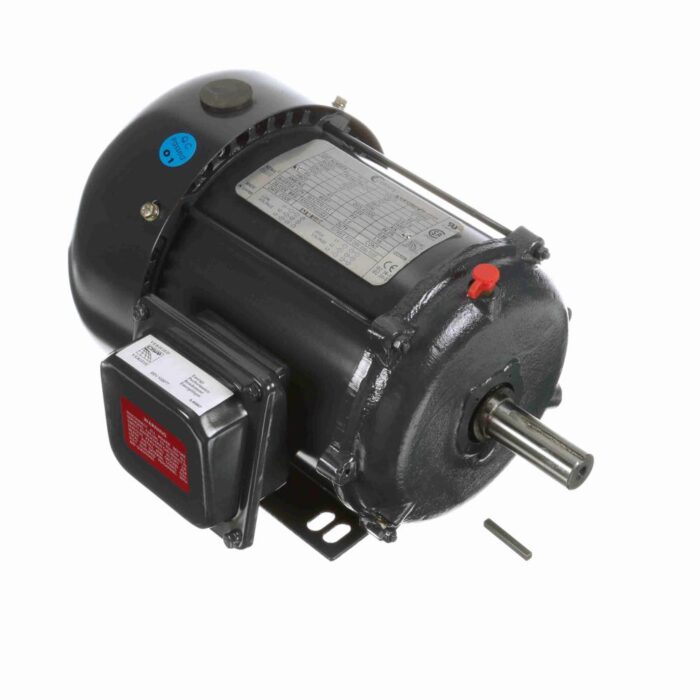

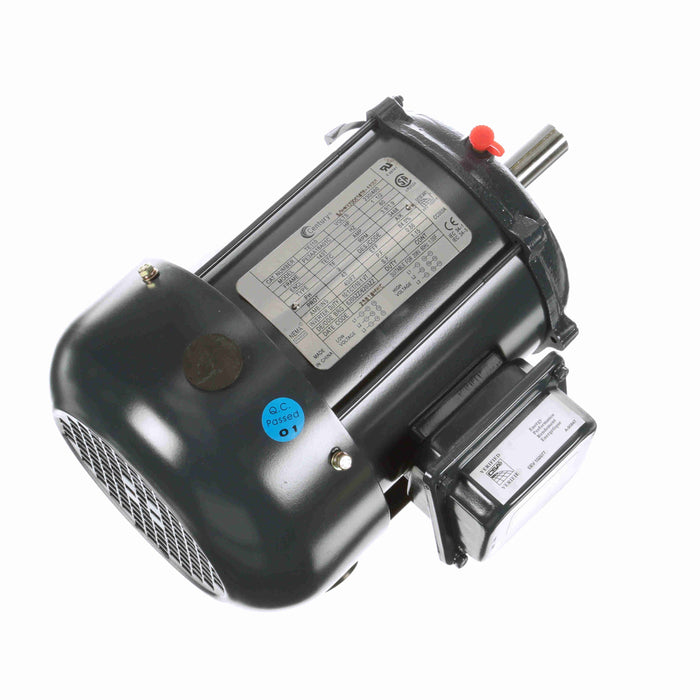

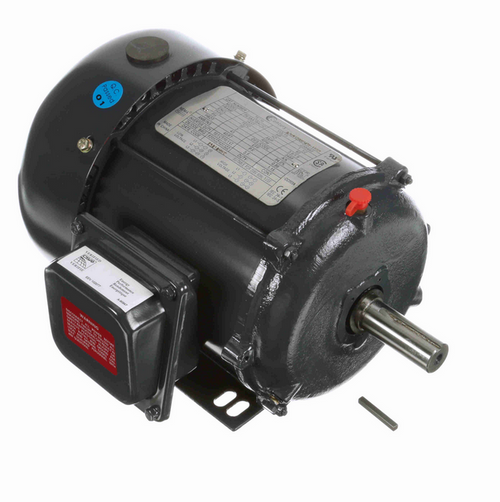

The Century Motors TE110 is a three-phase general-purpose motor that delivers 1.5 horsepower and operates at 3600 RPM. It is compatible with 208-230/460 voltage power systems, making it ideal for various applications. The TEFC (Totally Enclosed Fan Cooled) design protects the motor from dust and moisture. It features a rigid base for secure mounting, ensuring stability during operation.

• Operates on 208-230/460V three-phase power.
• TEFC enclosure provides protection against dust and moisture.
• Equipped with a rigid base for secure mounting.

Product Highlights

This motor is suitable for continuous duty applications. It includes a keyed shaft and ball bearings, which enhance its durability and performance.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• Manufacturer: Century

Technical Specifications

• Part Number: TE110
• Horsepower: 1.5 HP
• RPM: 3600
• Input Voltage: 208-230/460V
• Phase: 3
• Frequency: 60 Hz
• Frame Size: NEMA 143T
• Enclosure Type: TEFC (Totally Enclosed Fan Cooled)
• Mounting Type: Rigid Base
• Shaft Diameter: 7/8 inches
• Shaft Length: 2 1/4 inches
• Service Factor: 1.15
• Insulation Class: F
• Ambient Temperature Rating: 40°C
• Rotation: Reversible
• Duty Cycle: Continuous
• Number of Speeds: 1
• Bearings: Ball
• Overload Protection: None
• Enclosure Material: Steel
• Electrical Type: Three Phase
• Shaft Type: Single
• Efficiency: 84% NEMA nominal efficiency
• Inverter Duty Rating: 10:1 CT / 10:1 VT
• C Dimension: 13.2 inches
