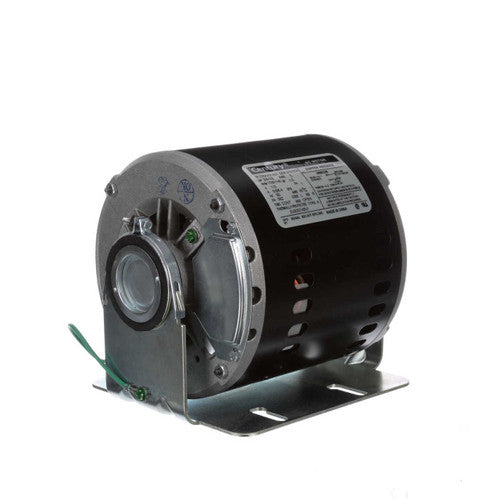

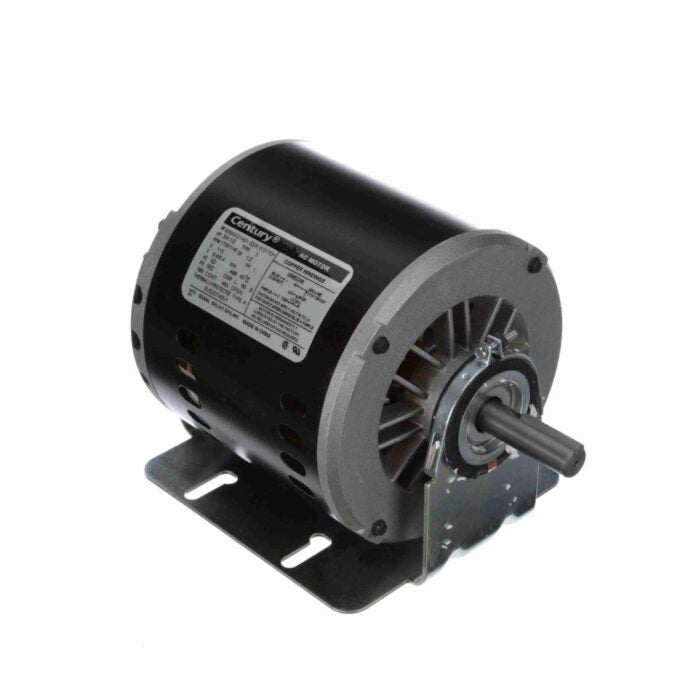

CENTURY MOTORS SVB2074BV1 Evaporative Cooler Motor 3/4-1/3 HP

Product Description

The CENTURY MOTORS SVB2074BV1 is a split phase, two-speed electric motor designed for evaporative cooler applications. It operates at one hundred fifteen volts and is ideal for high-moisture environments. This motor features a 56Z frame and an open drip proof enclosure. It is suitable for residential and commercial evaporative cooler systems, pumps, and other devices.

• Horsepower: 3/4-1/3 HP
• Rotation: Reversible
• Enclosure: Open Drip Proof (ODP)

Product Highlights

The motor is designed for durability and efficiency. It ensures optimal performance in varied applications.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: SVB2074BV1

Technical Specifications

• Horsepower: 3/4-1/3 HP
• Speed: 2-Speed
• RPM: 1800/1200 RPM
• Input Voltage: 115V
• Phase: 1
• Enclosure: Open Drip Proof (ODP)
• Frame Size: 56Z
• Mounting Type: Resilient base, Cradle Base
• Shaft Dimensions: 5/8 x 1 7/8
• Full Load Amps: 11.2/7.0 amps
• Bearings: Sleeve bearings, Ball / Ball
• Service Factor: 1.00
• Electrical Type: Split Phase
• Overload Protector: Auto
• C Dimension: 9.86
• Starting Method: Across The Line
