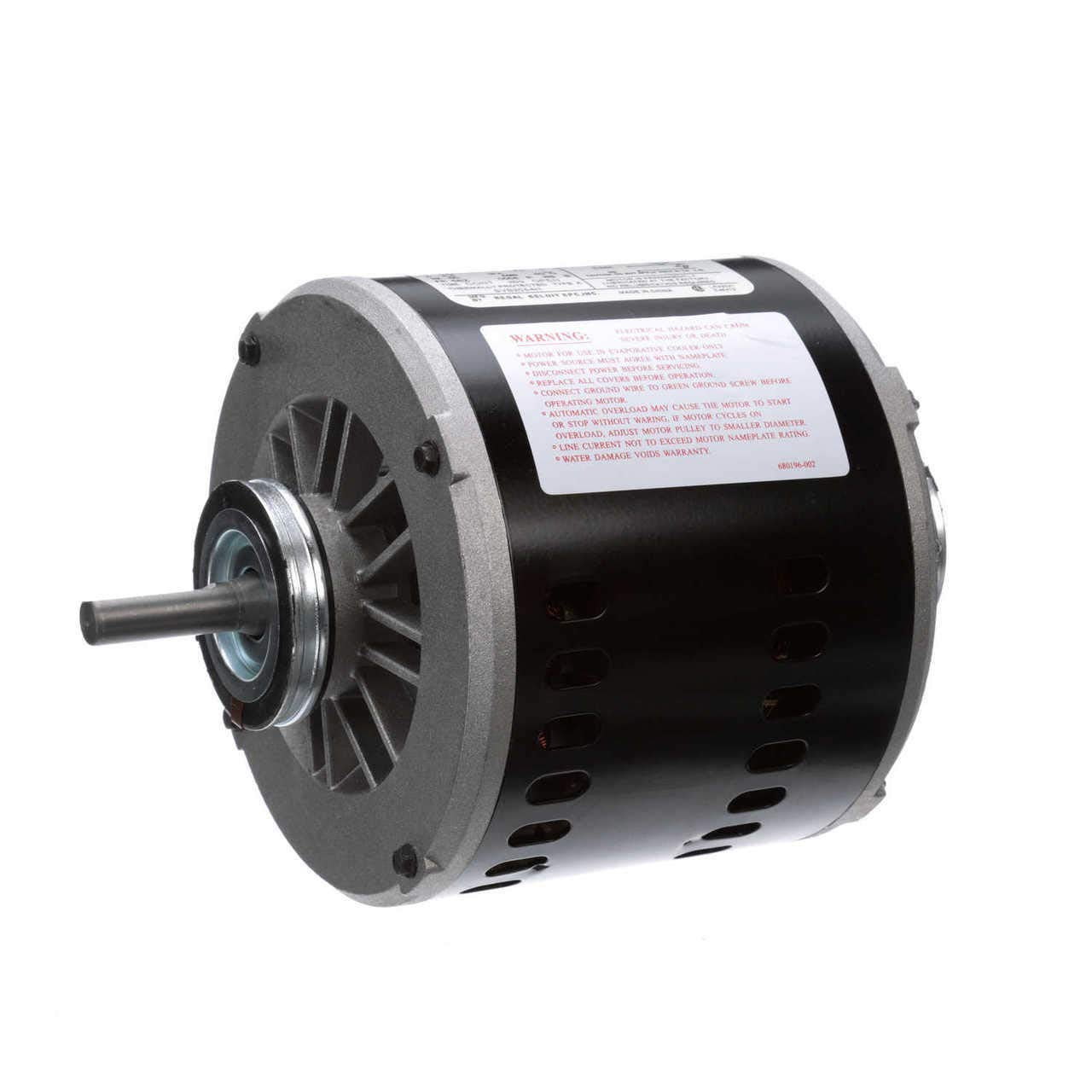

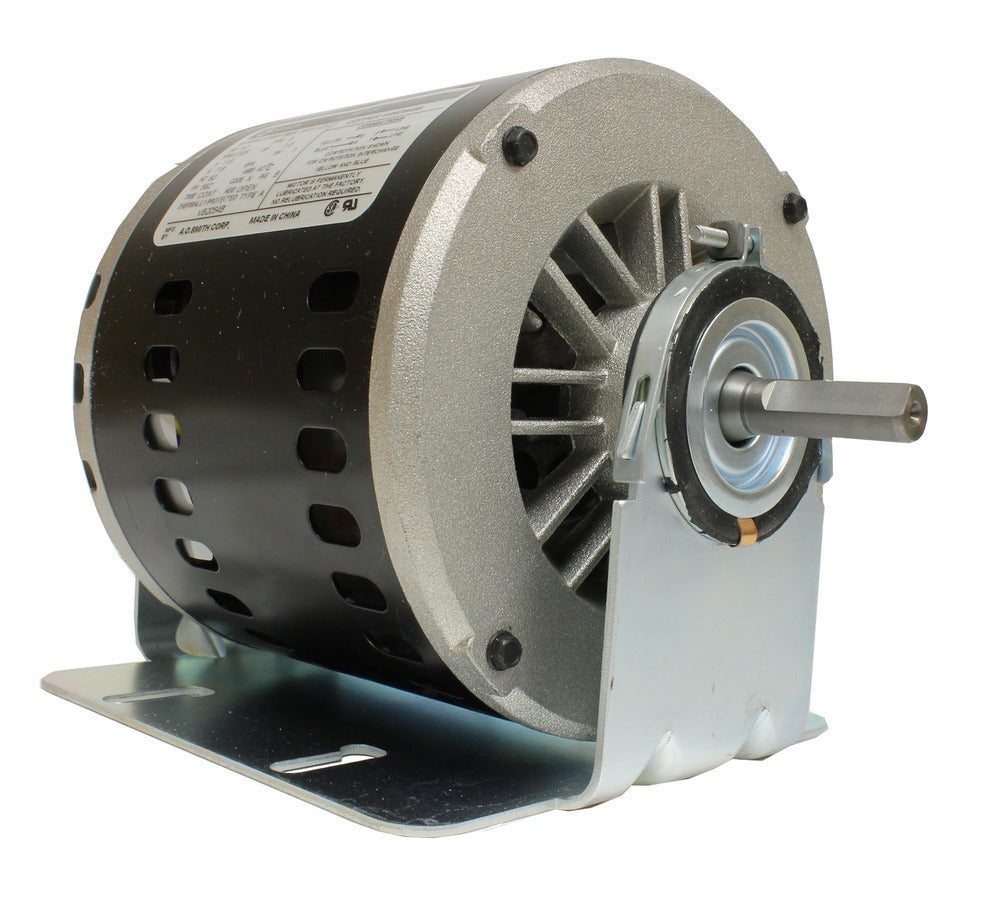

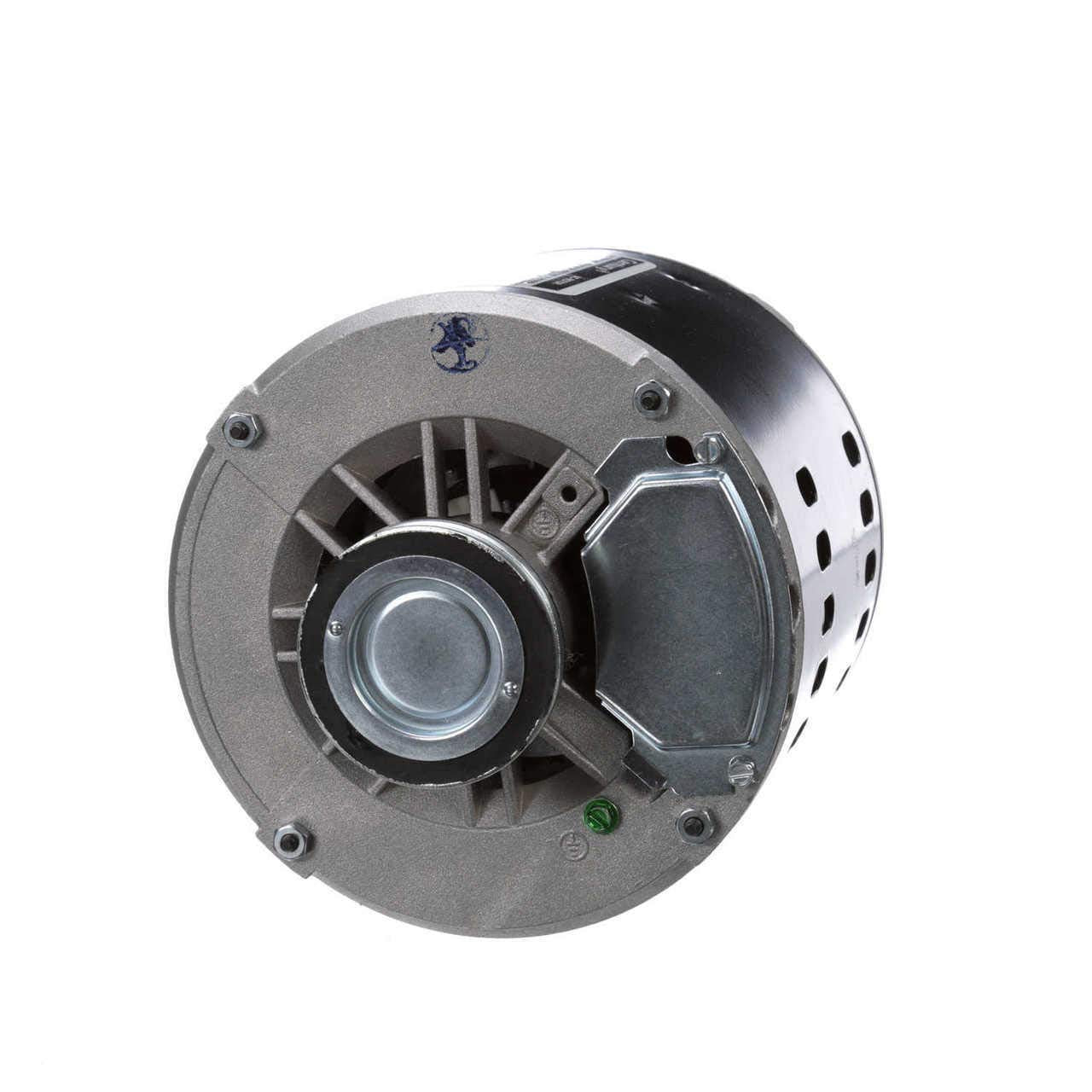

Century SVB2054H Evaporative Cooler Motor 1/2 HP 230V

Product Description

The Century SVB2054H is a reliable evaporative cooler motor. It features a split-phase motor design with a 56Z frame and operates at 230 volts. This motor is ideal for HVAC applications.

• Split-phase motor design
• 230 volts operation
• 1/2 HP with ball bearings

Product Highlights

This motor is suited for evaporative coolers and provides efficient operation with thermal protection. It has a maximum ambient temperature of 40 degrees Celsius and features a resilient ring mounting type.

Product Information

Standard Information

• Brand: Century
• Model: SVB2054H

Technical Specifications

• Motor Design: Split-phase
• Enclosure Design: Open drip-proof
• HP: 1/2, 1/6
• Nameplate RPM: 1725/1140
• Voltage: 230
• Full Load Amps: 4.4/2.0
• Thermal Protection: Auto
• Ambient Temperature: 40 degrees C
• Shaft Rotation: CCWLE
• Shaft Diameter: 1/2 inch
• Shaft Length: 1-1/2 inches
• Overall Length: 9-7/16 inches
