CENTURY MOTORS STG1102A Pool and Spa Motor 1 HP

Product Description

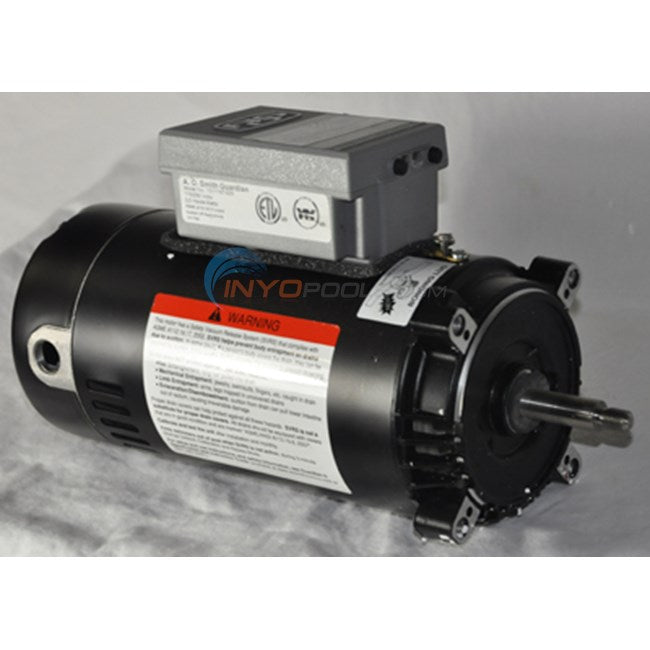

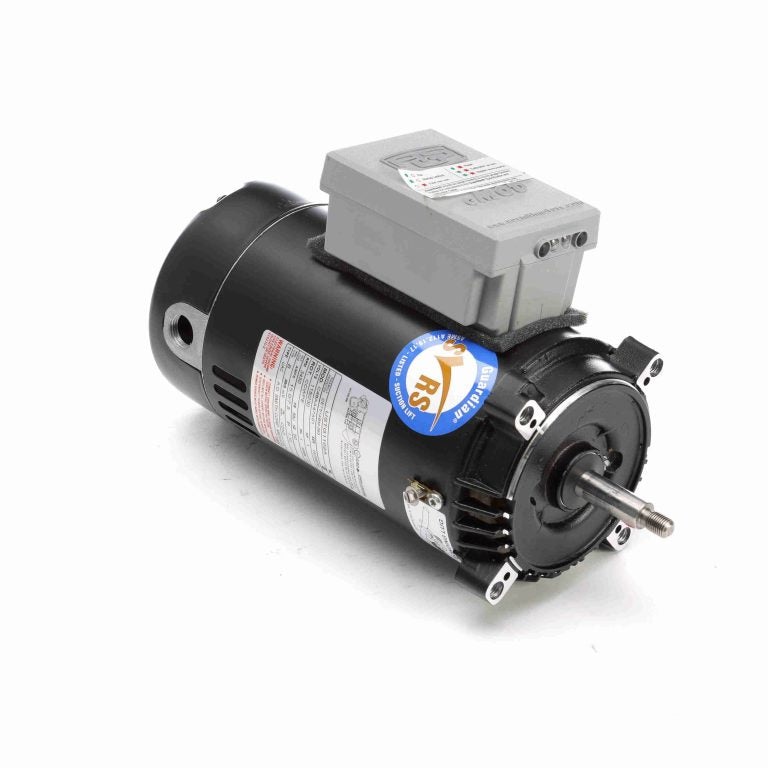

The CENTURY MOTORS STG1102A is a reliable 1 HP motor crafted specifically for pool and spa use. This motor is designed as a single-phase unit that operates efficiently at 115/230 volts. It features a durable 56J frame and a threaded shaft to accommodate various installations.

• Designed for pool and spa applications.
• Features a 56J frame and threaded shaft.
• Equipped with an auto overload protector.

Product Highlights

Use this motor in pools and spas for effective water circulation and filtration. Its construction ensures longevity and optimal performance.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: STG1102A

Technical Specifications

• Horsepower: 1 HP
• Voltage: 115/230 V
• Full Load Amps: 18.6/9.3 FLA
• RPM: 3450 rpm
• Frame: 56J
• Hertz: 60 Hz
• Phase: 1
• Service Factor: 1.5
• Rotation: CCWSE/CWLE
• Shaft Type: Threaded
• Overload Protector: Auto
• Dimension C: 13-1/2 in
• Shaft Length: 12 - 1/8 in
• Length: 16 in
• Width: 11 in
• Height: 9.5 in
