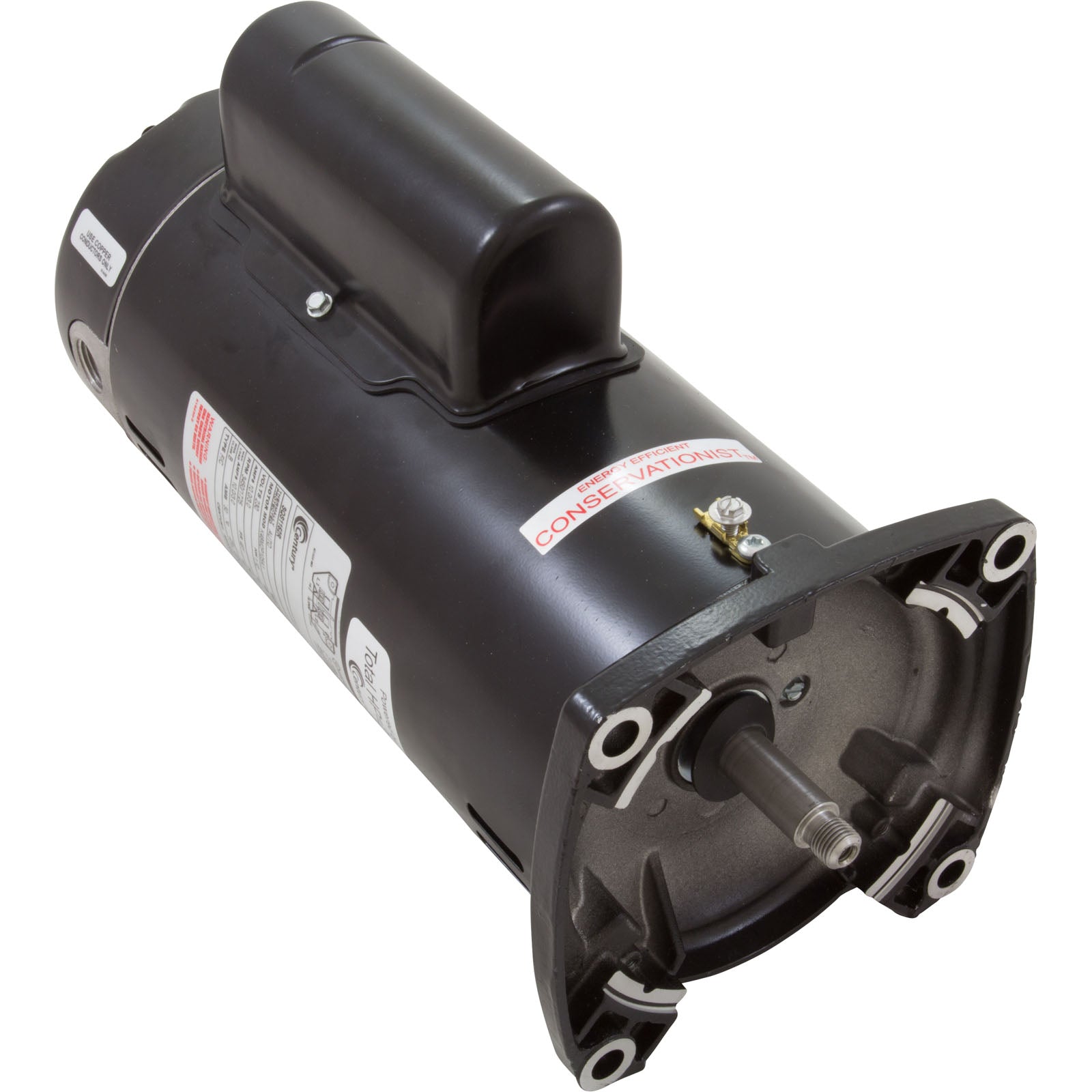

Century SQS1152R 1.5Hp 230V 48Y 10/3 Amp 2.21 Thp Pool Pump Motor

Product Description

The Century SQS1152R motor is a reliable choice for pool and spa applications. With a power capacity of 1.5 horsepower, it ensures efficient operation. The motor operates on 230 volts and features a 48Y frame size.

• Energy Efficient Capacitor Start Low Speed, PSC High Speed
• Open Drip proof
• Class B Insulation

Product Highlights

This motor is thermally protected and includes all copper windings for better efficiency. It also meets the California Energy Commission Appliance Regulations 2008 standards.

Product Information

Standard Information

• Brand: Century
• MPN: SQS1152R

Technical Specifications

• Voltage: 230 V
• Phase: 1
• Frame Size: 48Y
• Horsepower: 1.5/.19 HP
• Rotation: Counterclockwise Pump End
• Max Ambient Temperature: 50 Degrees C
• Enclosure: Open Drip Proof
• Shaft Diameter: 0.625 inches
• Overall Length: 14.26 inches
• Full Load Amps: 10.0/3.0 A
• RPM: 3450/1725 RPM
• Insulation Class: B
• Service Factor: 1.47
• Bearings: Ball
