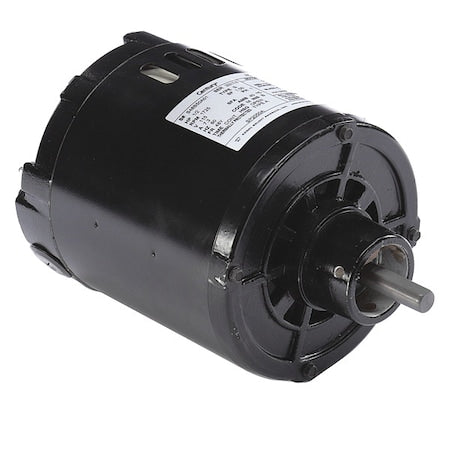

Century SP2050A Sump Pump Motor Split Phase 1/2 HP 115V 48Y

Product Description

The Century SP2050A Sump Pump Motor is designed for efficient and reliable performance. This motor features a split phase electrical type, 1/2 HP, and operates at 115 volts. It's equipped with an automatic reset thermal protector and a float switch and cord set.

• Split Phase electrical type
• 1/2 HP with 115 volts
• Automatic reset thermal protector

Product Highlights

Durable Sump Pump Motor with reversible rotation and rolled steel material. Designed for use in sump pump applications with an open enclosed design.

Product Information

Standard Information

• Brand: Century
• Model: SP2050A
• Use: Sump Pump

Technical Specifications

• Electrical Type: Split Phase
• Horsepower: 1/2
• RPM: 1725
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: Open Enclosed
• Phase: 1
• Voltage: 115
• Rotation: Reversible
• Overload: Automatic
• Material: Rolled Steel
• Amperage: 7.3
• Shaft Type: Flat
• KW: 0.37
• Shaft Diameter: 0.5 inches
• Bearings DE Type: Sleeve
• Bearings ODE Type: Sleeve
• Shaft Extension: 1.19 inches
• Duty: Continuous
• Insulation Class: B
• Frequency: 60 Hz
• Service Factor: 1
• Body Length: 9.8 inches
• Ambient Temperature: 40 degrees C
• Mounting Type: Special
• Country of Origin: Mexico
