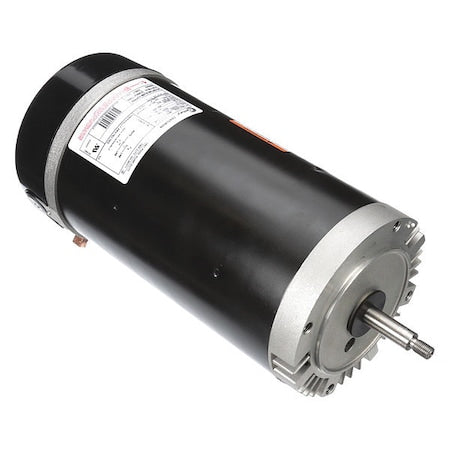

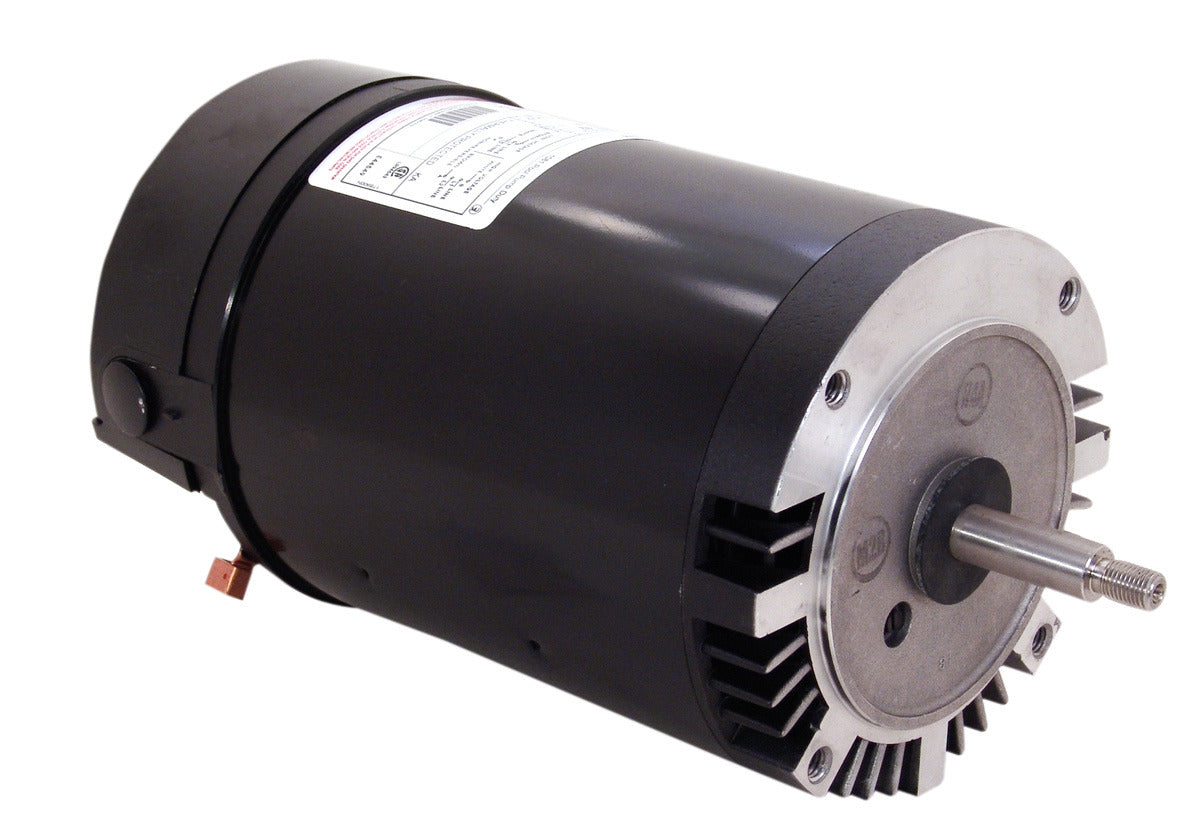

Century SN1302 Pool and Spa Motor 3 HP 56J Frame

Product Description

The Century SN1302 is a 3 HP pool and spa motor designed for reliable performance. This motor features a 56J frame and operates on 208-230V power. It is built with rolled steel for durability and uses a Permanent Split Capacitor (PSC) for energy efficiency.

• 3 HP power rating
• 56J frame size
• 208-230V voltage range

Product Highlights

Ideal for pool and spa applications, with a robust build and energy-efficient design.

Product Information

Standard Information

• Brand: Century
• MPN: SN1302
• Type: Motor > Pump Motor > Pool and Spa Motor

Technical Specifications

• Electrical Type: PSC
• HP: 3
• Frame: 56J
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 208-230V AC
• Rotation: CCWSE
• Overload Protector: Auto
• Material: Rolled Steel
• Mounting: Round
• Amperage: 20.6 - 19.0
• Shaft Type: Single
• Ins. Class: B
• RPM Range: 3,001-3,600
• Nameplate RPM: 3,450
• Motor Bearings: Ball
• Overall Length: 16 1/8 inches
• Shaft Dia.: 5/8 inches
• Length Less Shaft: 13 9/16 inches
• Max. Ambient Temp.: 50 Degrees C
• Motor Shaft Design: Threaded
• Motor Mounting Type: Face
• Motor Frame Material: Steel
• Motor Thermal Protection: Auto
• Motor Shaft Rotation: CCWSE
• Motor Sub Application: Pool and Spa Pump
• Voltage Compatibility: 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/460V AC, 208-240V AC
