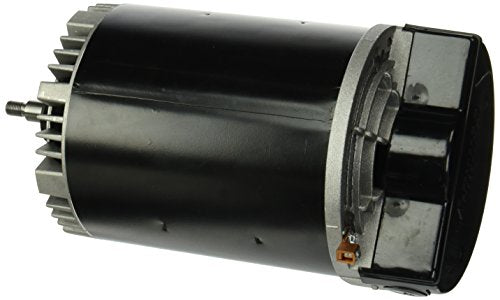

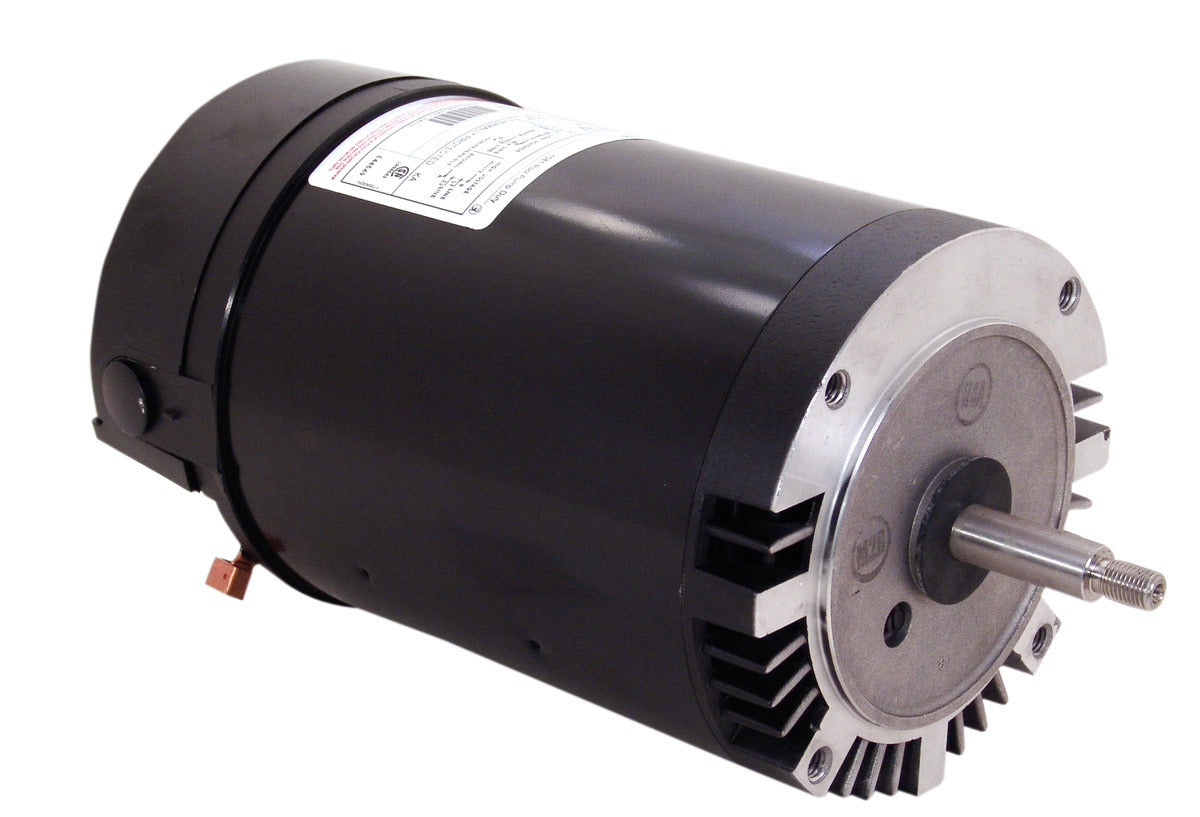

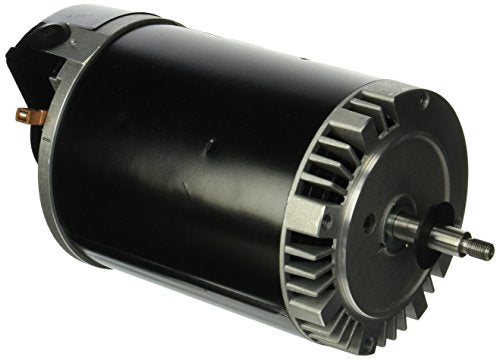

Century SN1072 Pool Pump Motor 3/4 HP 56J Frame 3450 RPM

Product Description

The Century SN1072 is a three-quarter horsepower (HP) pool pump motor designed for reliable operation in pool and spa systems. This motor features a 56J frame and operates at a speed of three thousand four hundred fifty revolutions per minute (RPM). It is compatible with Hayward Northstar and other pool pumps requiring a switchless motor setup.

• Full load amps range from six to eleven
• Class B insulation standard
• Open dripproof enclosure for better cooling

Product Highlights

This motor is built for energy efficiency and low noise while providing excellent durability. It includes a corrosion-resistant e-coated main frame and a threaded shaft for easy installation.

Product Information

Standard Information

• Brand: Century
• Model/MPN: SN1072

Technical Specifications

• HP: 3/4
• Frame Size: 56J
• RPM: 3450
• Voltage: 115/208-230V AC
• Amperage: 6.0-5.5/11.0
• Max Ambient Temperature: 50 degrees C
• Service Factor: 1.85
• Motor Design: Capacitor-Start
• Motor Enclosure Design: Open Dripproof
