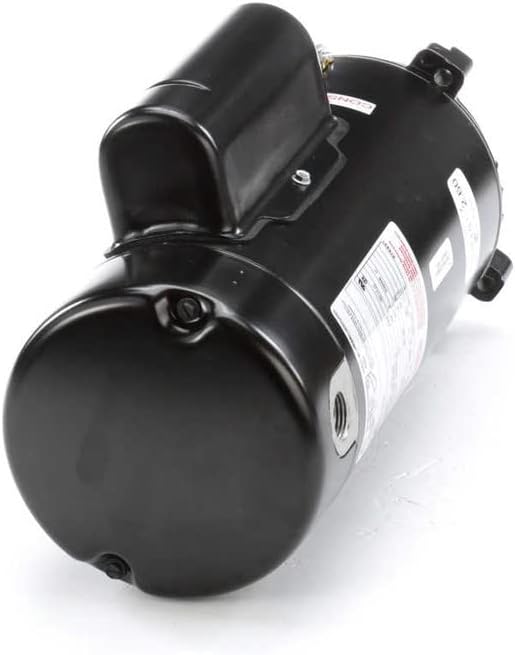

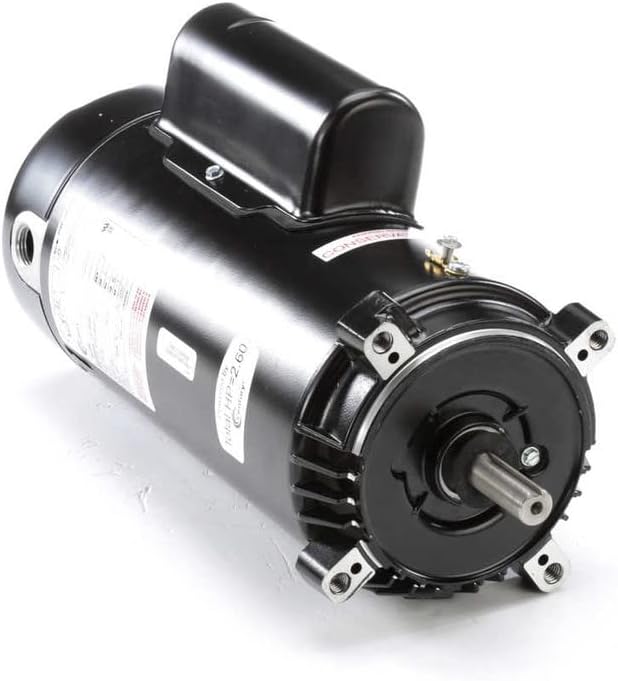

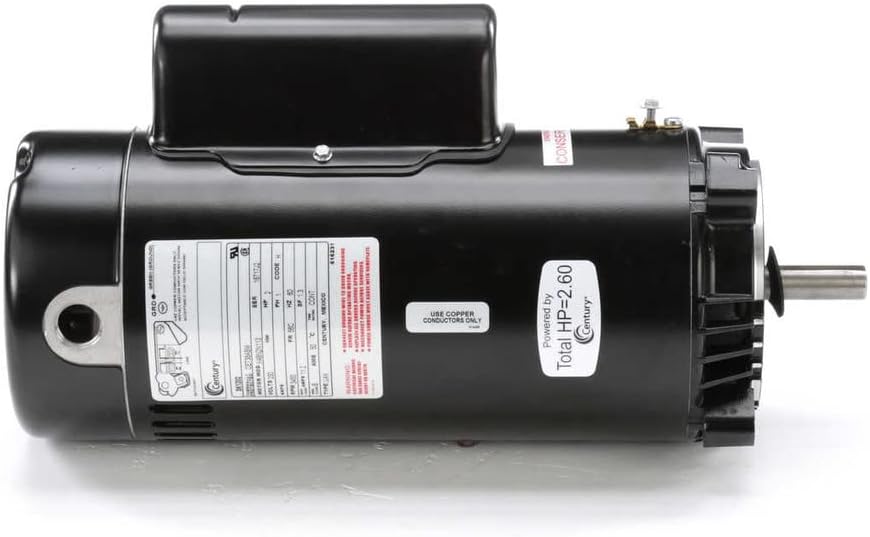

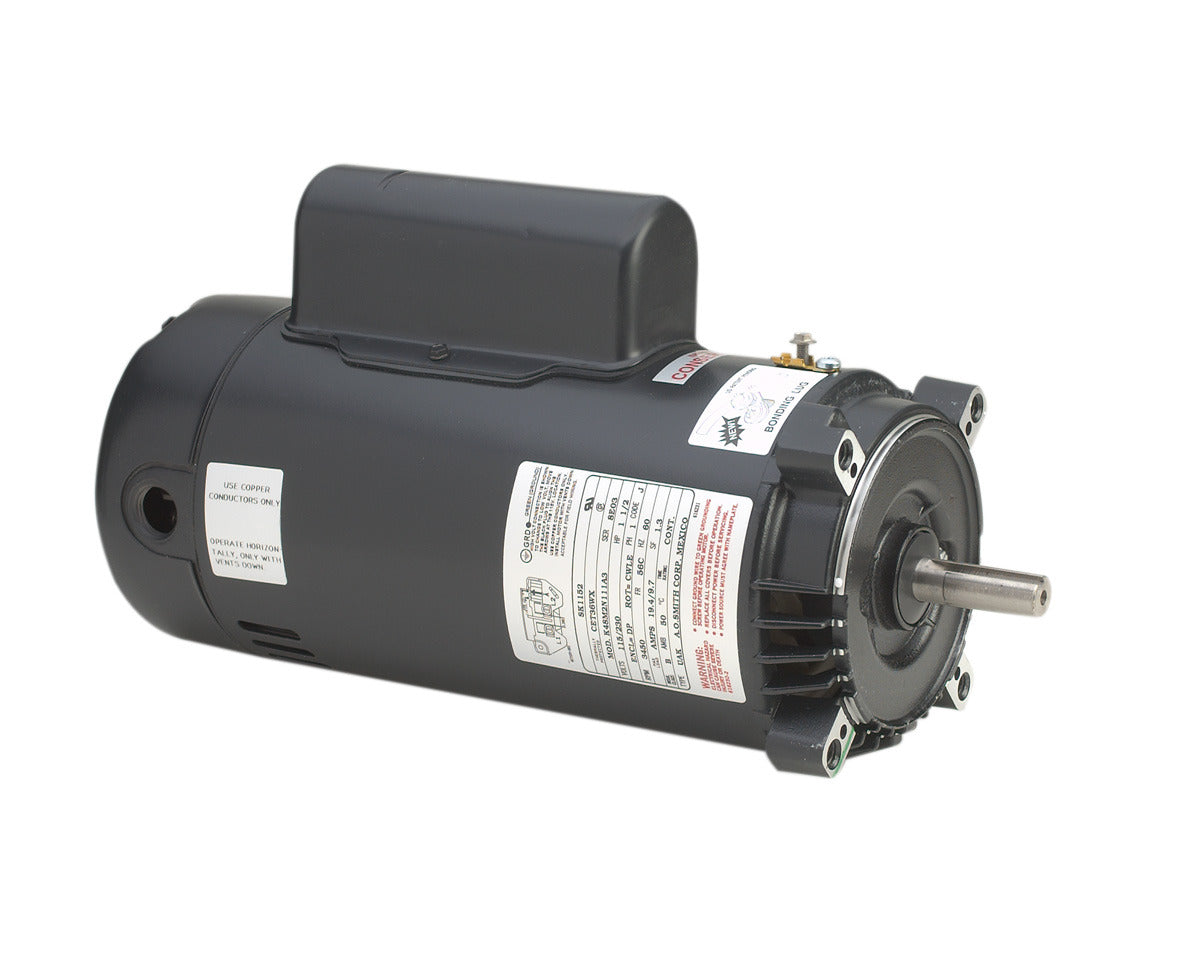

Century SK1202 Pool Pump Motor Capacitor-Start/Run 2 HP 56C Frame

Product Description

The Century SK1202 Pool Pump Motor is designed for reliable performance in pool and spa applications. This 2 HP motor features a capacitor-start/run design and is suitable for use with a 56C frame. It operates at 230 volts and has a continuous duty cycle.

• 2 HP motor for pool and spa applications
• Capacitor-start/run design
• 56C frame with 230 volts operation

Product Highlights

This motor is engineered for durability and efficiency, making it a dependable choice for pool and spa pumps.

Product Information

Standard Information

• Brand: Century
• MPN: SK1202
• Product Type: Pool Pump Motor

Technical Specifications

• Horsepower: 2 HP
• Voltage: 230V
• Frame: 56C
• Full Load Amps: 11.2
• RPM: 3,450
• Enclosure: Open Dripproof
• Motor Rotation: CCWSE
• Insulation Class: B
• Max Ambient Temp: 50 Degrees C
• Motor Bearings: Ball
• Shaft Diameter: 5/8 in
• Shaft Length: 2 1/16 in
• Overall Length: 15 1/8 in
• Body Diameter: 5.7 in
• Motor Frame Material: Steel
• Conduit Box Position: F3
• Service Factor: 1.3
• Motor Thermal Protection: Auto
• Motor Efficiency Group: High Efficient
• Motor Mounting Position: Horizontal
• Country of Origin: Mexico
