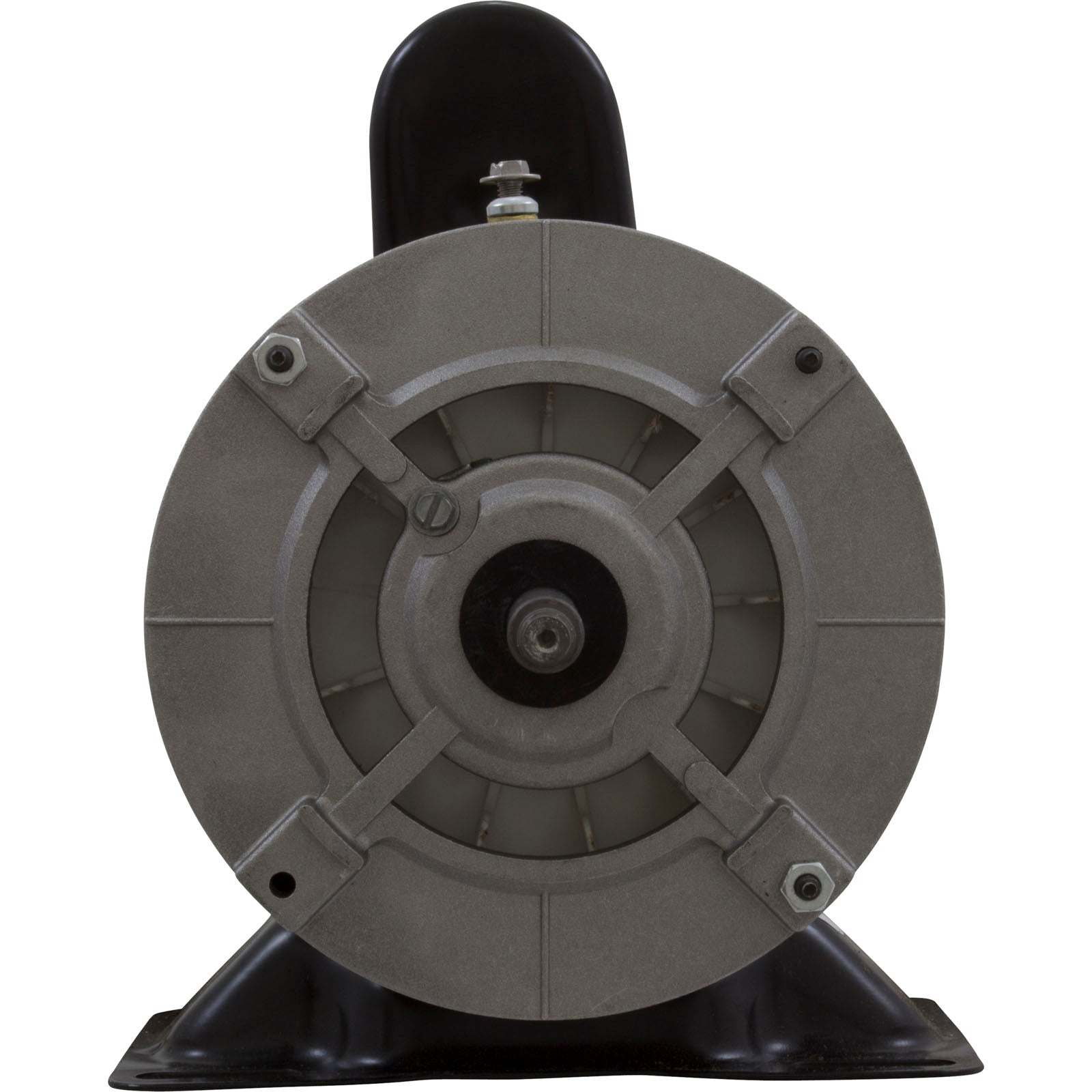

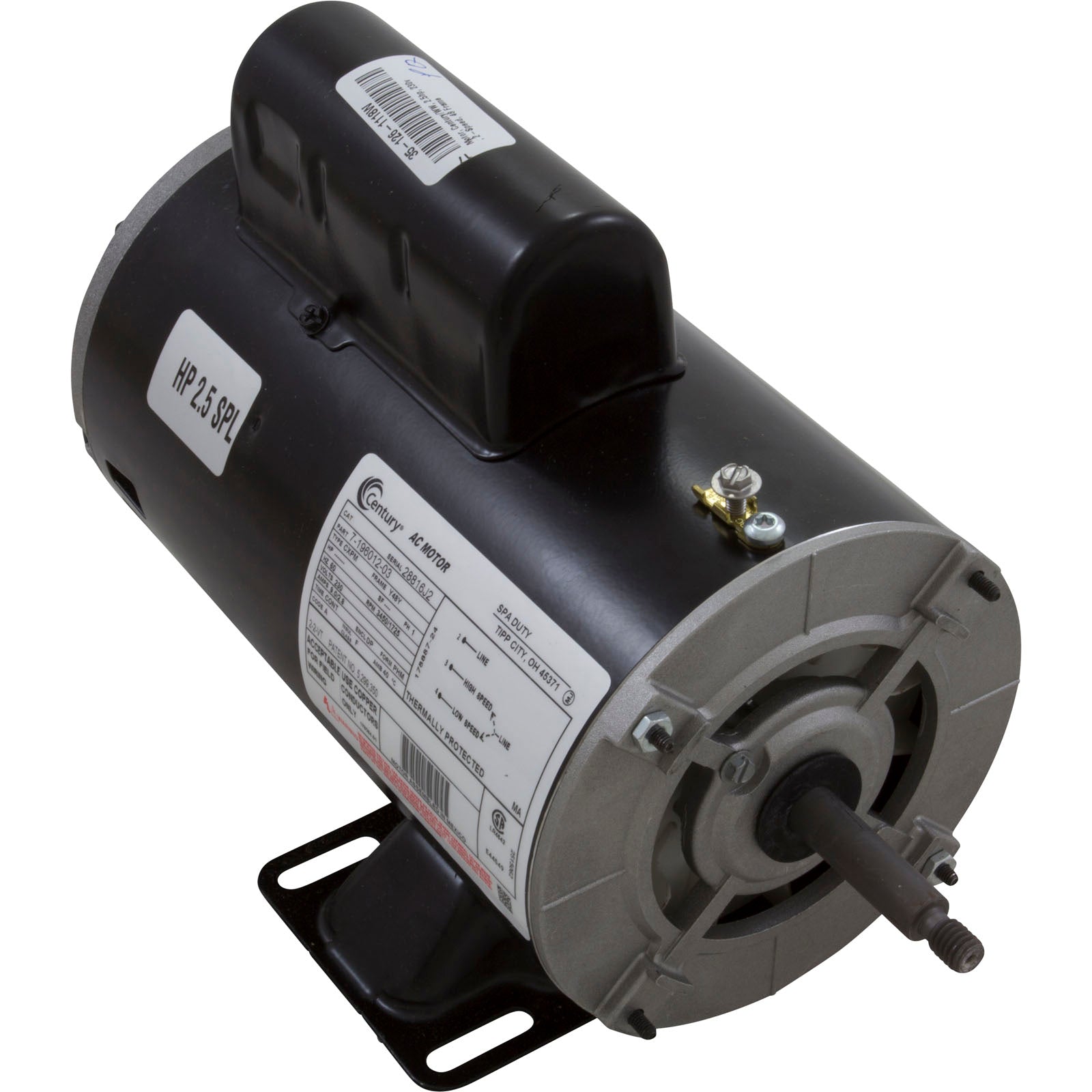

Century SDS1252 Pool and Spa Motor 2.5HP 230V 2-Speed 48 Frame

Product Description

The Century SDS1252 is a robust pool and spa motor with a 2.5 horsepower, operating on 230 volts. This motor features a 2-speed functionality and a 48 frame design, making it suitable for a variety of pool and spa applications.

• 2.5 horsepower motor
• 230 volts, 2-speed operation
• 48 frame design

Product Highlights

This motor is designed for efficiency and reliability, providing consistent performance for pool and spa systems. The Century SDS1252 comes with a warranty period of one year from the date of manufacture ensuring peace of mind.

Product Information

Standard Information

• Brand: Century
• MPN: SDS1252

Technical Specifications

• Electrical Type: PSC
• Horsepower: 2 1/2
• Frame: 56Z
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 230
• Rotation: CCWSE
• Overload: Auto
• Material: Rolled Steel
• Mounting: Extended Studs
• Amperage: 10.7/3.0
• Shaft Type: Single
• Body Diameter: 5.7 inches
• Height: 8 9/16 inches
• Overall Length: 13 5/16 inches
• Weight: 33 lb
• Finish: Black
• RPM Range: 3,001-3,600
• Motor Enclosure Design: Open Dripproof
• Motor Frame Material: Steel
• Shaft Length: 2 5/16 inches
• Shaft Diameter: 1/2 inch
• Max. Ambient Temp: 50 Degrees C
• Motor Mounting Type: Rigid Base
• Conduit Box Position: F3
• Motor Shaft Rotation: CCWSE
