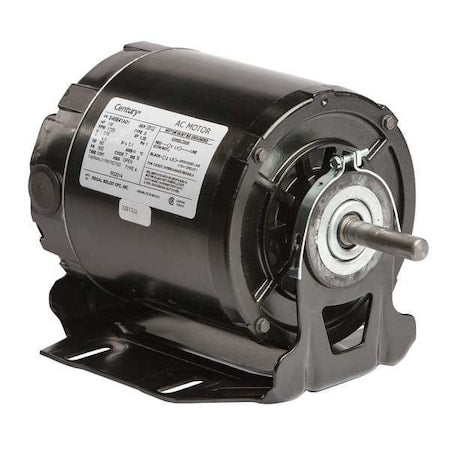

Century RS2014 Split-Phase Belt Drive Motor 1/6 HP 56Z Frame 115V 1,725 RPM

Product Description

The Century RS2014 Split-Phase Belt Drive Motor is a reliable and durable solution for HVAC systems and belt drive applications. This single-phase motor operates at 115V AC and offers 1/6 HP with a nameplate RPM of 1,725.

• 1/6 HP motor power
• Operates on 115V AC
• Split-phase motor design

Product Highlights

This motor is perfect for HVAC systems and belt drive applications. Its split-phase design ensures stable performance, and it comes equipped with thermal protection to prevent overheating. The 56Z frame and steel construction provide added durability.

Product Information

Standard Information

• Brand: Century
• MPN: RS2014
• Application: HVAC/R

Technical Specifications

• HP: 1/6
• Hz: 60
• Duty: Continuous
• Frame: 56Z
• Phase: Single
• Voltage: 115V AC
• Body Dia.: 5 5/8 in
• Footnotes: 295
• RPM Range: 1,701-1,800
• Standards: CSA
• Ins. Class: B
• Shaft Dia.: 5/8 in
• Shaft Length: 2 in
• Nameplate RPM: 1,725
• No. of Speeds: 1
• Usable @ 200V: No
• Usable @ 208V: No
• Frame Material: Rolled steel
• Full Load Amps: 4.9
• Motor Bearings: Sleeve
• Overall Length: 9 5/8 in
• Length Less Shaft: 7 5/8 in
• Max. Ambient Temp.: 40 Degrees C
• Nominal Efficiency: 41%
• Motor Mounting Type: Cradle Base
• Resilient Ring Dia.: 2 1/2 in
• Ring to Ring Center: 6 15/16 in
• Motor Service Factor: 1.35
• Motor Shaft Rotation: CW/CCW
• Motor Sub Application: Belt Drive Fan/Blower
• Voltage Compatibility: 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
• Motor Enclosure Design: Open Dripproof
• Motor Mounting Position: All Angle
• Motor Thermal Protection: Auto
• Country of Origin (subject to change): Mexico
