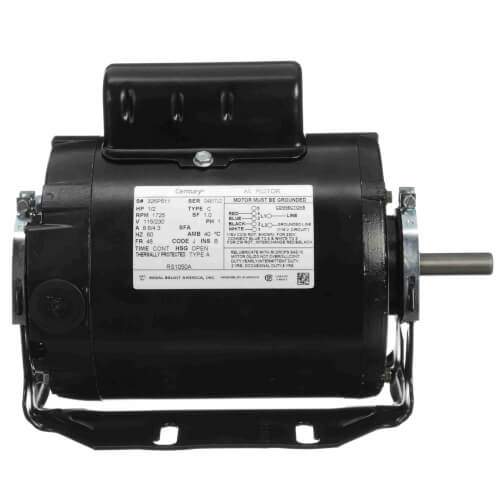

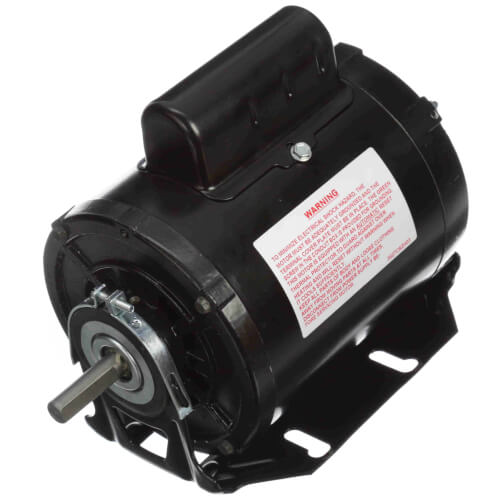

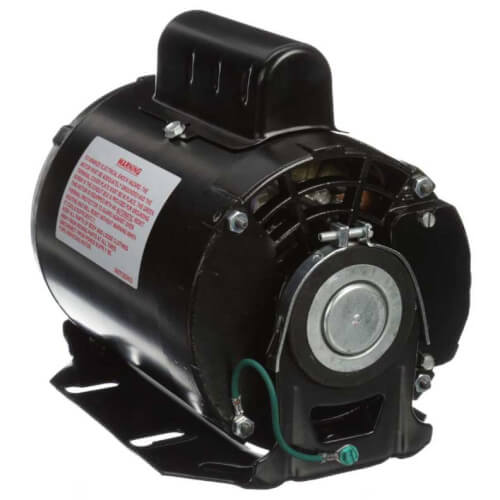

Century RS1050A 5-5/8 Capacitor Start Resilient Base Motor 115/230V 1725 RPM 1/2 HP

Product Description

The Century RS1050A is a 5-5/8 capacitor start resilient base motor designed for HVAC systems. This motor offers reliable performance with a 1/2 HP rating and operates at 1725 RPM.

• High start torque
• Open construction
• Reversible rotation

Product Highlights

This motor features a sturdy 48 frame and operates on 115/230 volts with automatic overload protection. It is suitable for continuous duty applications and is designed for various HVAC and industrial uses.

Product Information

Standard Information

• Brand: Century
• MPN: RS1050A

Technical Specifications

• Horse Power: 1/2
• Speed: 1725 RPM
• Voltage: 115/230V
• Amperage: 4.3, 8.6
• Frame: 48
• Bearing Type: Sleeve
• Mount: Resilient Base
• Type: Capacitor Start, Induction Run
• Insulation Class: B
• Ambient Temperature: 40 degrees C
• Hertz: 60 Hz
• Phase: 1
• Poles: 4
• Open D.P. Construction: Yes
• Overload Protection: Automatic
• Rotation: Reversible
