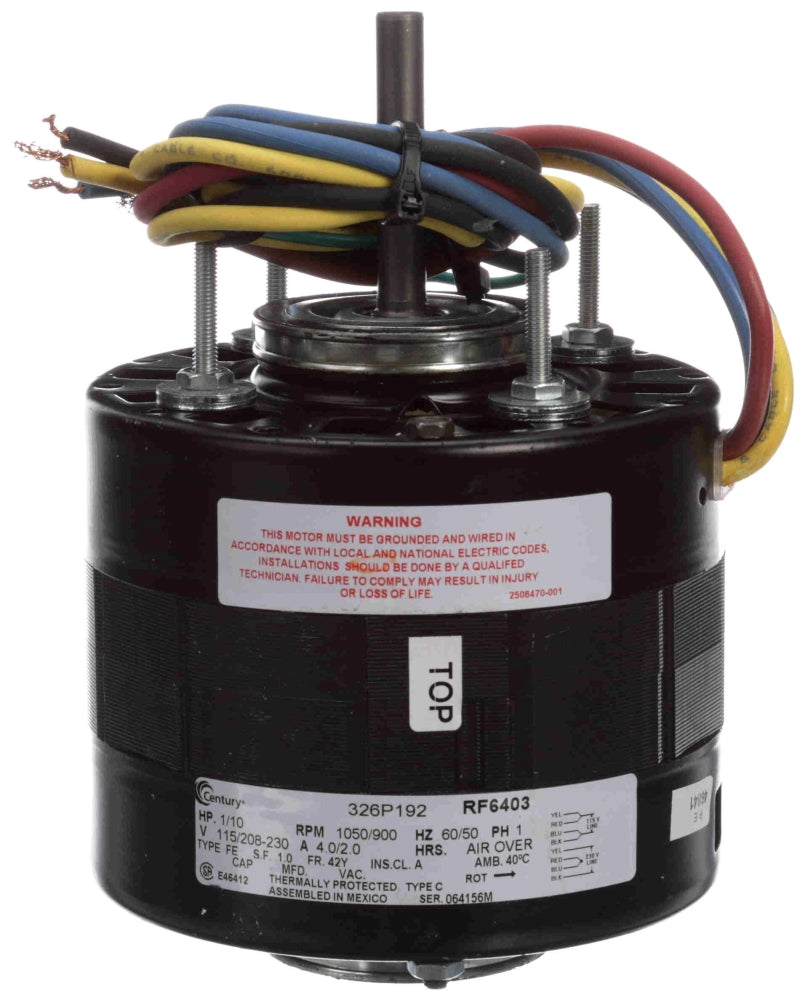

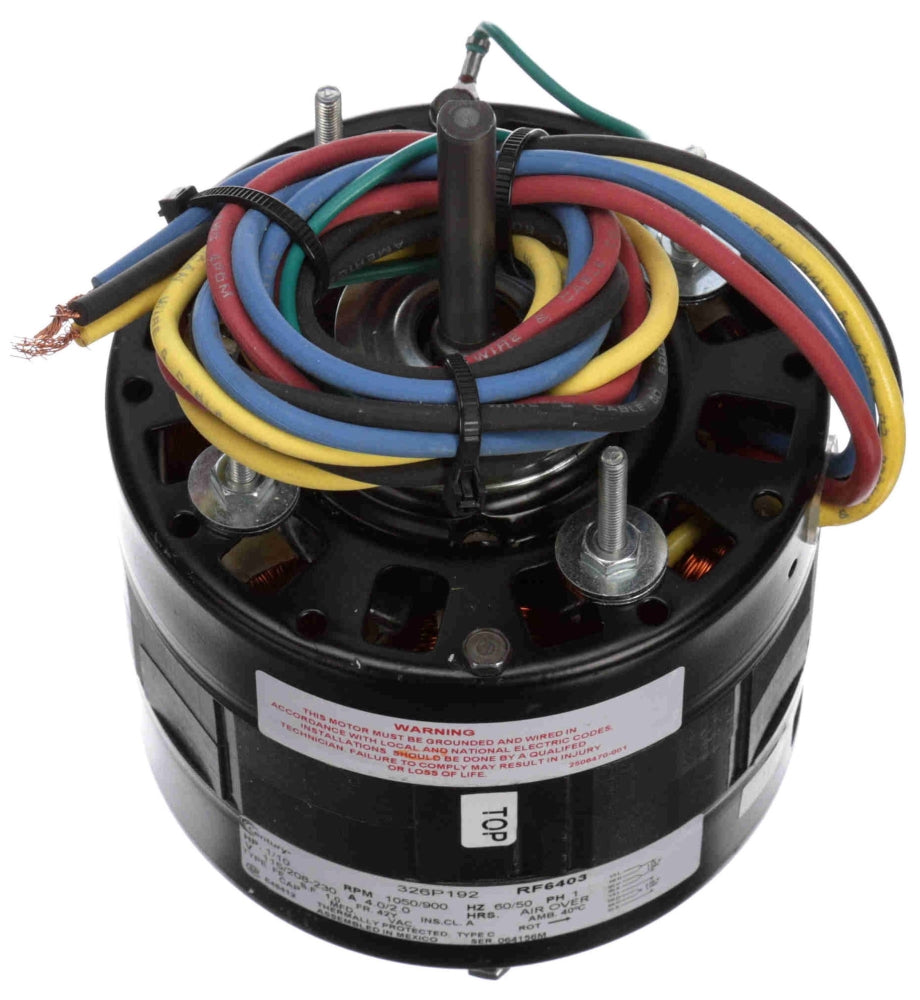

Regal Rexnord RF6403 Refrigeration Motor 1/10 HP 115/208-230 VAC 50/60 Hz 42Y

Product Description

The Regal Rexnord RF6403 is a refrigeration motor from Century Motors designed for various HVAC applications. This 1/10 HP motor operates at a voltage range of 115/208 to 230 VAC and 50/60 Hz frequency, making it versatile for different setups.

• 1/10 HP power rating
• 115/208 to 230 VAC voltage rating
• 1050 RPM speed rating

Product Highlights

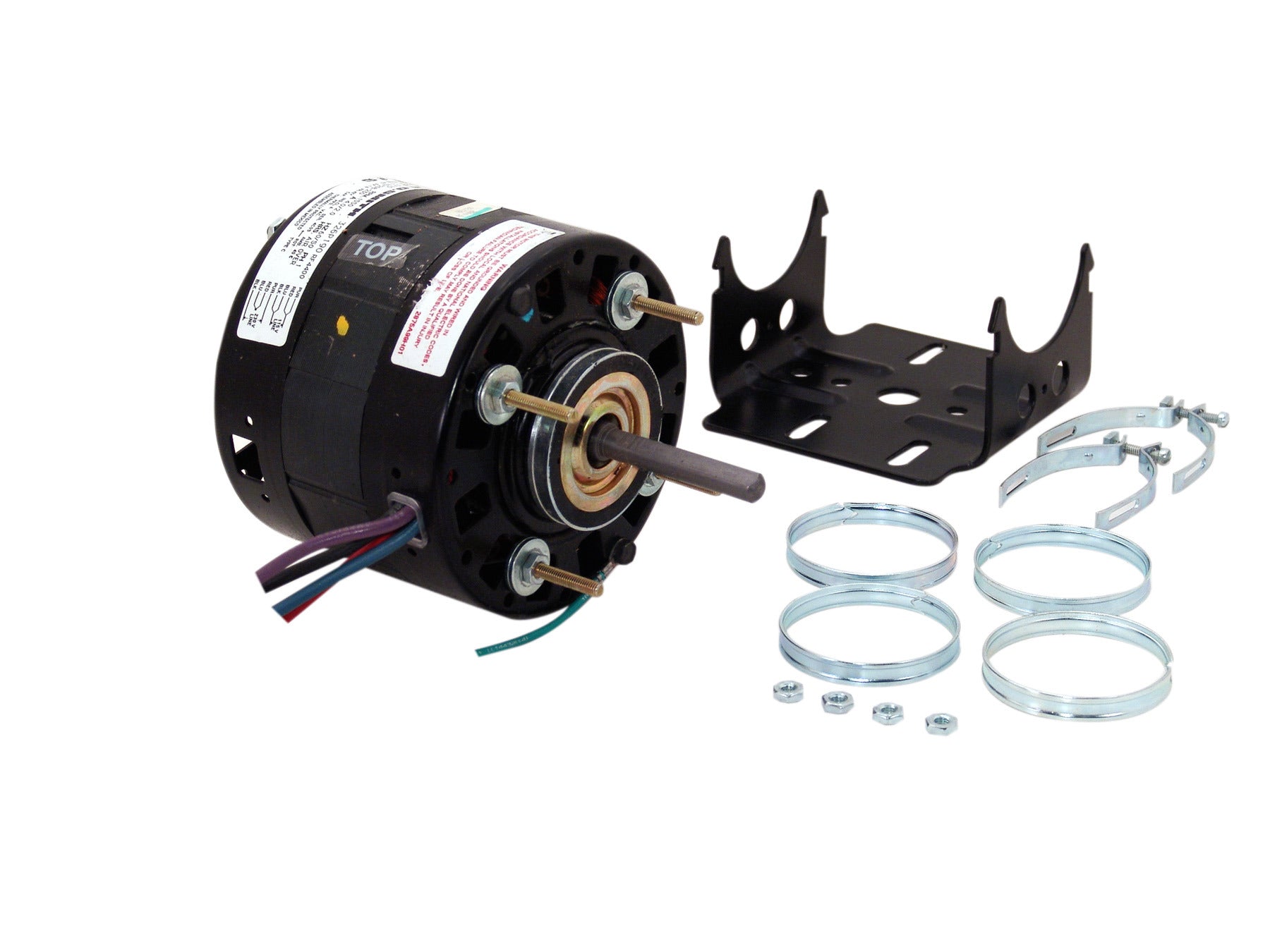

Built with robust materials for durability, the RF6403 includes features like automatic thermal protection and a resilient ring mount. It is mechanically reversible, adding to its flexibility for installation in different systems.

Product Information

Standard Information

• Brand: Century Motors
• MPN: RF6403
• UPC: 0786674030627
• Weight: 12 pounds
• Dimensions: 5 inches diameter x 7.17 inches length

Technical Specifications

• Voltage Rating: 115/208 to 230 Volt AC 1-Phase
• Frequency Rating: 50/60 Hertz
• Speed Rating: 1050 RPM
• Power Rating: 1/10 HP
• NEMA Frame Size: 42Y
• Insulation Class: A
• Frame Material: Rolled Steel
• Mounting: Resilient Ring, Extended Stud
• Bearing Type: Sleeve
• Rotation: Counter Clockwise Shaft End (CCWSE)
• Service Factor: 1
• Number of Poles: 6
• Shaft Diameter: 0.375 inches
• Shaft Extension: 2.250 inches
• Ambient Temperature Rating: 40 Degrees Celsius
• Approval: UL, CSA
