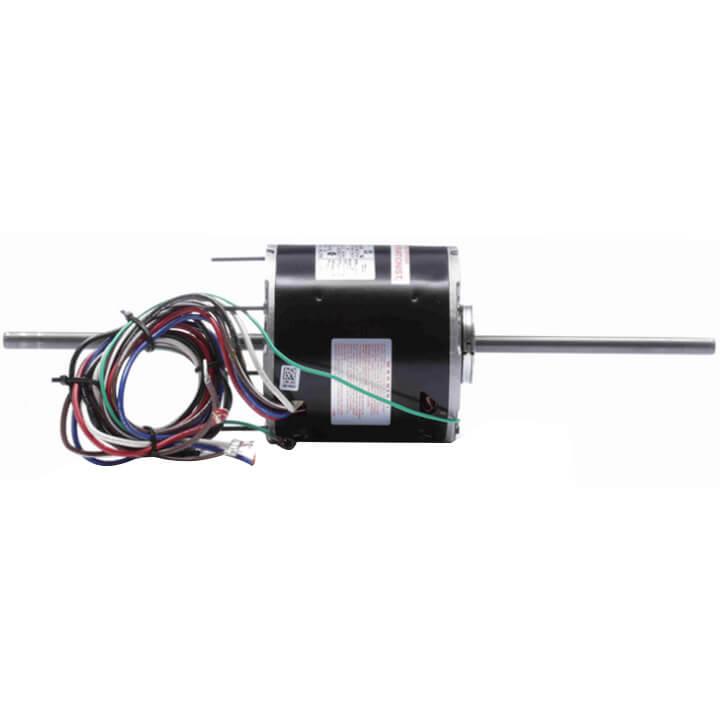

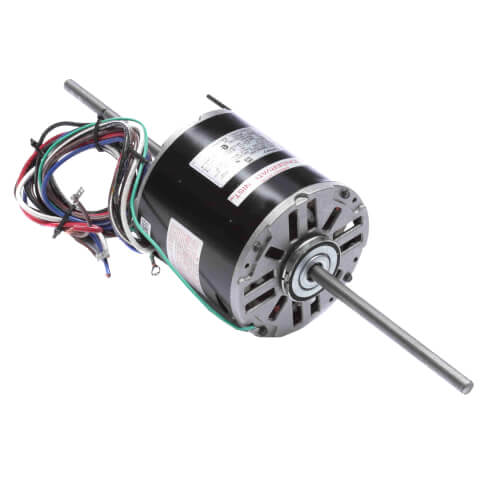

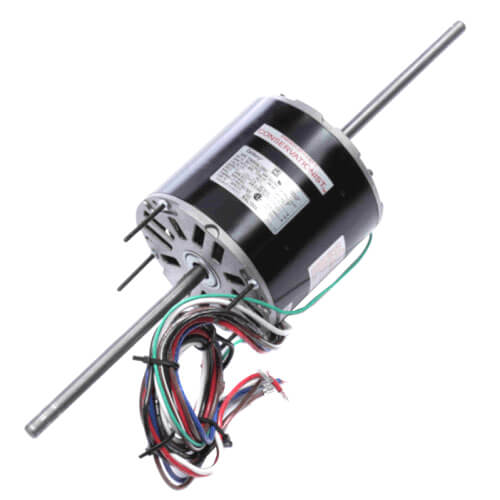

Regal Rexnord - Century Motors RAL1056 1/2HP 115V 1075RPM 3Sp 48Y Mtr

Product Description

The Regal Rexnord - Century Motors RAL1056 is a fan coil and air conditioner motor designed for effective cooling and heating applications. It operates on 115 volts with a power capacity of one-half horsepower. This motor features a speed of 1075 RPM and is suitable for various ventilation systems. Its semi-enclosed design and sleeve bearing construction ensure durability for industrial tasks.

• Voltage: 115V
• Speed Range: 1075 RPM
• Amperage: 5.2A

Product Highlights

This motor is well-suited for use in HVAC systems, making it an essential component in both residential and commercial settings. Its reliable performance and efficient design provide steady airflow while reducing energy consumption.

Product Information

Standard Information

• MPN: RAL1056
• Brand: Regal Rexnord - Century Motors

Technical Specifications

• Horsepower: 1/2 HP
• Diameter: 5-5/8 inches
• Frame Size: 48Y
• Enclosure Type: Semi-Enclosed
• Phase: Single
• Rotation: CCWLE
• Weight: 20 lbs
• Operating Temperature: Maximum 104°F
