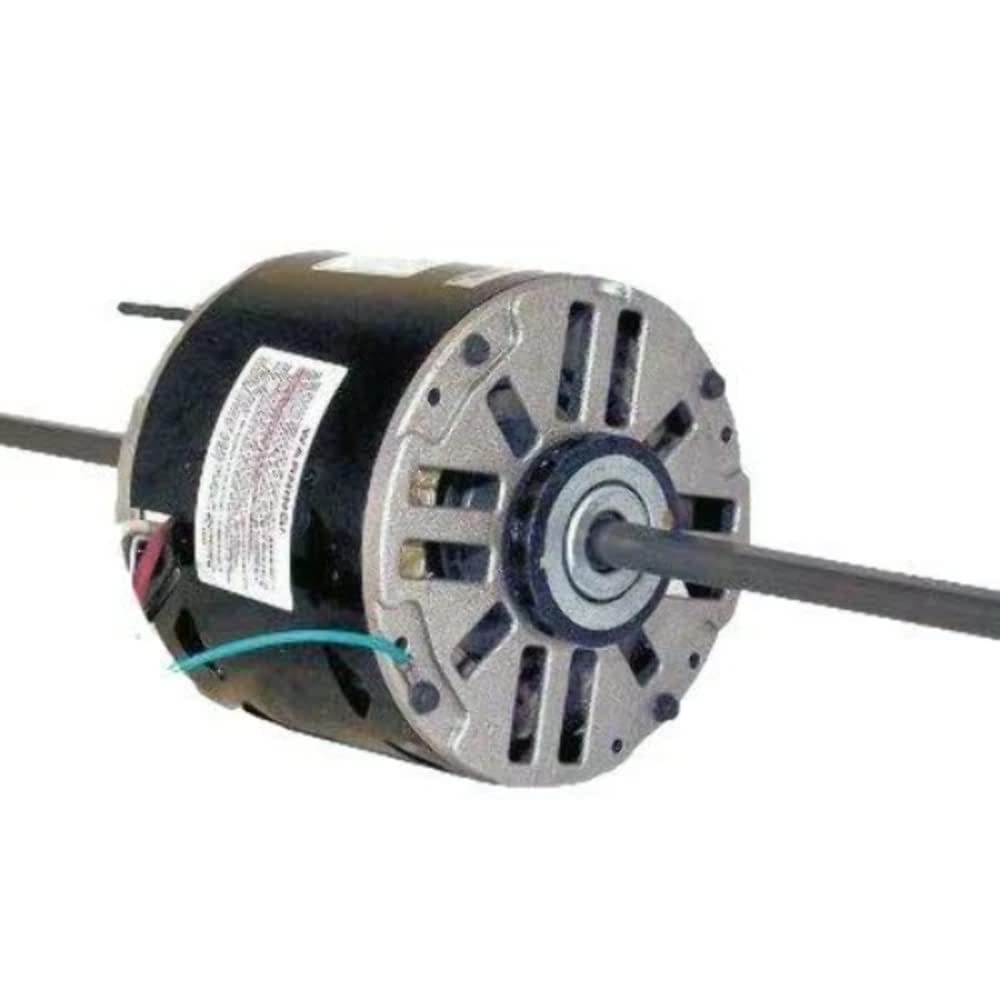

Century RAL1016 Double Shaft Fan and Blower Motor 115V 1075 RPM 1/6 HP

Product Description

The Century RAL1016 Double Shaft Fan and Blower Motor is a reliable solution for HVAC and other industrial applications. With a 115V power rating and a rotational speed of 1075 RPM, this motor is built to deliver consistent performance. The RAL1016 features a 1/6 HP capability, making it suitable for a variety of uses.

• Voltage: 115V
• Speed: 1075 RPM
• Horsepower: 1/6 HP

Product Highlights

The Century RAL1016 motor is designed for efficiency and reliability. It includes a permanent split capacitor and sleeve bearings for long-lasting use. The motor operates at a frequency of 60 Hz and offers automatic overload protection.

Product Information

Standard Information

• Brand: Century
• MPN: RAL1016

Technical Specifications

• Voltage: 115V
• Speed: 1075 RPM
• Horsepower: 1/6 HP
• Frame: 48Y
• Enclosure: Semi-Enclosed
• Phase: Single
• Rotation: CCWLE
• Amperage: 2.2
• Shaft Diameter: 0.500 inches
• Shaft Extension: 8.100 x 0.500 x 8.000
• Material: Rolled Steel
• Insulation Class: A
• Orientation: Horizontal
• Overload Protection: Automatic
• Mounting Type: Resilient Ring / Extended Studs
• Bearings Type: Sleeve
• Max Ambient Temperature: 40 degrees C
• Duty: Air Over
