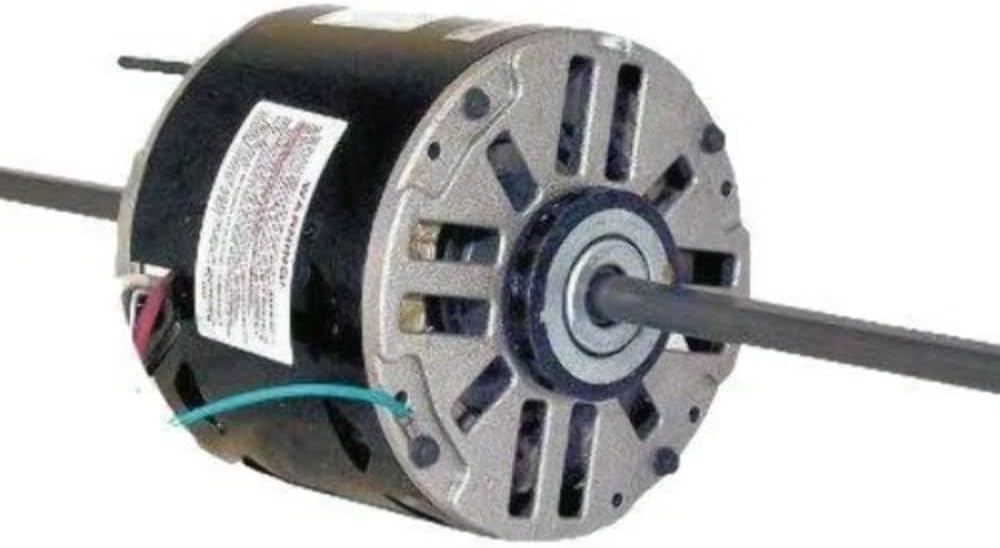

Century RAL1006 Fan Coil / Air Conditioner Motor 1/8 HP 115V 1075 RPM

Product Description

The Century RAL1006 is a fan coil and air conditioner motor designed for reliable performance. With a frame diameter of five point six inches and a power rating of one eighth horsepower, this motor operates at one thousand seventy-five revolutions per minute. It is designed to work with a voltage of one hundred fifteen volts and has a two amp current draw.

• Power: 1/8 HP
• Speed: 1075 RPM
• Voltage: 115V

Product Highlights

This motor features a permanent split capacitor design, which enhances efficiency. It is suitable for use in both residential and commercial applications, particularly in HVAC systems where reliable airflow is critical. The installation is straightforward with resilient ring mounting.

Product Information

Standard Information

• Manufacturer: Century Electric/AO Smith Motors Co
• Model Number: RAL1006

Technical Specifications

• Frame Size: 48Y
• Amperage: 2.0 A
• Phase: Single
• Enclosure Type: Semi-Enclosed
• Cooling Type: Air Over
• Overload Protection: Automatic
• Mounting Type: Ring/Stud
• Shaft Diameter: 0.5 in
