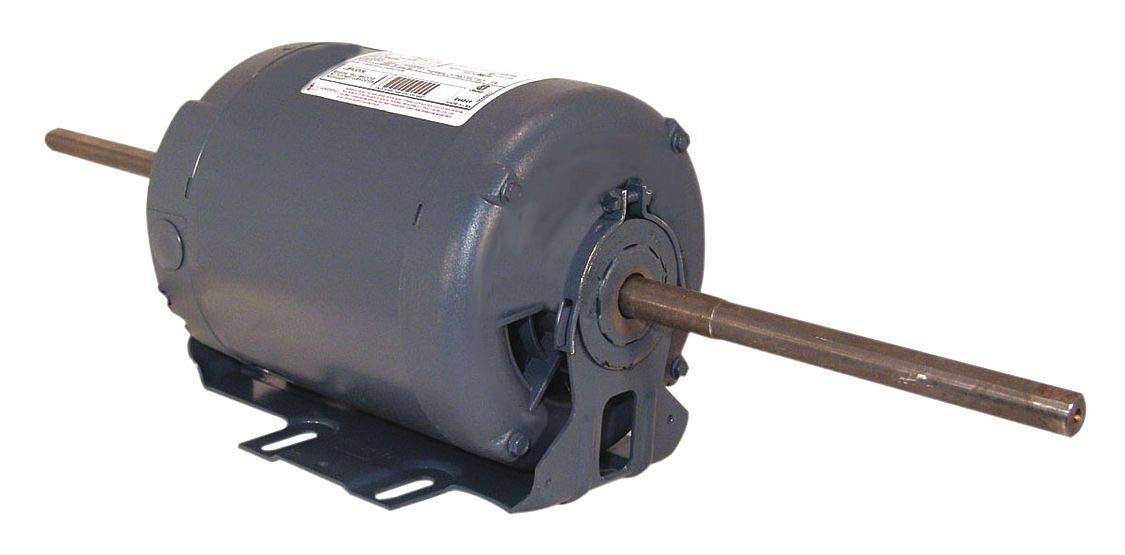

Century RA1176WB Fan and Blower Motor 3/4 HP 200-230 Volt 1075 RPM

Product Description

The Century RA1176WB Fan and Blower Motor is designed for HVAC systems. This motor, with MPN RA1176WB, features a 3/4 HP power rating and operates at 200-230 volts. With a rotational speed of 1075 RPM, it is ideal for various air conditioning and ventilation applications.

• Permanent Split Capacitor
• Open Dripproof Enclosure
• 200-230 Volt

Product Highlights

This motor is essential for efficient air conditioning unit operation. Designed for easy installation, it features ball bearings, a cushion base mounting, and a rolled steel body.

Product Information

Standard Information

• Brand: Century
• MPN: RA1176WB
• Applications: HVAC systems

Technical Specifications

• Electrical Type: PSC
• HP: 3/4
• KW: 0.56
• RPM: 1075
• Frame: 56Z
• Diameter: 6.5 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 200-230
• Rotation: REV
• Material: Rolled Steel
• Bearings Type: Ball / Ball
• Mounting Type: Cushion Base
• Amperage: 4.4-4.2
• Shaft Type: Flat
• Shaft Extension: 6.810 inches
• Shaft Diameter: 0.625 inches
• Insulation Class: B
• Service Factor: 1
• Duty: Continuous
• Number of Poles: 6
