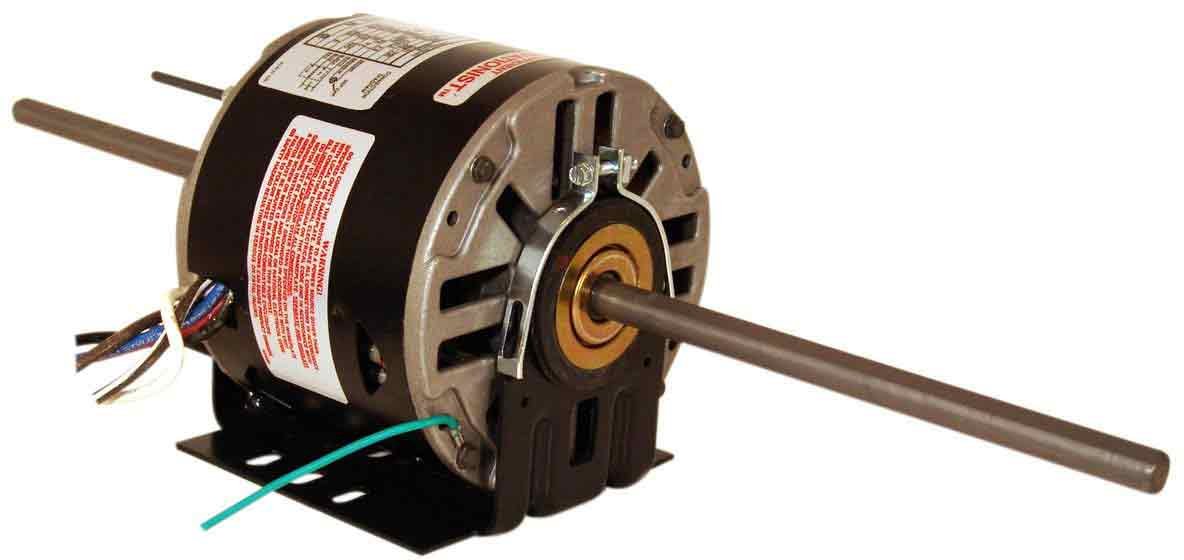

Century RA1056WB Fan Coil with 5.6-Inch Frame Diameter, 1/2-HP, 1075-RPM, 208-230-Volt, 2.7-Amp

Product Description

The Century RA1056WB Fan Coil is a reliable option for HVAC systems, offering efficient operation with a 5.6-inch frame diameter. The motor provides 1/2 horsepower and operates at 1075 RPM with a voltage range of 208-230 volts. This fan coil is ideal for various air conditioner motor applications.

• 5.6-inch frame diameter
• 1/2 horsepower
• 1075 RPM

Product Highlights

The Century RA1056WB is designed for efficient air conditioning and HVAC systems. With a sturdy rolled steel material and semi-enclosed structure, it ensures durability and long-lasting performance.

Product Information

Standard Information

• Brand: Century
• Model: RA1056WB
• Quantity: 1
• Weight: 20.35084722 lbs
• UPC: 786674030207
• Country of Origin: Mexico

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/2 HP
• Power: 0.37 kW
• Speed: 1075 RPM
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: Semi-Enclosed
• Phase: Single
• Voltage: 208-230 Volts
• Rotation: CCWLE
• Overload Protection: Auto
• Material: Rolled Steel
• Mounting: Resilient Base
• Orientation: Horizontal
• Amperage: 2.7 Amps
• Shaft Type: Flat
• Shaft Extension: 8.600 x 0.500 x 8.000 inches
