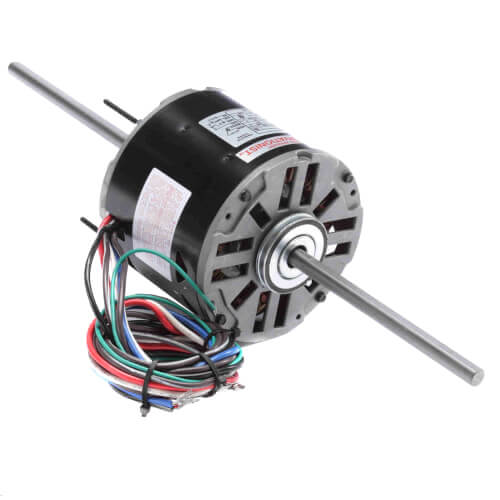

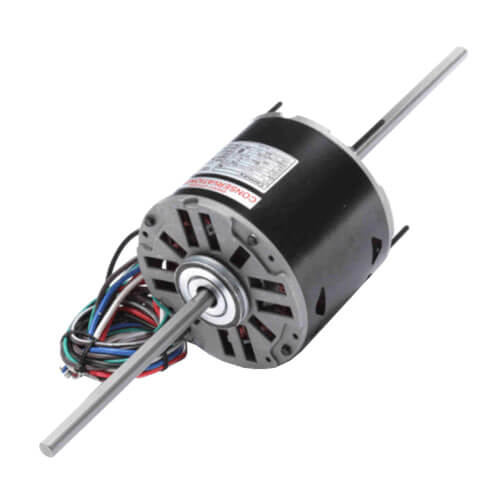

Regal Rexnord - Century Motors RA1036 1/3HP 208-230V 1075RPM 3Sp Mtr

Product Description

The Regal Rexnord - Century Motors RA1036 is a fan coil motor that operates at one-third horsepower, delivering reliable performance for various applications. This motor operates within a voltage range of 208 to 230 volts and offers three-speed options for flexibility. With a rotational speed of 1075 RPM, the RA1036 is designed for durability and efficiency in air handling systems.

• Type: Permanent Split Capacitor (PSC)
• Diameter: Five and five-eighths inches
• Weight: Sixteen pounds

Product Highlights

This motor is engineered for use in HVAC systems, providing effective air circulation and cooling capabilities. Its design features ensure consistent operation under various load conditions and environments.

Product Information

Standard Information

• Manufacturer: Regal Rexnord - Century Motors
• Model Number (MPN): RA1036

Technical Specifications

• Power: 1/3 HP
• Volts: 208-230V
• Amperage: 1.9A
• Rotational Speed: 1075 RPM
• Enclosure: Semi-Enclosed
• Frame Size: 48Y
• Phase: Single
• Rotation: CCWLE
