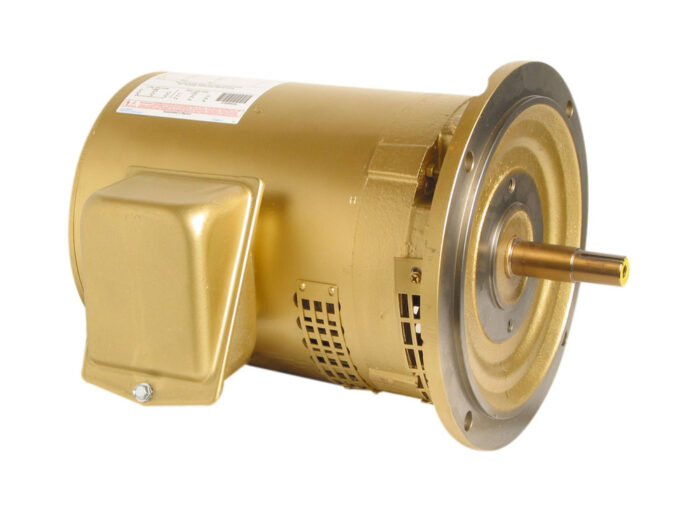

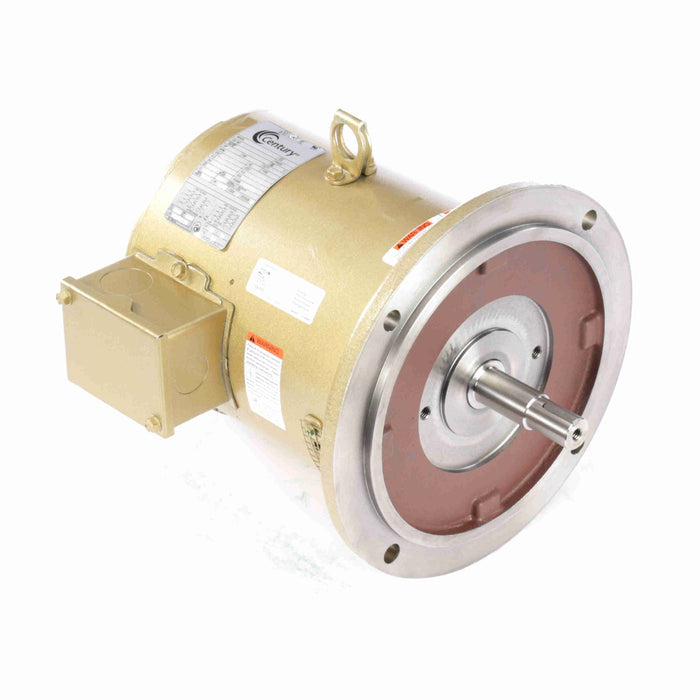

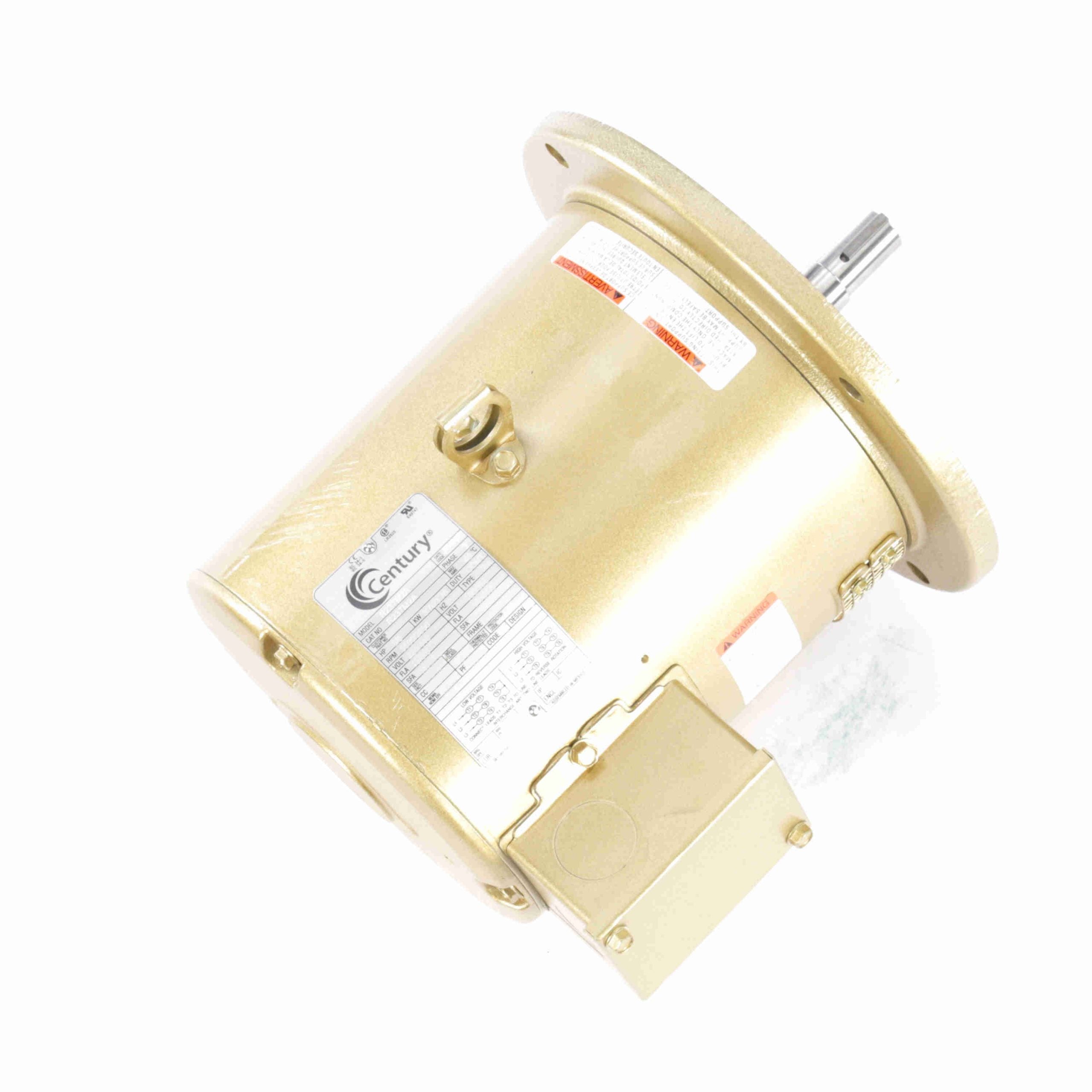

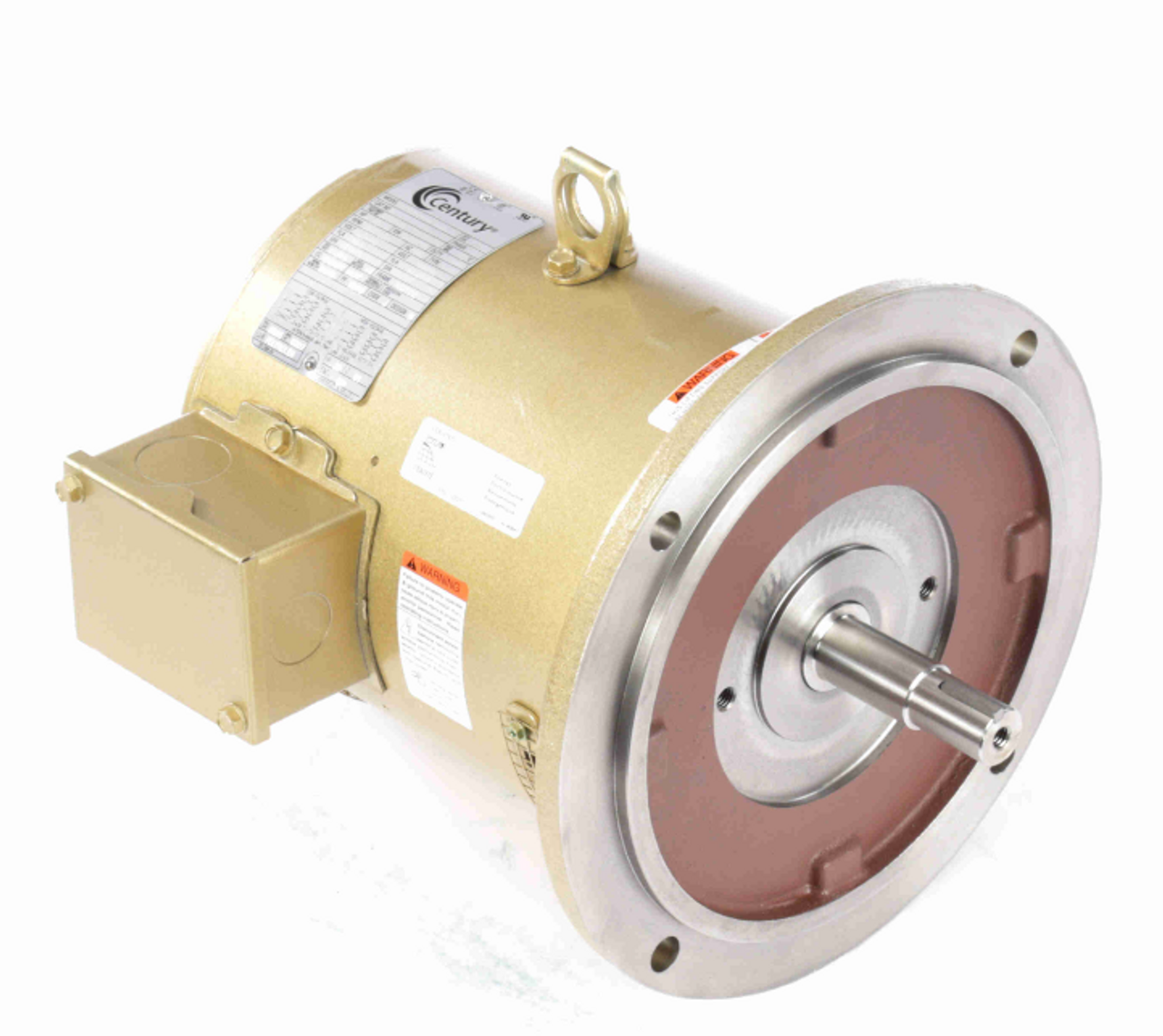

Century Motors R237M2A Pool and Spa Motor 5 HP

Product Description

The Century Motors R237M2A is a three-phase motor ideal for pool and spa pump operations. It runs on voltage levels of 220 or 440 volts and has a speed of three thousand five hundred RPM. The motor is built within a 182TDZ frame and features an Open Drip Proof (ODP) enclosure designed for effective water resistance.

• Suitable for pool and spa applications.
• Operates on 220/440 volts.
• Includes a keyed shaft for secure operation.

Product Highlights

This motor is essential for professionals managing pool and spa systems, providing steady, reliable power for efficient operation.

Product Information

Standard Information

• Brand: Century
• Manufacturer Part Number: R237M2A

Technical Specifications

• Horsepower: 5 HP
• Power: 3.7 kW
• Voltage: 220/440 V
• Current: 13/6.5 A
• Frequency: 50/60 Hz
• Speed: 3500 RPM
• Poles: 2
• Phase: 3
• Frame: 182TDZ
• Enclosure Type: ODP (Open Dripproof)
• Rotation: Reversible
• Mounting Type: Special/Non-Standard
• Motor Orientation: Horizontal
• Shaft Diameter: 1.000 in
• Shaft Length: 3 in
• Shaft Type: Keyed
• Overload Protection: None
• Duty Cycle: Continuous
• Service Factor: 1.15
• Insulation Class: F
• Maximum Ambient Temperature: 40° C
• Bearings Type: Ball
• Drive End Bearing: BALL
• Opp Drive End Bearing: BALL
• Frame Material: Rolled Steel
• Overall Length: 14.32 in
• Motor Shell Length: 9
• Length: 17.94 in
• Width: 13.06 in
• Height: 12.88 in
• Weight: 76 lb
• Certifications: UL Recognized, CSA Y
• Electrical Type: Three Phase
