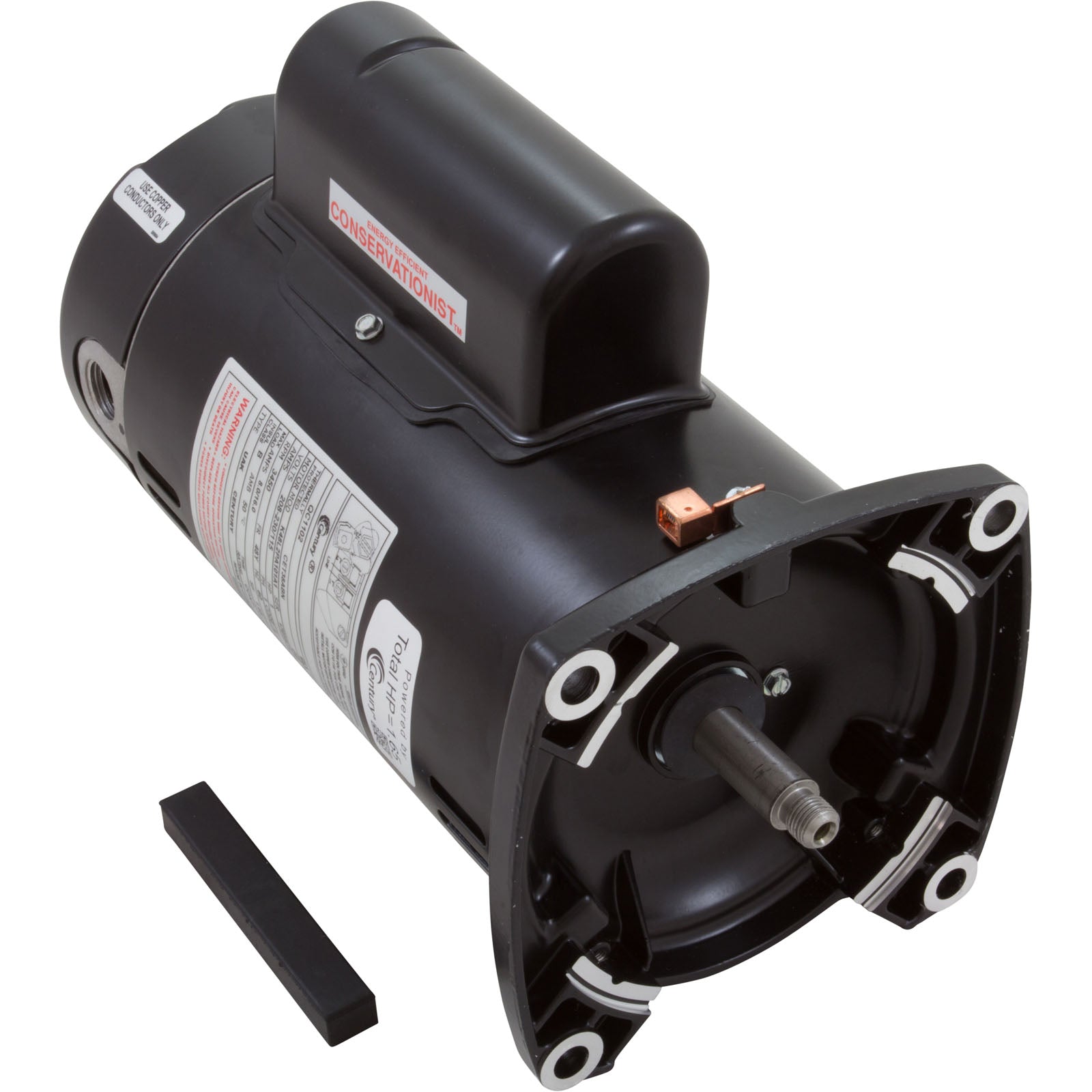

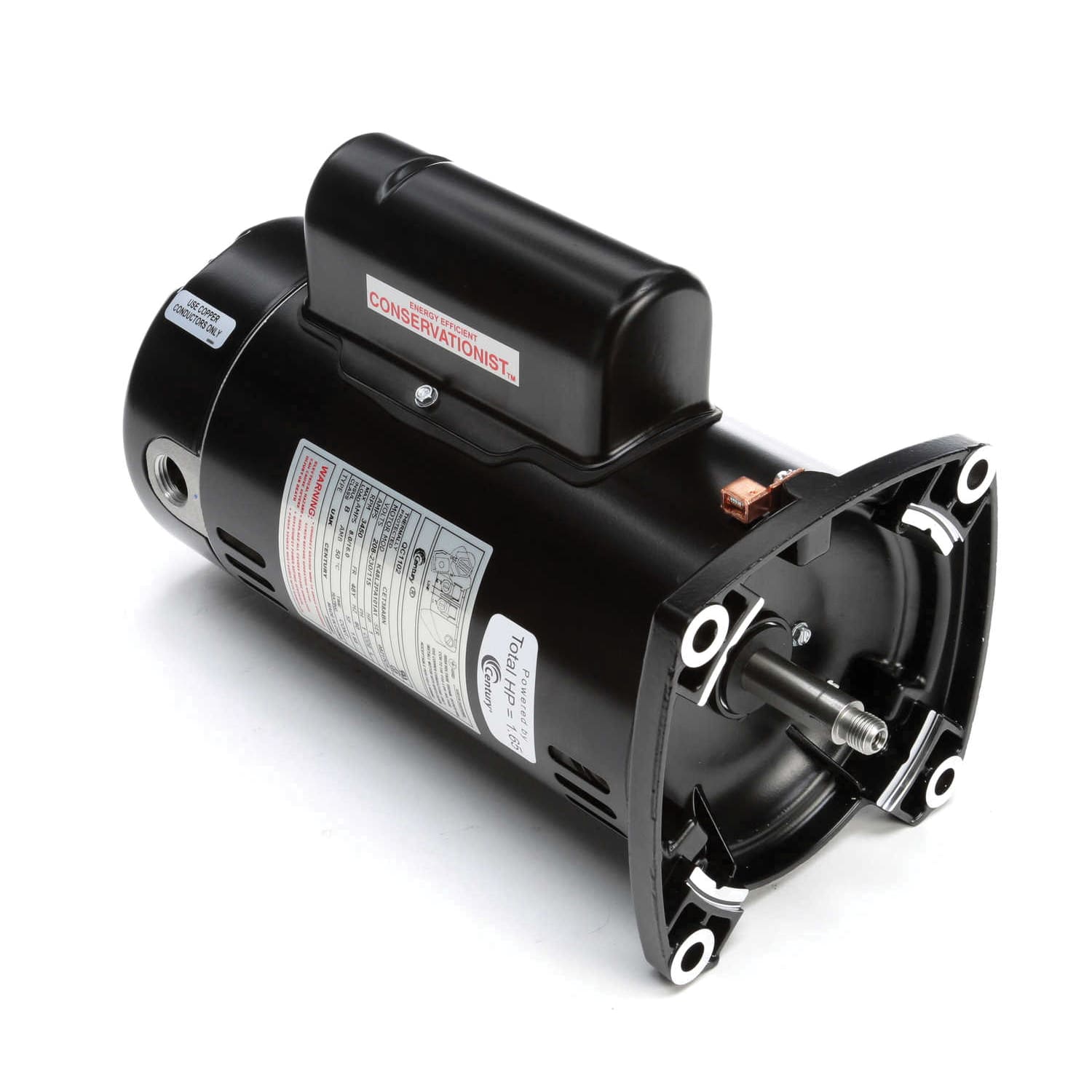

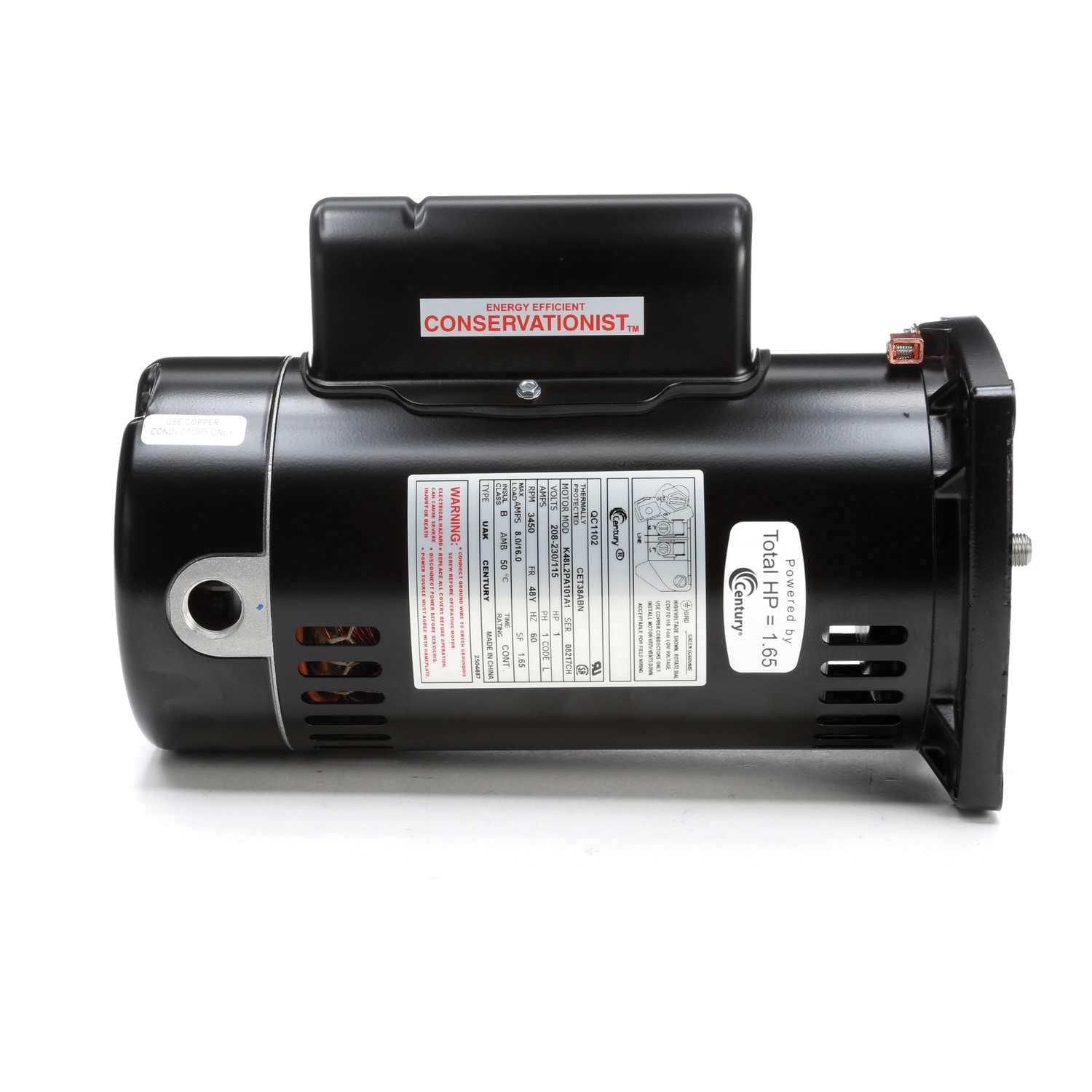

Century QC1102 Pool Pump Motor 1 HP Single Phase 48Y Frame

Product Description

Century QC1102 Pool Pump Motor is a reliable motor designed for pool and spa applications. With a 1 HP rating, this single-phase motor operates at 115/208-230V and fits a 48Y frame. It is ideal for enhanced and efficient pool filtration and circulation.

• 1 HP motor
• Single-phase operation
• Fits 48Y frame

Product Highlights

This Century QC1102 Pool Pump Motor effectively improves pool and spa filtration systems. It is energy-efficient and designed to withstand ambient temperatures up to 50 degrees Celsius.

Product Information

Standard Information

• Brand: Century
• MPN: QC1102

Technical Specifications

• Horsepower: 1 HP
• Voltage: 115/208-230V
• Frame Size: 48Y
• Phase: Single
• Enclosure: Open Drip Proof (ODP)
• Amperage: 8.0-8.0/16.0
• Body Diameter: 5.6 inches
• Shaft Type: Single, Threaded 1/2-20 UNF-2A RH and 1/4-20 UNC-2B LH
• Max. Ambient Temperature: 50 degrees Celsius
• Nameplate RPM: 3,450
• Overall Length: 12 9/16 inches
• Ins. Class: B
• Duty Cycle: Continuous
• Motor Bearings: Ball
• Shaft Material: Stainless Steel
• Motor Shaft Design: Threaded
• Motor Mounting Type: Face
• Motor Application: Pool and Spa Pump
• Motor Efficiency Group: Energy Efficient
• Motor Thermal Protection: Auto
• Country of Origin (subject to change): China
