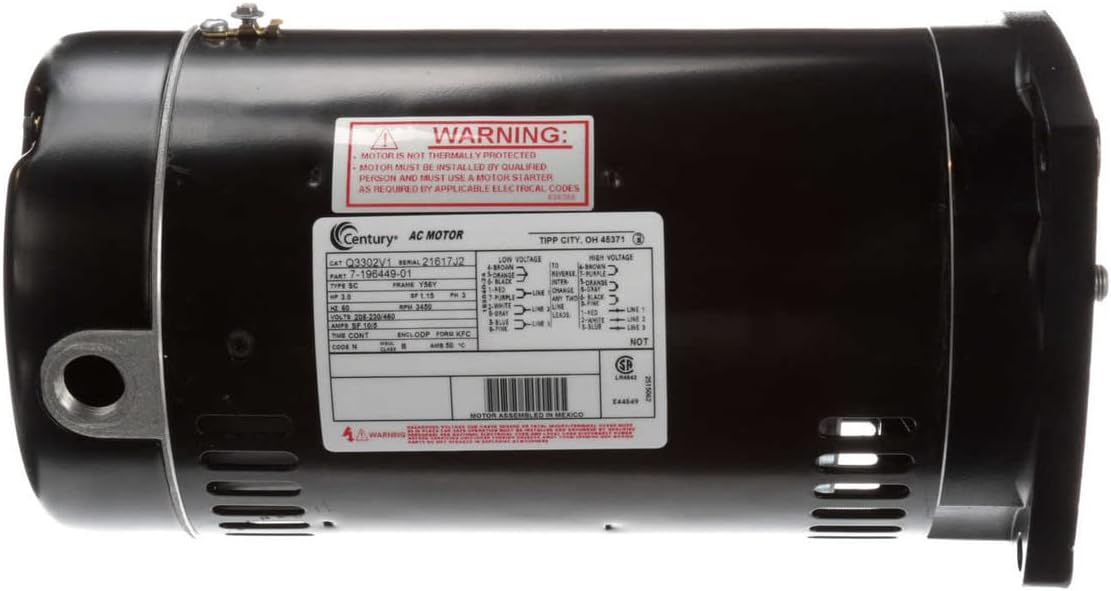

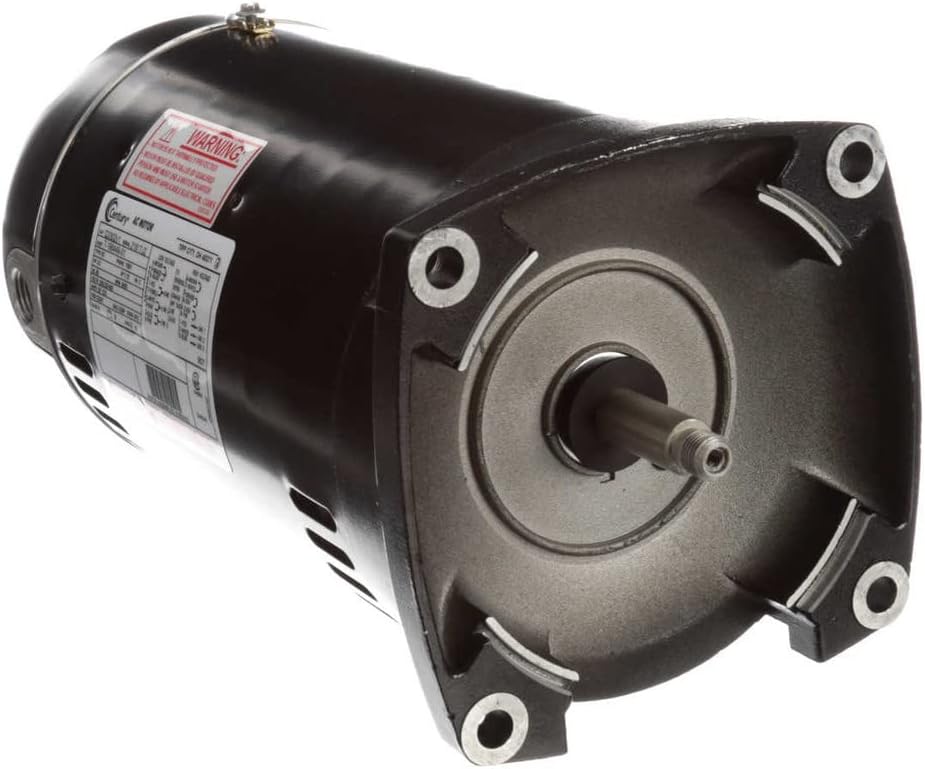

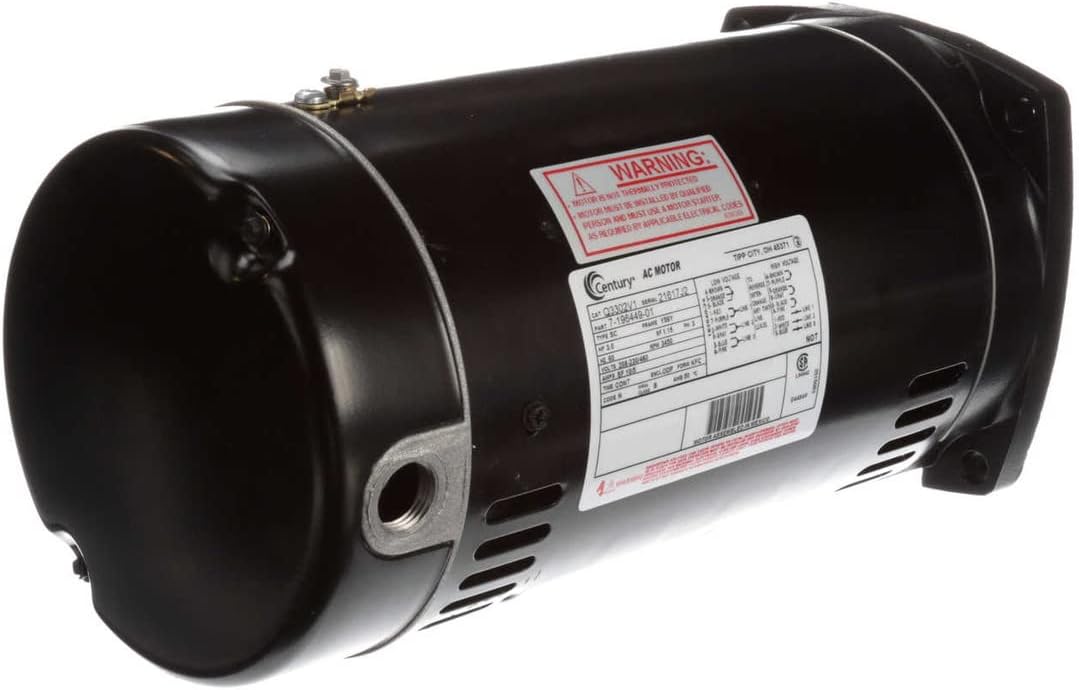

Century Q3302V1 Pool Motor 3 HP 3450 RPM 208-230/460V 56Y
Century Q3302V1 Pool Motor 3 HP 3450 RPM 208-230/460V 56Y
Century Q3302V1 Pool Motor 3 HP 3450 RPM 208-230/460V 56Y
Century Q3302V1 Pool Motor 3 HP 3450 RPM 208-230/460V 56Y

Century Q3302V1 Pool Motor 3 HP 3450 RPM 208-230/460V 56Y

Brand: CENTURY MOTORS
SKU: Q3302V1
Availability: In Stock
truck-svgrepo-com

Ships Same Day if Ordered by 12pm
$553.20
$553.20
Manuals:
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Century Q3302V1 Pool Motor is a 3 horsepower motor designed for pool and spa applications. It operates at 3450 RPM and is compatible with 208-230/460V power supplies. This ensures reliable performance for various pool systems.

  • 303 Stainless Steel Shaft
  • Energy-efficient
  • Sealed Ball Bearings

Product Highlights

This motor offers a stainless steel shaft, efficient energy use, and robust ball bearings for reliable operation in pool and spa environments.

Product Information

Standard Information

  • Brand: Century
  • MPN: Q3302V1

Technical Specifications

  • Speed: 3450 RPM
  • Voltage: 208-230/460V
  • Material: Stainless Steel
  • Horsepower: 3 hp
  • Certification: CSA/IEC/NEMA
  • Frame Size: 56Y
  • Phase: 3
  • Enclosure: Open Drip Proof
  • Ambient Temperature: 50°C
  • Bearing Type: Sealed Ball Bearings
  • Amperage: 10.0/5.0
