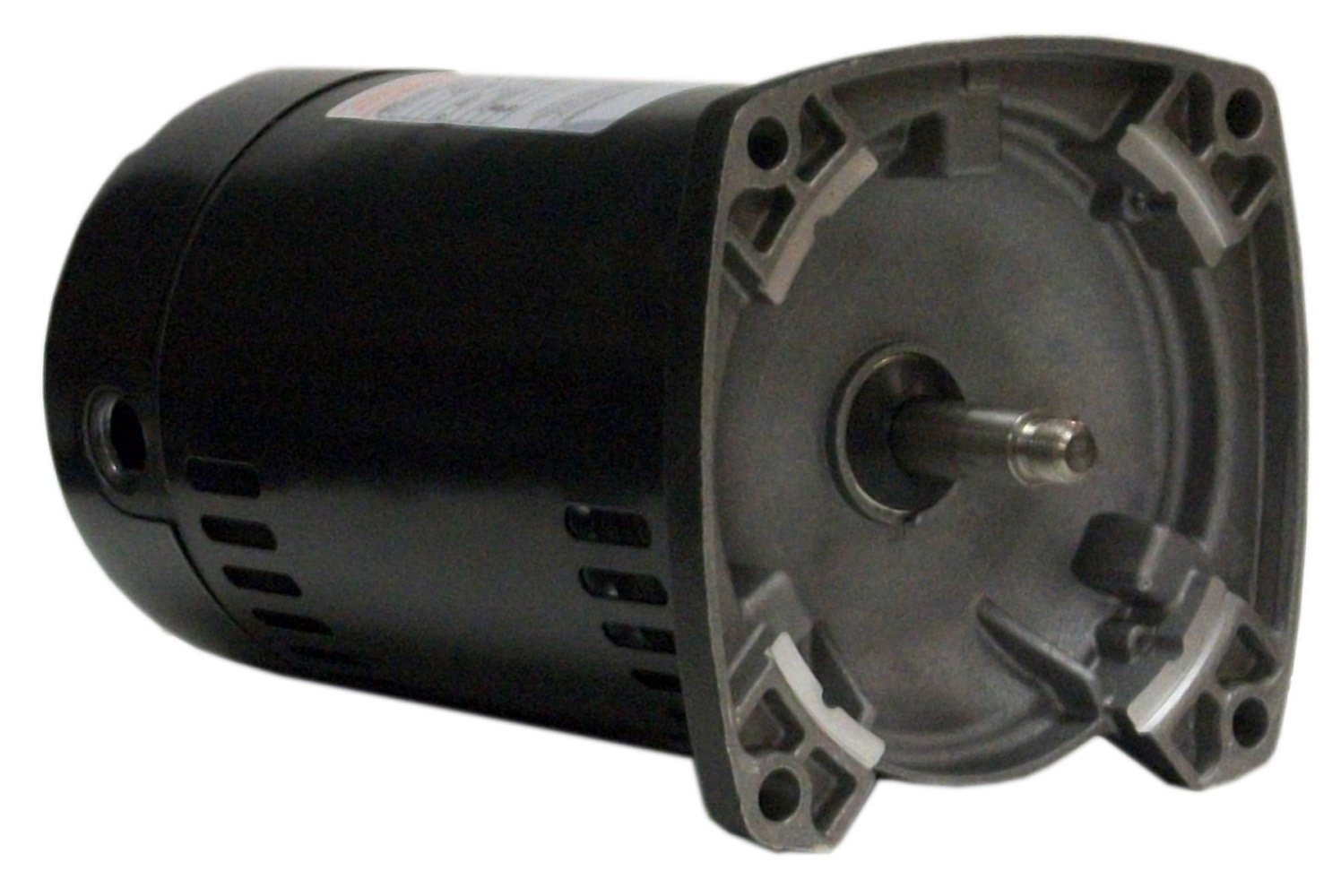

Century Q1032 Square Flange Single Phase Jet Pump Motor 1/3 HP 3450 RPM

Product Description

The Century Q1032 square flange single-phase jet pump motor is designed for reliable performance. This motor features a capacitive start and internal capacitors, ensuring efficient operation. It is built with a sealed switch design for durability and operates at 3450 RPM. It is important to note that this model is not suitable for replacing square flange swimming pool pump motors.

• 1/3 HP, 3450 RPM, 115/230 volts, 60Hz
• 9.9/4.95 max amps, 1.95 service factor
• 48Y Frame, ball bearings, ODP enclosure

Product Highlights

The Century Q1032 is a robust motor ideal for jet pump systems. With its reliable capacitive start and efficient operation, it is well-suited for various applications. This motor ensures continuous duty with an ambient temperature rating of 50C and features class B insulation and an auto protector for added safety.

Product Information

Standard Information

• Manufacturer: Century, formerly A.O. Smith
• Brand: Century
• Model: Q1032

Technical Specifications

• Horsepower: 1/3 HP
• Speed: 3450 RPM
• Voltage: 115/230 volts
• Frequency: 60Hz
• Amps: 9.9/4.95 max amps
• Service Factor: 1.95
• Frame: 48Y
• Bearings: Ball bearings
• Enclosure: ODP (Open Drip Proof)
• Insulation Class: B
• Ambient Temperature: 50C
• Rotation: Counterclockwise - pump end
• Duty: Continuous
