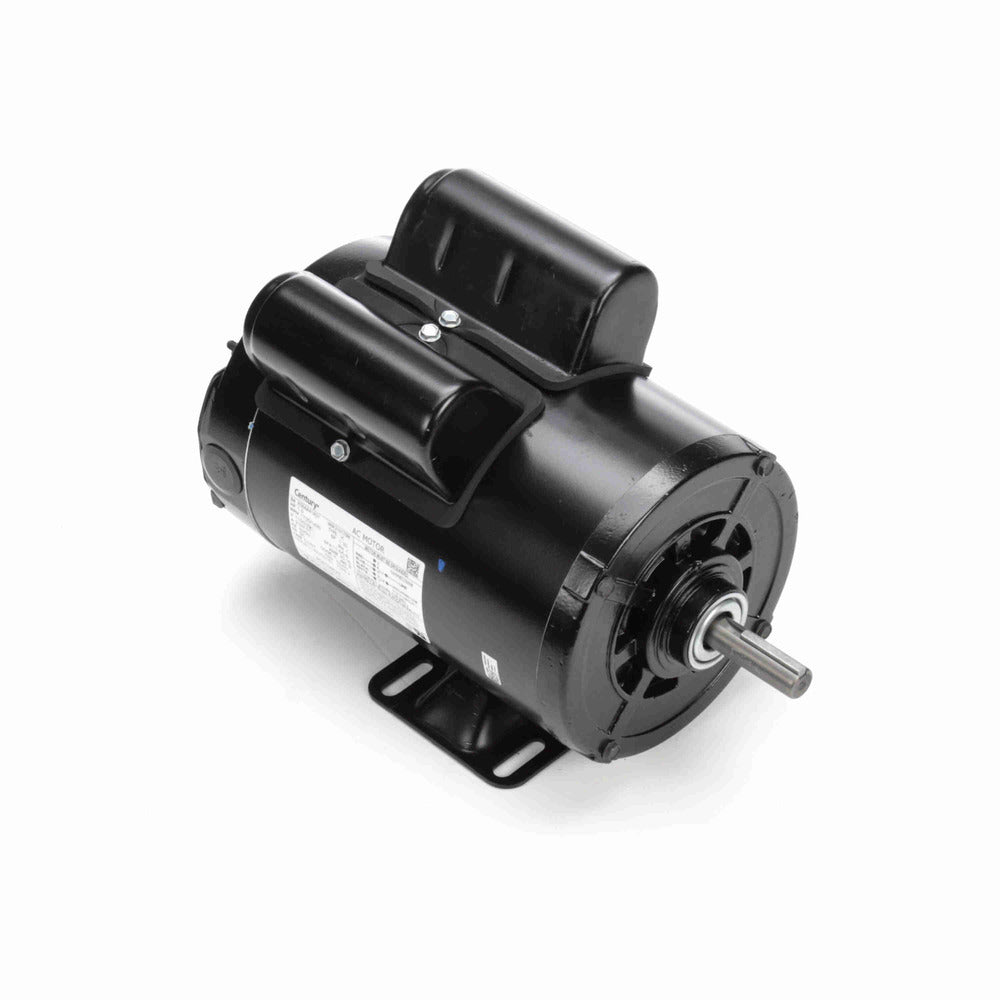

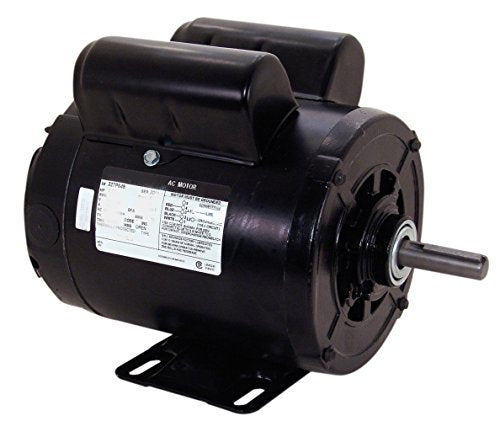

Century PD6104AV3 Poultry Duty Motor 1 HP 1725 RPM 115/230V

Product Description

The Century PD6104AV3 Poultry Duty Motor is designed to meet the high-performance demands of agricultural settings. This motor features a 1 HP capacity, operating at 1725 RPM, and supports a 115/230V AC input. Its totally enclosed air-over construction ensures durability in dusty environments. Ideal for poultry houses and other farm applications.

• High starting torque for demanding loads
• Energy-efficient design
• Protection against dust

Product Highlights

The Century PD6104AV3 offers a robust design tailored to the needs of agricultural operations, featuring automatic overload protection, a rigid base for secure mounting, and reversible motor rotation. Built with rolled steel and ball bearings, it provides reliable performance and longevity even in tough farm environments.

Product Information

Standard Information

• Brand: Century
• MPN: PD6104AV3
• Product Type: Electric Motor

Technical Specifications

• Electrical Type: Capacitor Start Capacitor Run
• HP: 1
• RPM: 1725
• Frame: 56
• Diameter: 6.5 inches
• Enclosure: Totally Enclosed Air Over
• Phase: Single
• Voltage: 115/230V AC
• Rotation: Reversible
• Overload: Automatic
• Material: Rolled Steel
• Mounting: Rigid Base
• Amperage: 9.0/4.5
• Shaft Type: Keyed
• KW: 0.75
• Shaft Diameter: 0.625 inches
• Shaft Extension: 2 inches
• Duty Cycle: Continuous
• Frequency: 60 Hz
• Insulation Class: B
• Poles: 4
• Service Factor: 1.3
• Ambient Temperature: 40 degrees C
• Country of Origin: Mexico
