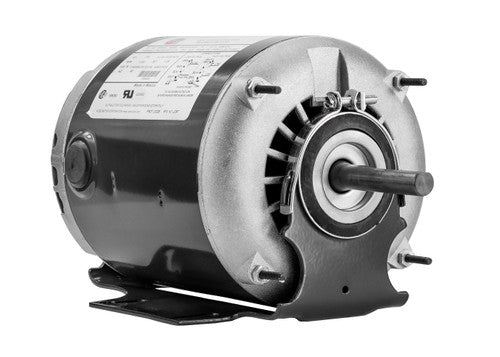

CENTURY MOTORS PD6002-S Belt Drive Blower Motor 1/4 hp

Product Description

The CENTURY MOTORS PD6002-S is a split phase belt drive blower motor suitable for furnace applications. It runs at 1725 RPM and supports a single speed. This motor operates with a voltage input of 115/230 volts and has amperage ratings of 4.6-2.3 or 5.2-2.6. The motor’s open drip proof enclosure protects internal components.

• Split phase motor for reliable performance
• Reversible rotation capability
• Automatic overload protection for safety

Product Highlights

This blower motor is designed for residential applications, ensuring effective airflow in heating systems.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• MPN: PD6002-S

Technical Specifications

• Horsepower: 1/4 hp
• RPM: 1725
• Speed: 1
• Input Voltage: 115/230V
• Amps: 4.6-2.3/5.2-2.6
• Frame Size: 48/56
• Frame Type: 48Z Frame
• Shaft Diameter: 1/2
• Shaft Length: 2.25
• Shaft Height: 3
• Mounting Type: Resilient
• Enclosure: Open Drip Proof
• Bearing Type: Ball Bearings
• Rotation: Reversible
• Overload Protection: Automatic Overload Protection
• Service Factor: 1.35
• Frequency: 60 Hz
• Application: Residential
• Insulation Class: Class B
