CENTURY MOTORS OWR1036 OEM Replacement Motor 1/3 HP

Product Description

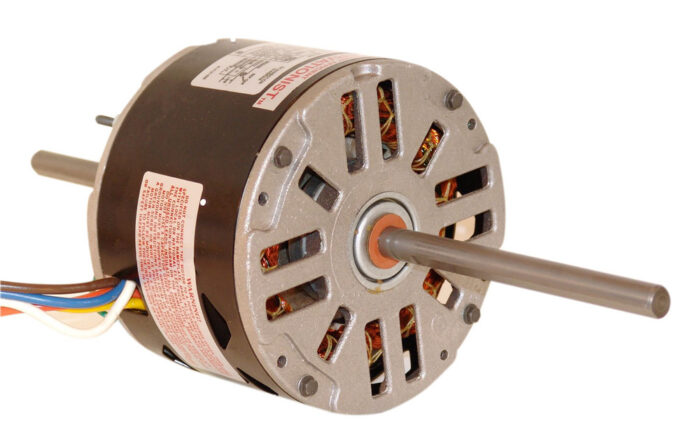

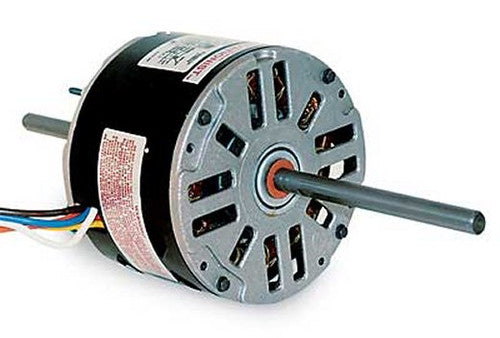

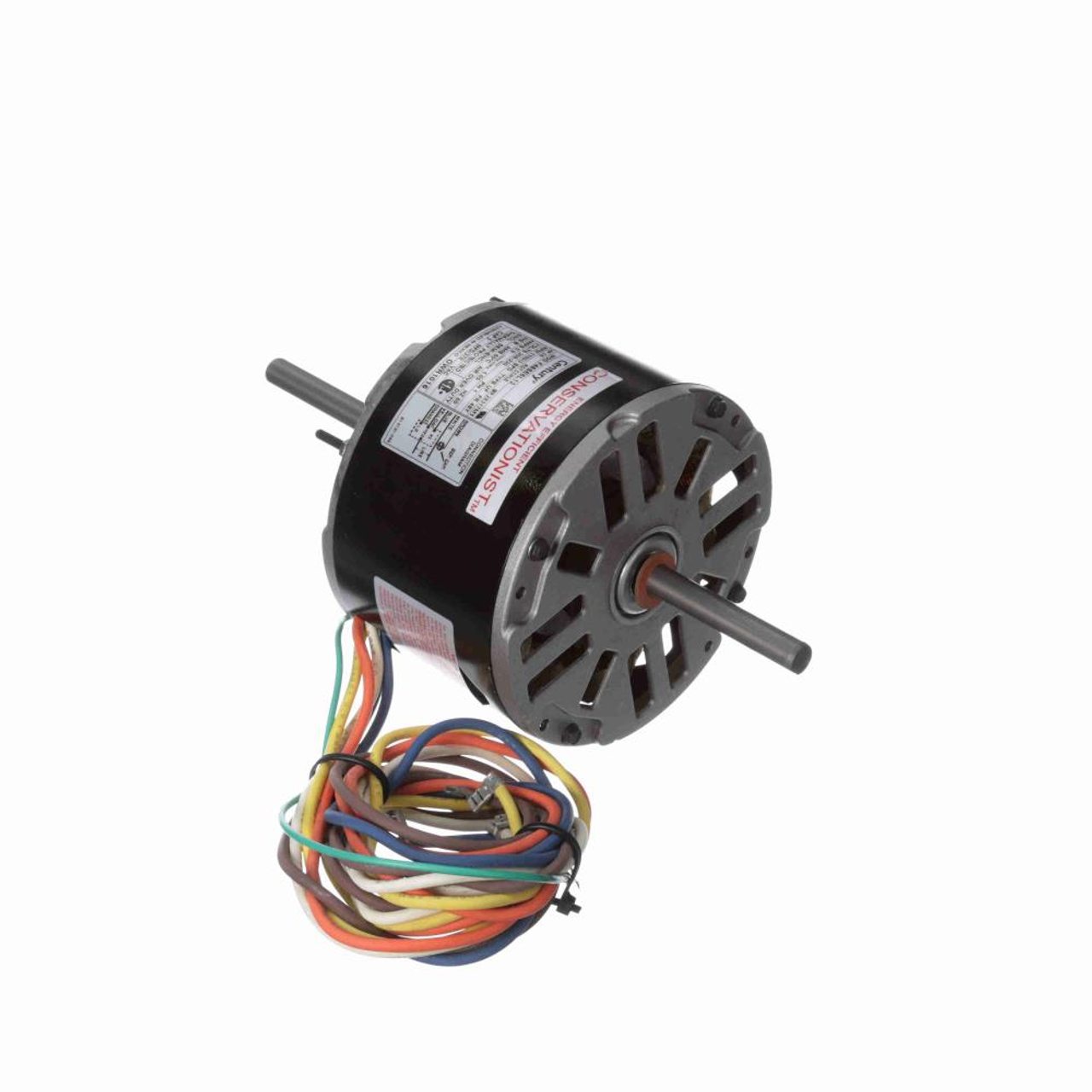

The CENTURY MOTORS OWR1036 is an OEM replacement motor that runs on 208-230V with a current of 1.5 amps. It offers three speeds and utilizes sleeve bearings for durability. With a diameter of five and five-eighths inches and a case length of four inches, this motor is designed for efficient operation. Rotation can be configured as CCWLE, CWLE, or CCWSE as needed.

• Horsepower: 1/3 HP
• Shaft Dimensions: 5-1/4 x 1/2 x 5-1/2 inches
• Includes 41 leads and a 2-prong 5 MFD capacitor

Product Highlights

Ideal for HVAC applications, this motor is dependable for multiple settings due to its robust design and effective performance.

Product Information

Standard Information

• Brand: CENTURY MOTORS
• Manufacturer Part Number: OWR1036

Technical Specifications

• Horsepower: 1/3 HP
• RPM: 1100
• Number of Speeds: 3
• Input Voltage: 208-230V
• Output Current: 1.5 amps
• Rotation: CCWSE / CWLE
• Shaft Dimensions: 5-1/4 x 1/2 x 5-1/2 inches
• Motor Diameter: 5-5/8 inches
• Motor Case Length: 4 inches
• Bearings: Sleeve Bearings
• Leads Length: 41 inches
• Electrical Type: Permanent Split Capacitor (PSC)
• Phase: Single
• Overload Protector: Auto
• Frame: 48Y
• Enclosure: Open Air Over (OAO)
• Material: Rolled Steel
