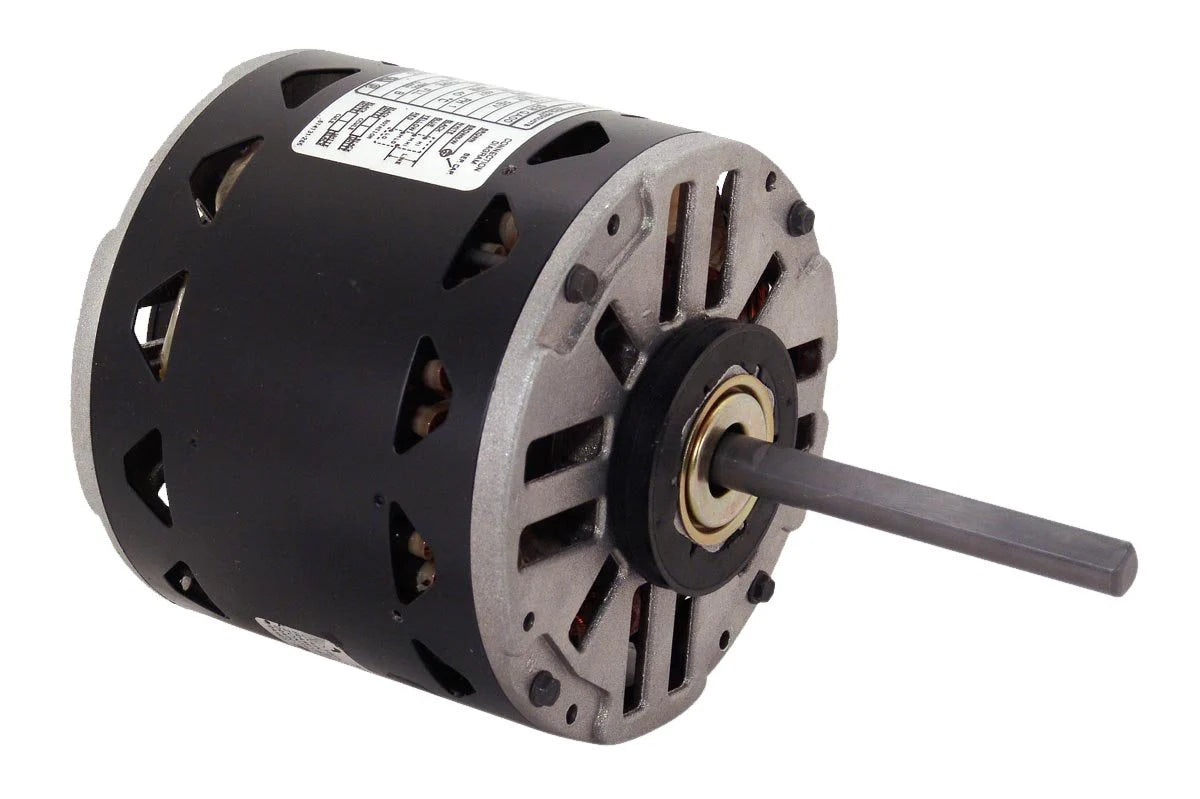

Century OTR10206 OEM Direct Replacement Motor

Product Description

The Century OTR10206 is an OEM direct replacement motor designed for Trane systems.

• 1/5 HP, 1075 RPM, 4 speed
• 115 volts, 2.3 amps, CCW rotation
• Requires 10Mfd/370V capacitor

Product Highlights

The Century OTR10206 motor features resilient mounting rings and durable sleeve bearings, making it suitable for HVAC applications.

Product Information

Standard Information

• Brand: Century
• Model: OTR10206
• Manufacturer: Century, formerly A.O. Smith
• Category: Electric Motors

Technical Specifications

• Electrical Type: PSC
• Horsepower: 1/5
• KW: 0.15
• RPM: 1075
• Frame: 48Y
• Diameter: 5.6 inches
• Enclosure: ODP
• Phase: Single
• Voltage: 115
• Rotation: CCWLE
• Overload Protection: Auto
• Material: Rolled Steel
• Bearings Type: Sleeve / Sleeve
• Mounting: Resilient Ring
• Orientation: Horizontal
• Amperage: 2.3
• Shaft Type: Flat
• Shaft Extension: 3.500 inches
• Shaft Diameter: 0.500 inches
• Ambient Temperature: 40°C
• Duty: Air Over
• Insulation Class: B
• Poles: 6
• Service Factor: 1
• Start Method: Across The Line
