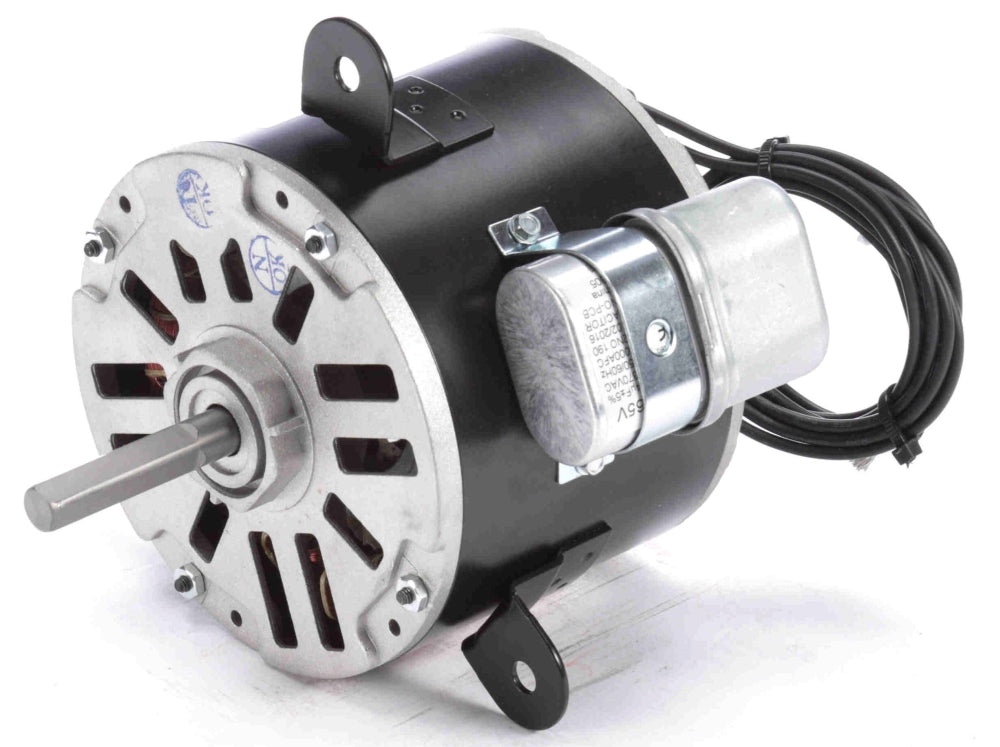

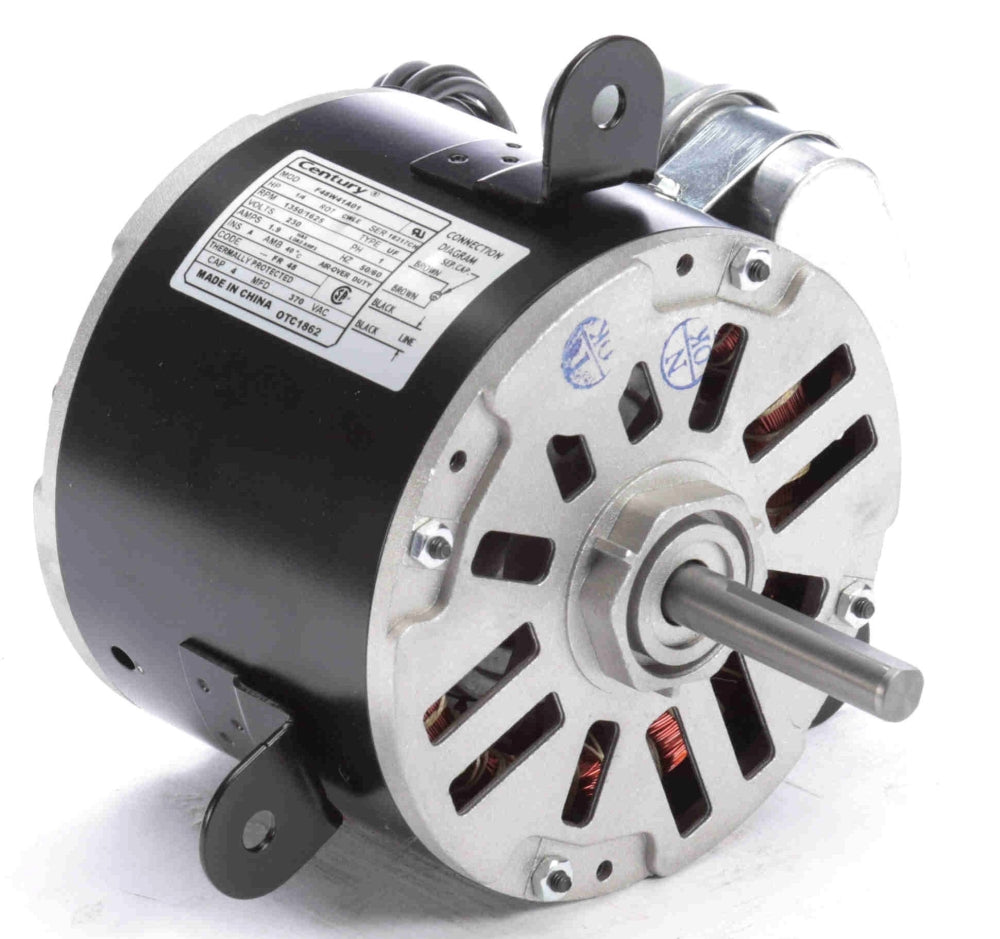

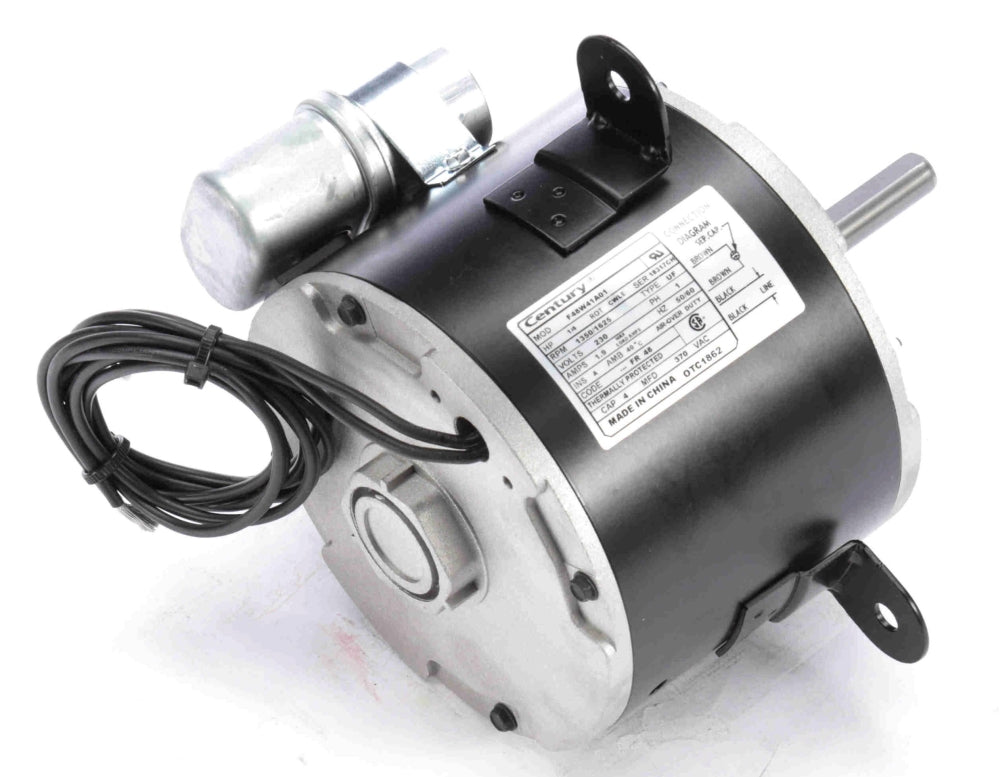

Century OTC1862 1/4 HP 230V 1625 RPM 1-Speed Lug Mount HVAC/R Motor

Product Description

The Century OTC1862 HVAC/R motor delivers reliable performance for various refrigeration and cooling applications. This 1/4 HP motor operates on 230 volts, offering a speed of 1625 RPM with single-speed functionality.

• 1/4 HP power rating
• 230V 1-phase power supply
• 1625 RPM speed

Product Highlights

This motor is ideal for HVAC and refrigeration systems. It features Class A insulation, a rolled steel frame, and a semi-enclosed air-over design. The lug mount and double flat shaft ensure easy installation and stable operation.

Product Information

Standard Information

• Brand: Century Motors
• MPN: OTC1862

Technical Specifications

• Power Rating: 1/4 HP
• Voltage Rating: 230 Volt AC 1-Phase
• Frequency Rating: 50/60 Hertz
• Motor FLA: 1.9 Amp
• Speed Rating: 1625 RPM
• Service Factor: 1
• NEMA Frame Size: 48Y
• Insulation Class: A
• Frame Material: Rolled Steel
• Mounting: Lug
• Weight: 11 Pound
• Approval: UL, CSA
• Type: Permanent Split Capacitor
• Shaft Type: Double Flat
• Orientation: Vertical Shaft Down
• Rotation Type: Clockwise Lead End
• Bearing Type: Ball (Drive End/Opposite Drive End)
• Number of Poles: 4
• Size: 5-5/8 Inch Diameter x 7.55 Inch Length
• Frame Length: 3.75 Inch
• Shaft Size: 1/2 Inch Diameter x 2-3/4 Inch Length
• Starting Method: Induction Run
• Ambient Temperature Rating: 40 Deg C
• Includes: 39 Inch Lead
