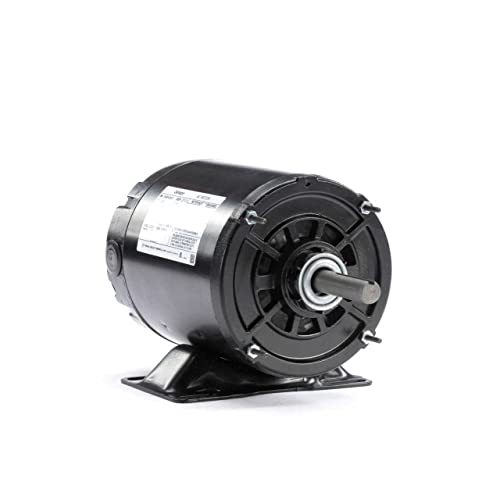

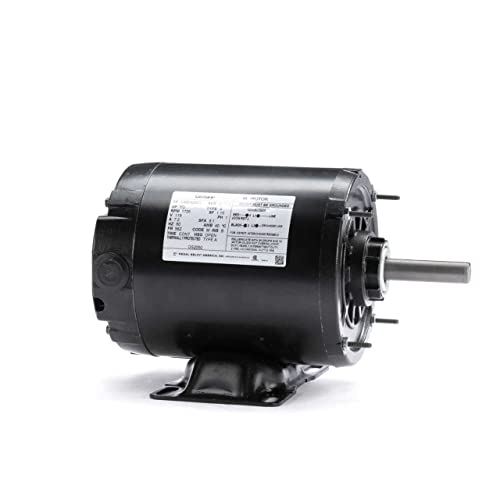

Century OS2050 Motor Split Ph 1/2 HP 1725 115V 56Z Open

Product Description

The Century OS2050 Motor Split Ph is a 1/2 HP electric motor operating at 1725 RPM with a voltage of 115V. It is designed for various HVAC applications, offering reliable performance in belt drive systems.

• 1/2 HP power rating
• Runs at 1725 RPM
• Suitable for HVAC applications

Product Highlights

This Century motor features a split-phase design, ensuring efficient operation in HVAC systems. It supports both clockwise and counterclockwise rotations. The motor includes a 5/8 inch shaft adapter and key, making it versatile for different setups.

Product Information

Standard Information

• Phase: 1
• Motor Thermal Protection: Auto
• Ins. Class: B

Technical Specifications

• Nameplate RPM: 1725
• Overall Length: 10-5/8 inches
• Shaft Diameter: 5/8 inches
• Shaft Length: 2-3/8 inches
• Full Load Amps: 8.1
• Max. Ambient Temperature: 40 degrees C
• Motor Service Factor: 1.15
• Motor Bearings: Ball
• Voltage Compatibility: 115
• Motor Enclosure Design: Open Air-Over
• Motor Mounting Type: Rigid Base
• Body Diameter: 5-5/8 inches
• Country of Origin: Mexico
