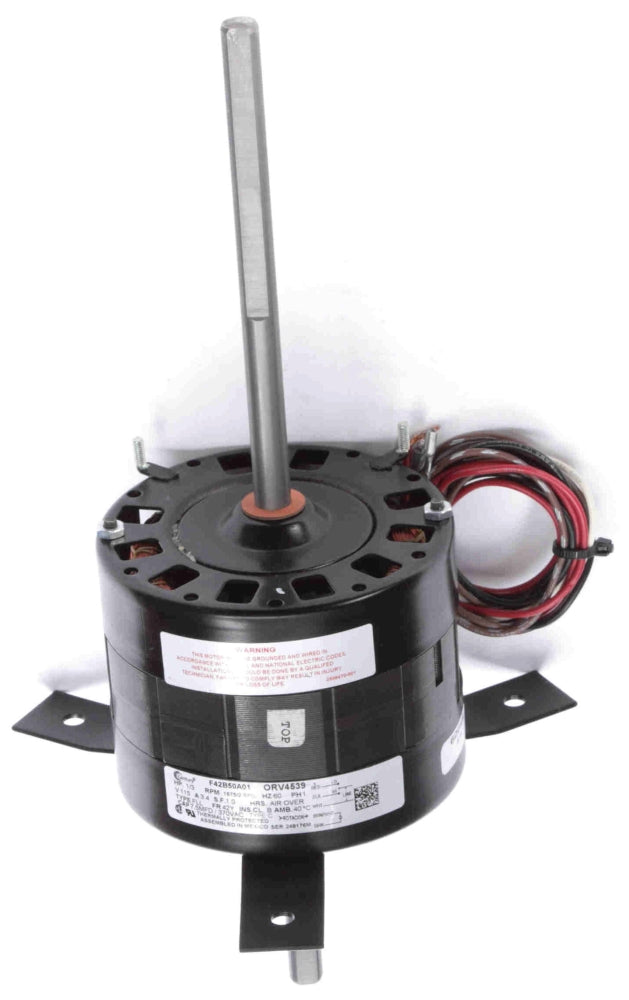

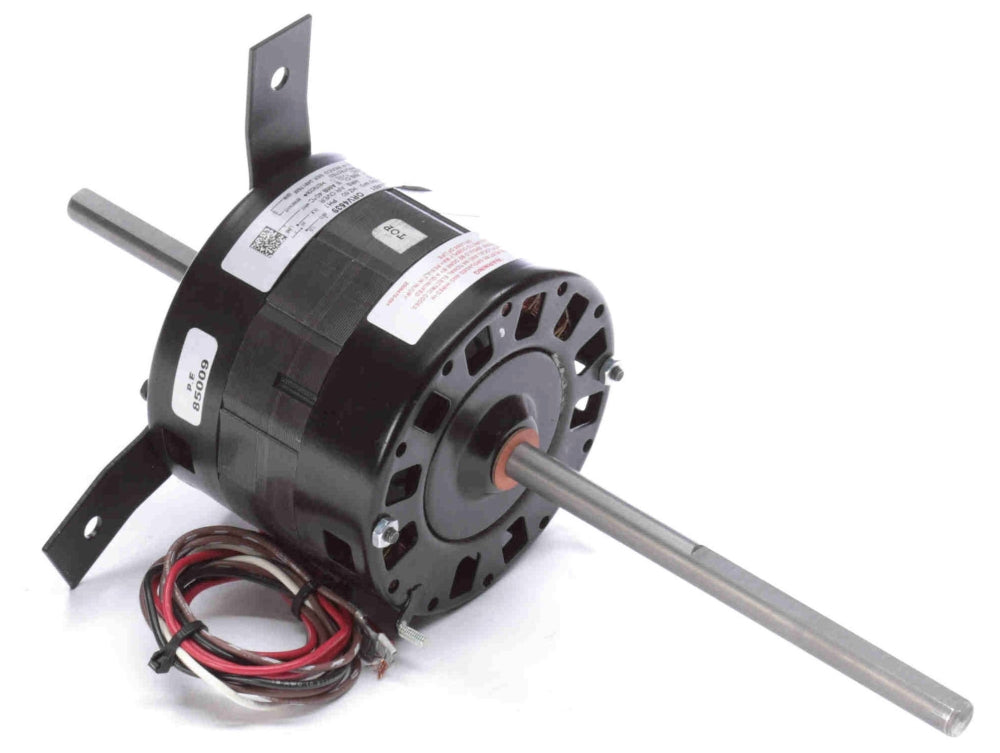

Regal Rexnord - Century Motors ORV4539 1/3 HP 115 VAC 60 Hz 1-Phase 2-Speed Replacement Motor

Product Description

The Regal Rexnord ORV4539 is an HVAC/R motor with a power rating of one-third horsepower and a voltage of one hundred fifteen volts. This single-phase motor operates at a frequency of sixty hertz, making it suitable for various heating and cooling applications. It features a rolled steel frame and semi-enclosed design for durability, along with a double flat shaft configuration that enhances performance.

• Power Rating: 1/3 HP
• Speed: 1675 RPM with 2-speed capability
• Frame Size: NEMA 42Y

Product Highlights

This motor is noted for its reliable performance in HVAC systems and is equipped with an automatic overload protector. It operates efficiently with a full load current of 3.4 amps. The design includes sleeve bearings for smooth operation.

Product Information

Standard Information

• Manufacturer: Regal Rexnord - Century Motors
• Model Number: ORV4539

Technical Specifications

• Voltage Rating: 115 Volt AC
• Frequency Rating: 60 Hertz
• Number of Speeds: 2
• Speed Rating: 1675 RPM
• Insulation Class: B
• Weight: 11 Pounds
• Frame Material: Rolled Steel
• NEMA Frame Size: 42Y
• Bearings Type: Sleeve (both ends)
• Mounting Type: Lug
• Orientation: Horizontal
• Service Factor: 1
• Ambient Temperature Rating: 40 Degrees C
• Includes Capacitor: 7.5 Microfarad 370 Volt
