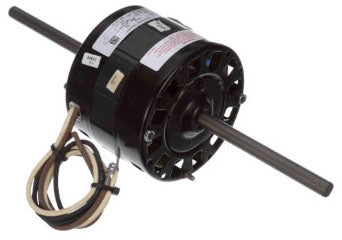

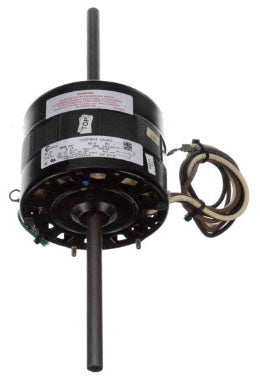

Century ORV4537 1/4 HP 115VAC Blower Motor 1625 RPM

Product Description

The Century ORV4537 blower motor is ideal for HVAC applications. It offers consistent performance for air conditioning and ventilation systems. Designed to deliver reliable operation, this motor meets the needs of both commercial and residential settings.

• 1/4 HP power rating
• Operates on 115 volts AC
• 1625 RPM speed

Product Highlights

This motor operates efficiently with a power rating of 1/4 HP and provides a maximum speed of 1625 RPM. It features a NEMA 42Y frame and is designed for easy installation with extended stud mounting. The motor includes a double flat shaft and offers clockwise lead end rotation for optimal performance.

Product Information

Standard Information

• Brand: Century
• MPN: ORV4537
• Product Type: Blower Motor

Technical Specifications

• Power Rating: 1/4 HP
• Voltage Rating: 115 Volt AC 1-Phase
• Frequency Rating: 60 Hertz
• Motor FLA: 2.8 Amp
• Speed Rating: 1625 RPM
• NEMA Frame Size: 42Y
• Insulation Class: A
• Frame Material: Rolled Steel
• Mounting: Extended Stud
• Weight: 9 Pound
• Approval: UL, CSA
• Type: Permanent Split Capacitor
• Shaft Type: Double Flat
• Orientation: Horizontal
• Rotation Type: Clockwise Lead End
• Bearing Type: Sleeve (Drive End/Opposite Drive End)
• Number of Poles: 6
• Size: 5 Inch Diameter x 14.43 Inch Length
• Shaft Size: 1/2 Inch Diameter x 5-1/4 Inch Length
• Starting Method: Induction Run
• Ambient Temperature Rating: 40 Deg C
• Includes: 23 Inch Lead, 7.5 Microfarad 370 Volt Capacitor, (2) Extended Stud Lead End and Opposite Lead End
