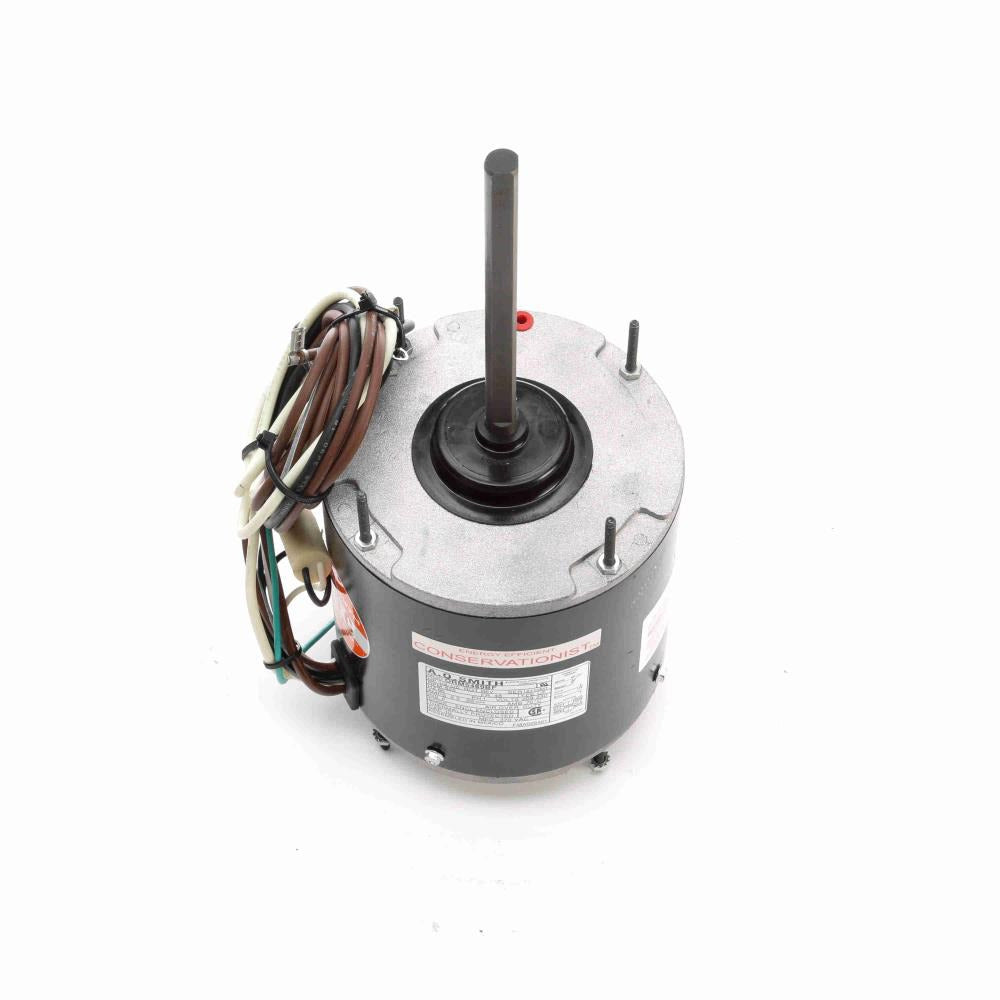

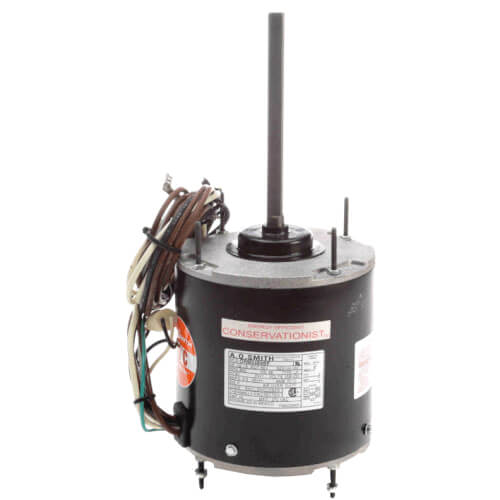

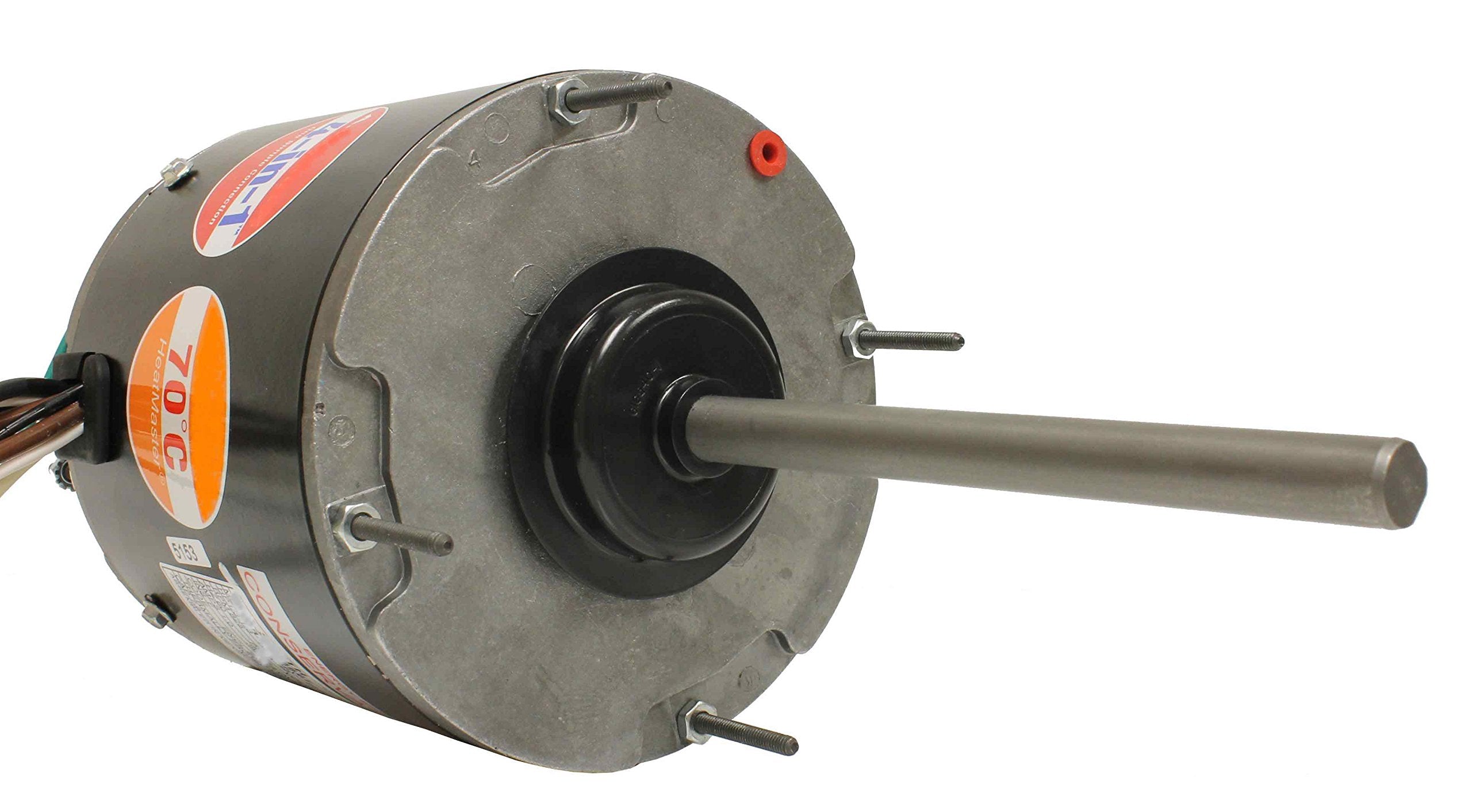

Century ORM5489BF 4-in-1 HeatMaster 5-5/8 Dia Multi-HP Condenser Fan Motor

Product Description

The Century ORM5489BF Condenser Fan Motor is a 4-in-1 HeatMaster designed for HVAC applications. This motor offers reliable performance for various condenser fans, ensuring efficient operation and energy savings. It comes with Rheem mounting holes and includes screws for easy installation. The motor is UL and CSA approved, making it a trusted choice for your HVAC needs.

• 1/2-1/5 HP, 825 RPM, 1 speed, reversible
• 208-230 volts, 2.5 amps, 70C ambient
• Insul class F, ball bearings, 48Y Frame

Product Highlights

This condenser fan motor is designed for use in air circulators, blowers, and fans. It features a totally enclosed air-over design, ensuring durability and protection from external elements. The reversible motor shaft allows for flexible installation, and its 48-inch lead length offers versatility for various setups.

Product Information

Standard Information

• Brand: Century
• Manufacturer: Century, formerly A.O. Smith
• Model: ORM5489BF
• UPC: 786674028389

Technical Specifications

• HP: 1/2 to 1/5
• RPM: 825
• Diameter: 5.6 inches
• Voltage: 208-230V AC
• Amperage: 2.5
• Frame: 48
• Phase: Single
• Insulation Class: F
• Enclosure: TEAO (Totally Enclosed Air Over)
• Bearings: Ball
• Mounting: Extended Studs
• Weight: 18 lbs
• Rotation: Reversible
• Max Ambient Temperature: 70 degrees Celsius
• Material: Rolled Steel
• Shaft Diameter: 0.5 inches
• Shaft Extension: 6.5 inches
• Certification: UL and CSA approved
