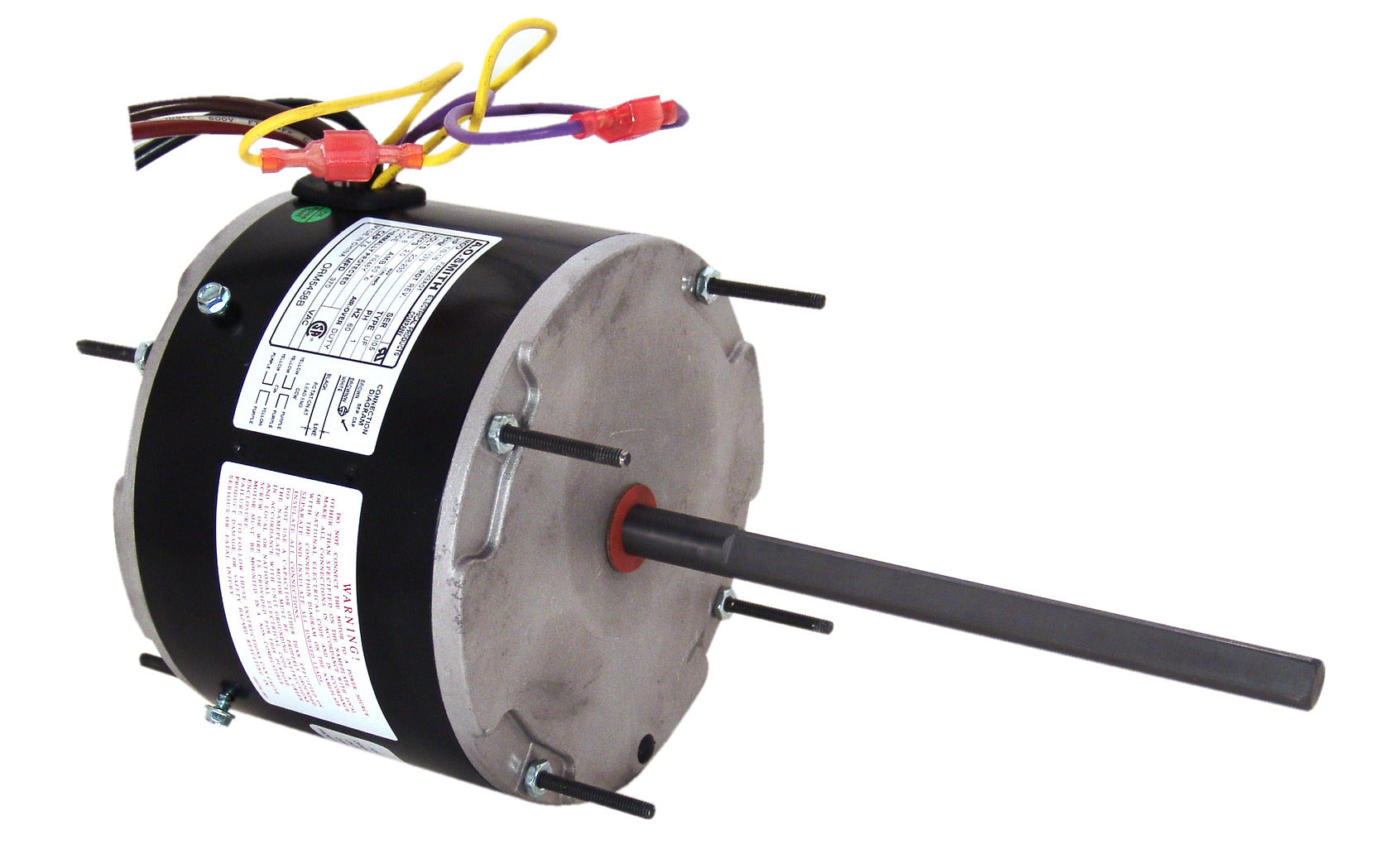

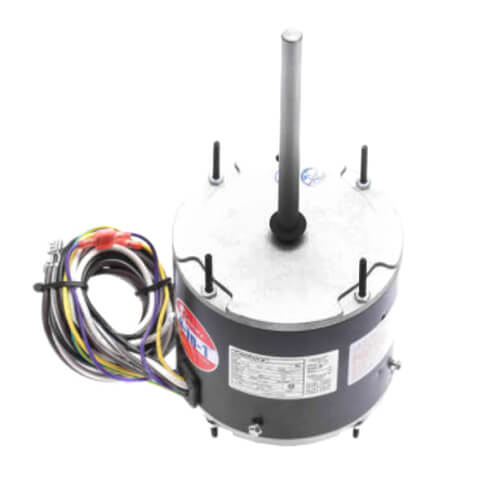

Century ORM5488B Condenser Fan Motor 1/3 HP 5-5/8 Inch Multi-Horsepower 4-in-1 Replacement Motor

Product Description

The Century ORM5488B Condenser Fan Motor is a highly efficient motor designed for HVAC applications. This model operates on 208-230 volt power and features a horsepower rating of one third. It has a rotational speed of eight hundred twenty-five revolutions per minute. This motor supports multiple applications and is suitable for condenser fan systems.

• Single phase operation
• Ball bearing design for durability
• Automatic overload protection

Product Highlights

This condenser fan motor features a totally enclosed design and is rated for continuous duty. It is easy to install with extended studs and is compatible with various HVAC systems.

Product Information

Standard Information

• Manufacturer: Century
• MPN: ORM5488B

Technical Specifications

• Power Rating: 1/3 HP
• Voltage: 208-230V
• RPM: 825
• Amperage: 2.1
• Frame Size: 48
• Bearings Type: Ball
• Shaft Type: Double Flat
• Motor Enclosure: Totally Enclosed
• Ambient Temperature: 60 degrees C
