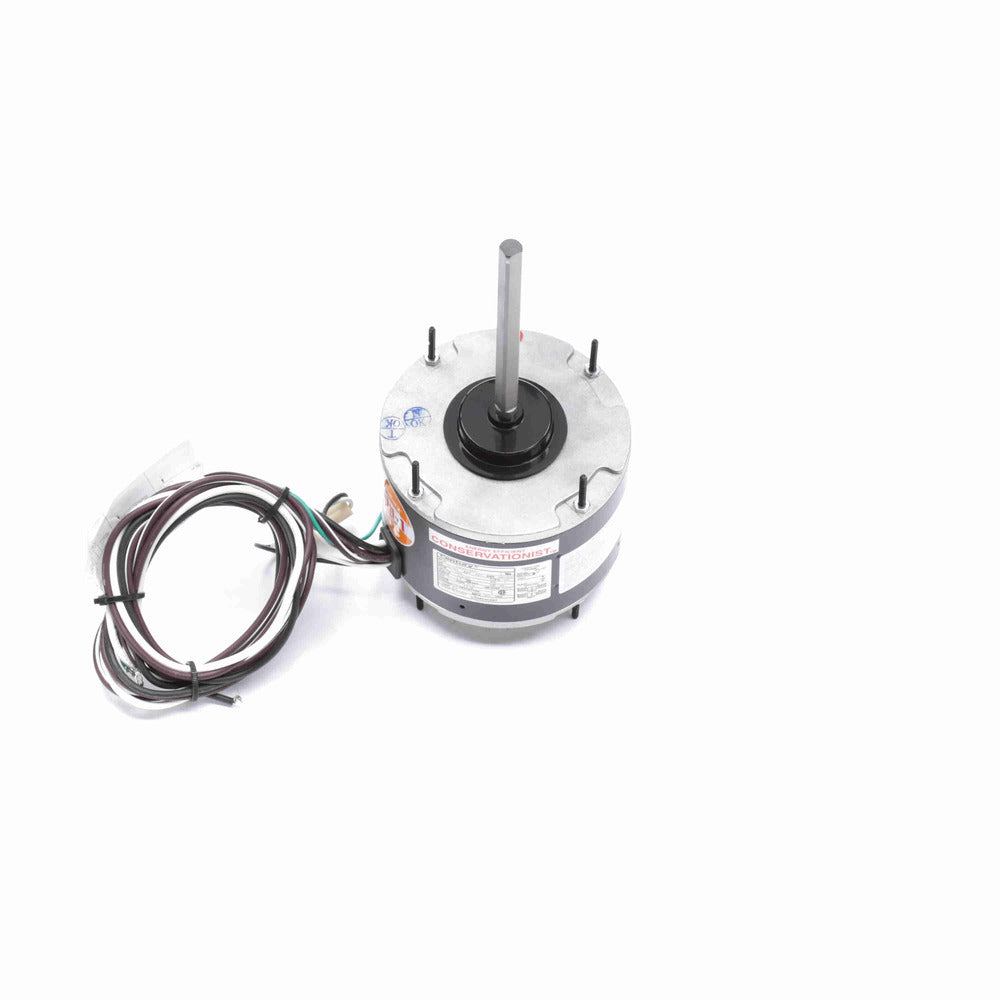

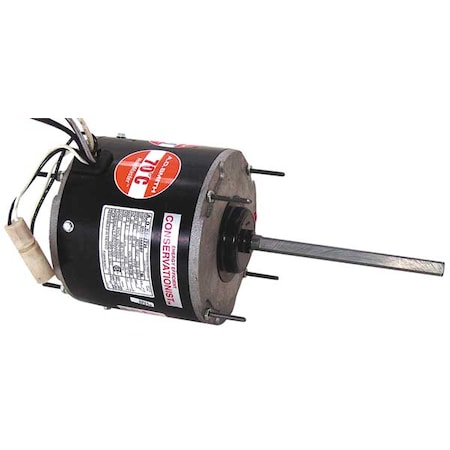

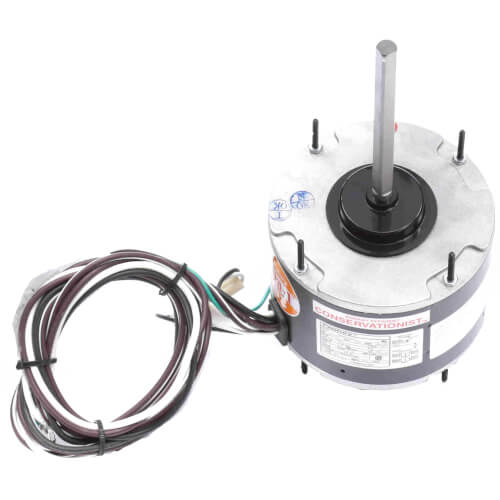

Regal Rexnord ORM5454BF Condenser Fan Motor 208-230v1ph 1/8-1/15hp 1075rpm

Product Description

The Regal Rexnord - Century ORM5454BF condenser fan motor is designed for industrial applications, providing reliable performance at 208-230 volts. This single-phase motor operates at 1/8-1/15 horsepower and 1075 RPM, ensuring optimal efficiency and durability. Built with a strong frame and robust construction, it withstands demanding environments.

• Provides reliable performance.
• Built for industrial applications.
• Operates at 1075 RPM.

Product Highlights

The ORM5454BF motor from Regal Rexnord - Century Motors is engineered to meet industrial standards. It features a sturdy roll steel frame, reversible rotation, and automatic overload protection, making it suitable for demanding environments.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• Item Number: ORM5454BF

Technical Specifications

• Electrical Type: Permanent Split Capacitor (PSC)
• Horsepower: 1/8-1/15 HP
• RPM: 1075
• Frame: 48
• Voltage: 208-230V
• Phase: Single
• Enclosure: Totally Enclosed Air-Over (TEAO)
• Rotation: Reversible
• Amperage: 0.80 Full Load Amps
• Material: Rolled Steel
• Mounting: Extended Studs
• Shaft Type: Double Flat
• Shaft Extension: 6.500 inches
• Insulation Class: F
• Ambient Temperature: 70°C
• Service Factor: 1
• Weight: 11 lb
• Certifications: UL, CSA
• Application: HVAC/R
