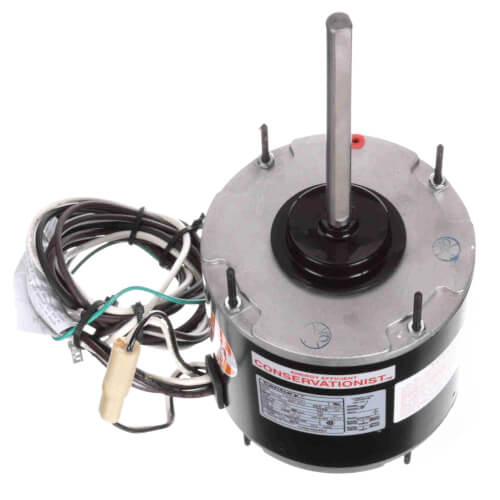

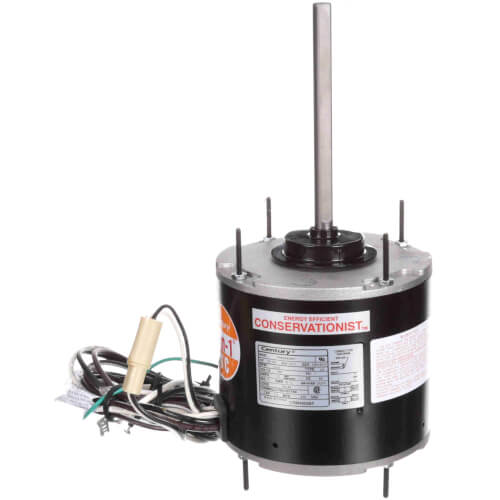

Regal Rexnord - Century Motors ORM4658BF 460V 1/3-1/6HP 1075RPM MOTOR3

Product Description

The Regal Rexnord ORM4658BF motor by Century Motors is a versatile condenser fan motor designed for industrial use. It operates at 460V with a horsepower rating of 1/3 to 1/6 HP and a speed of 1075 RPM.

• 1/3-1/6 horsepower
• 460V motor
• 1075 RPM speed

Product Highlights

This motor features automatic overload protection and is reversible for flexible installation options. Its durable rolled steel construction ensures longevity and reliability, making it suitable for industrial environments.

Product Information

Standard Information

• Brand: Regal Rexnord - Century Motors
• Item Number: ORM4658BF
• Voltage: 460V
• Horsepower: 1/3-1/6 HP
• Speed: 1075 RPM

Technical Specifications

• Enclosure: TEAO (Totally Enclosed Air Over)
• Phase: Single
• Rotation: Reversible
• Amperage: 1.2A
• Insulation Class: F
• Mounting: Extended Studs
• Bearings: Ball
• Shaft Diameter: 0.5 inches
• Shaft Extension: 6.5 inches
• Frame: 48
• Material: Rolled Steel
• Ambient Temperature: 70°C
• Service Factor: 1
• Start Method: Across The Line
