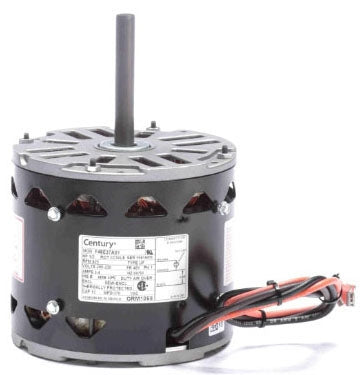

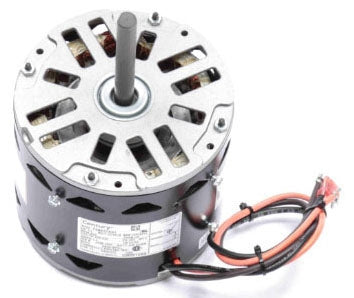

Century ORM1058 1/2 HP 208 to 230 VAC 50/60 Hz 1-Phase Blower Motor

Product Description

The Century ORM1058 is a 1/2 HP HVAC/R motor with a voltage rating of 208 to 230 VAC. This motor operates at 50/60 Hz, with a full load amp rating of 3.4 A. It features an 8-pole construction and provides a speed rating of 825 RPM. Designed for air-over applications, it comes equipped with a round belly band mount and has a class B insulation rating. The motor's frame is made from rolled steel and is classified under NEMA 48Y. This unit is suitable for various applications where reliable motor performance is essential.

• Power Rating: 1/2 HP
• Speed: 825 RPM
• Voltage: 208 to 230 VAC

Product Highlights

This motor features automatic thermal protection and a permanent split capacitor. Its design allows for a counterclockwise lead end rotation and is compatible with sleeve bearings at both the drive and opposite drive ends.

Product Information

Standard Information

• Brand: Century
• Type: HVAC/R Motor

Technical Specifications

• Frame Material: Rolled Steel
• Insulation Class: B
• Enclosure Type: Semi Enclosed, Air-Over
• Service Factor: 1
• Mounting Type: Round Belly Band
• Weight: 15 Pound
• Number of Poles: 8
• Ambient Temperature Rating: 40 Degrees Celsius
• Shaft Type: Flat
