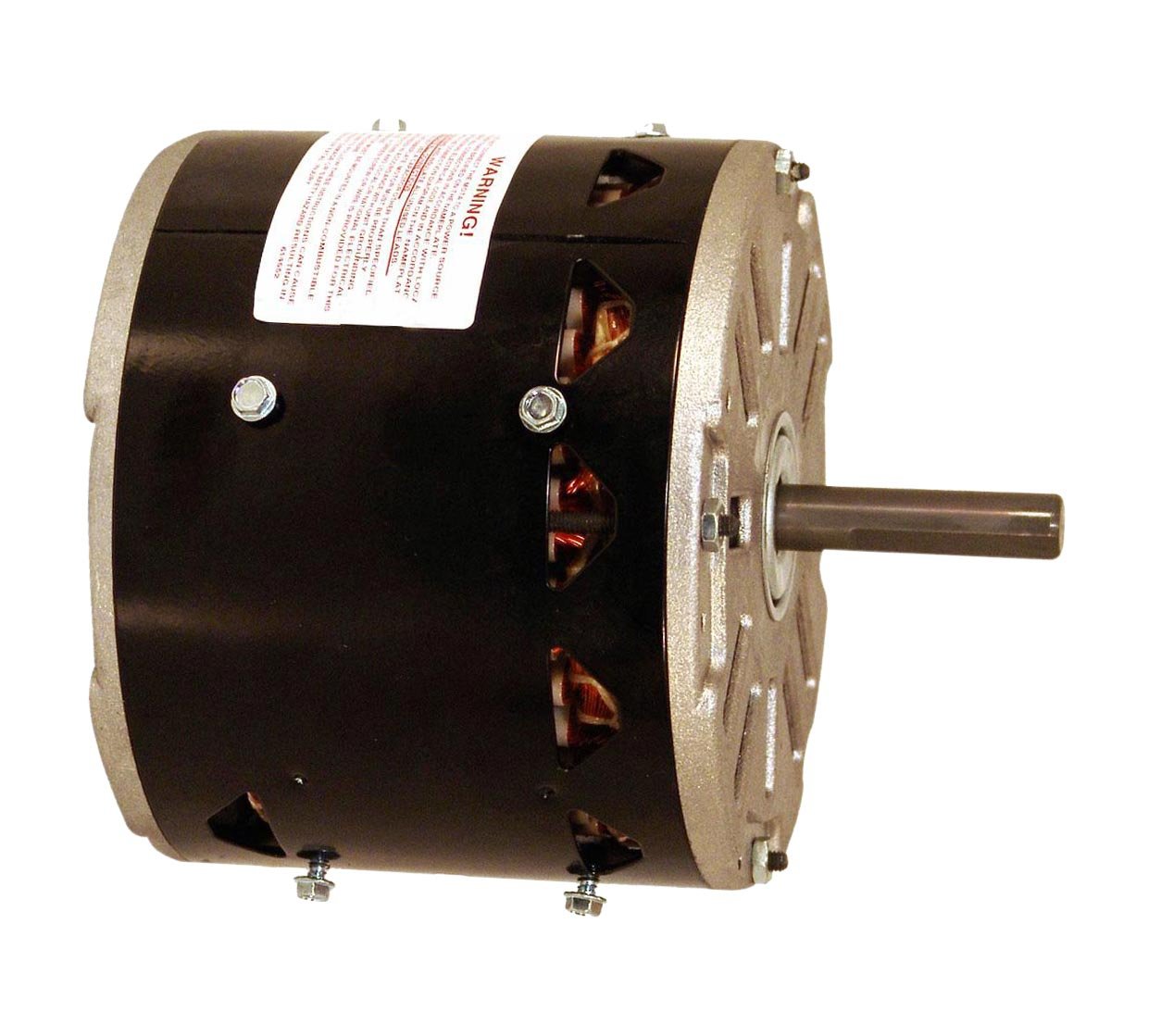

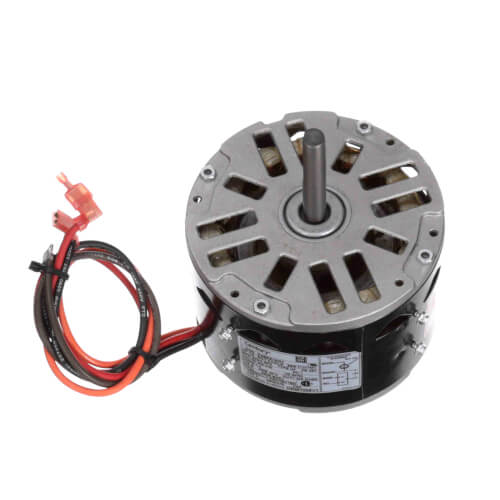

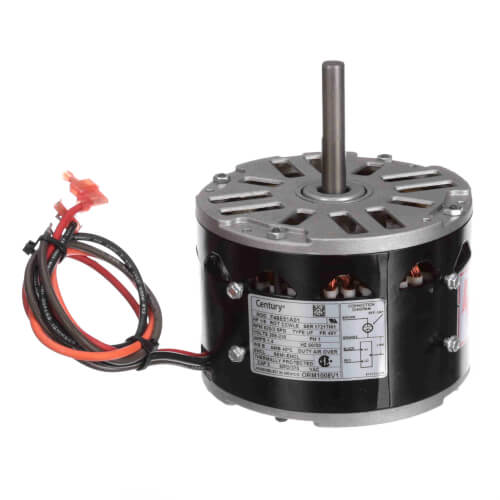

Century ORM1008V1 OEM Replacement Motor 1/8 HP 208-230V 825 RPM 5MFD

Product Description

The Century ORM1008V1 model is a 1/8 hp, 825 RPM, two-speed motor. Designed as a direct replacement for Rheem-Ruud units, this motor ensures reliable performance with 208-230 volts. Its semi-enclosed design, coupled with a 48Y frame, allows it to fit in various industrial applications.

• 1/8 HP, 825 RPM, 2 speed
• 208-230 volts, 1.4 amps
• CCW rotation

Product Highlights

This motor features a rolled steel construction for durability and a 5MFD capacitor for efficient operation. It is equipped with automatic overload protection and sleeve bearings for smooth function.

Product Information

Standard Information

• Brand: Century
• MPN: ORM1008V1

Technical Specifications

• Horse Power: 1/8 HP
• Voltage: 208-230V
• Amperage: 1.4A
• Rotation: CCW
• Frame: 48Y
• RPM: 825
• Mounting Type: Round / Belly Band
• Bearings Type: Sleeve
• Material: Rolled Steel
• Insulation Class: B
• Shaft Diameter: 0.500 inches
• Shaft Length: 2.700 inches
• Enclosure: Semi-enclosed
• Capacitor: 5 MFD
