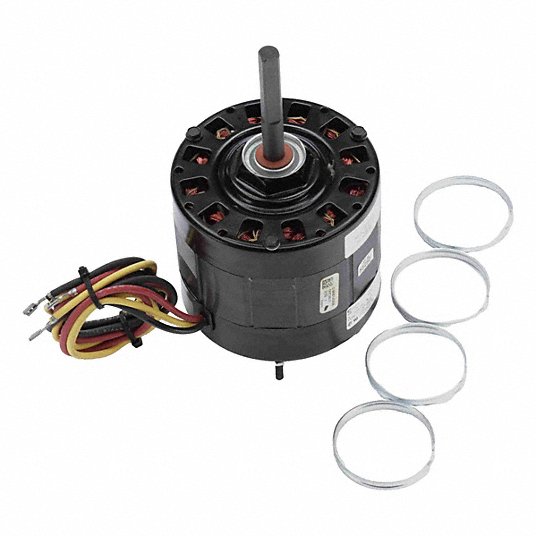

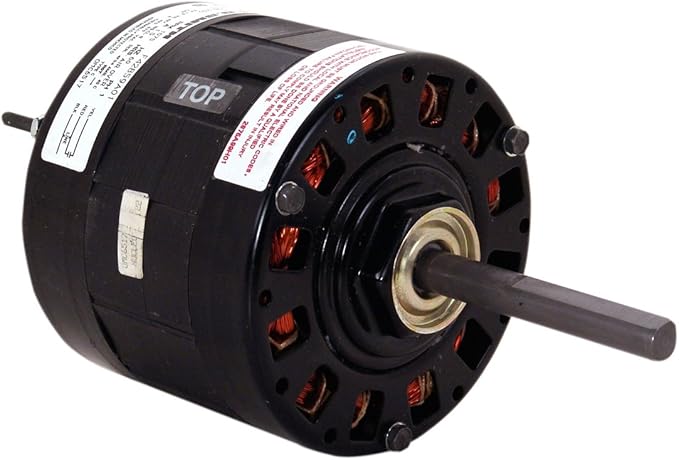

Century Motors OMC6517A OEM Replacement Motor 1/5 HP replacement for 35035B001; F42B59A01; OMC6517

Product Description

The Century Motors OMC6517A is an OEM replacement motor designed for various air over applications. This motor features a five-inch diameter and a 42 frame size. With thermally protected components, it ensures reliable performance even in high temperatures. This motor operates efficiently at one-fifth horsepower with a speed of one thousand seventy-five RPM.

• OEM Direct Replacement Motor
• Thermally Protected
• Class B Insulation, 40 °C Ambient

Product Highlights

Product Information

Standard Information

• Phase: 1
• Voltage: 208-230 V

Technical Specifications

• Output HP: 1/5 Hp
• Speed: 1075 rpm
• Service Factor: 1.0
• Frame: 42
• Enclosure: Semi Enclosed
• Thermal Protection: Automatic
• Ambient Temperature: 40 °C
• Frequency: 60 Hz
• Current: 1.69 A
• Duty: Air Over
• Insulation Class: B
• UL: Recognized
• CSA: Y
• CE: N
• Motor Type: OEM Replacement
• Motor Application: Blower
• Motor Design: Permanent Split Capacitor
• Shaft Design: Double Flat
• Overall Length: 7-7/8 in
• Body Diameter: 5 in
• Weight: 12.13 lbs
• Dimensions: 8.5 x 5.5 x 5.5 inches
