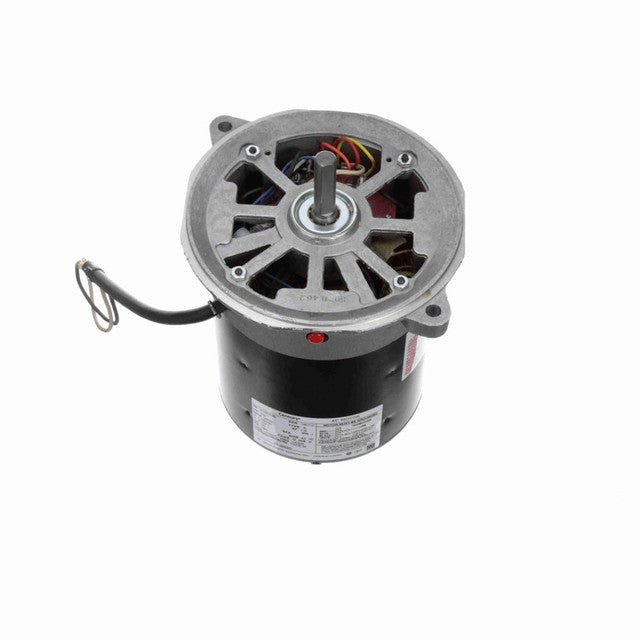

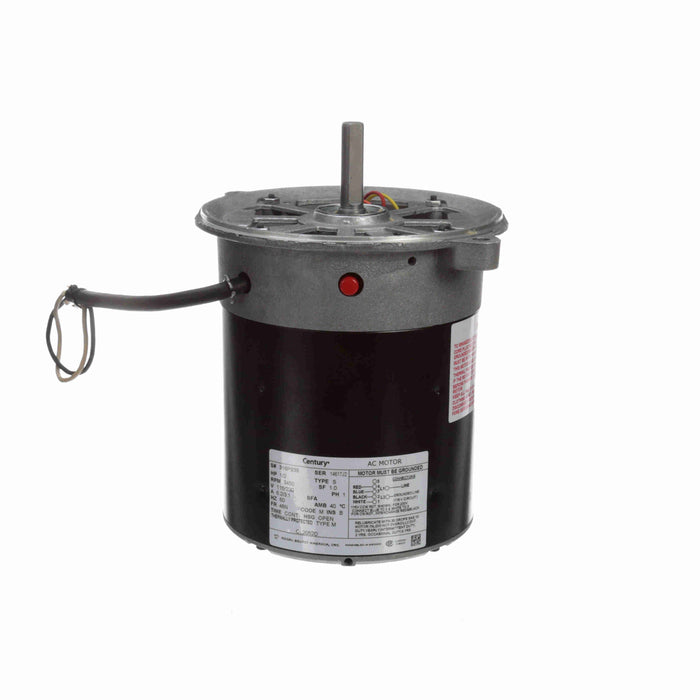

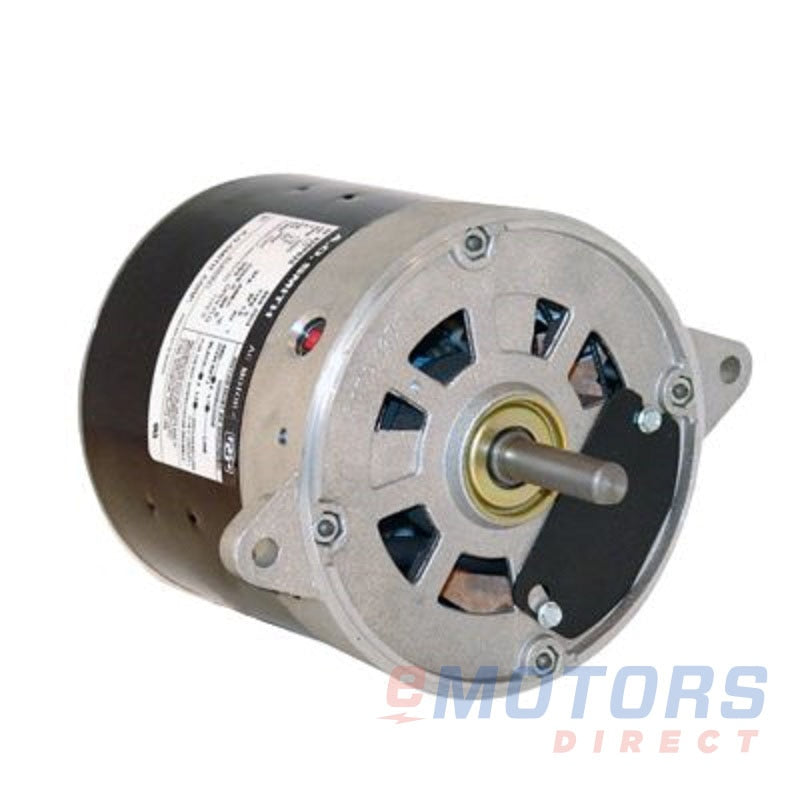

CENTURY MOTORS OL2052D HVAC Oil Burner Motor

Product Description

The CENTURY MOTORS OL2052D is a split phase motor designed for HVAC and oil burner applications. This motor is reliable and efficient, operating at 3450 RPM. It has a dual voltage capability and can function at both 115V and 230V at 50/60Hz. The reversible rotation feature allows for versatile installation options. It is specifically designed for flange mounting.

• Split phase motor for HVAC and oil burner use
• Operates at 3450 RPM with reversible rotation
• Dual voltage support for 115V and 230V operation

Product Highlights

The OL2052D is an important component in HVAC systems, providing efficient operation and flexibility in installation.

Product Information

Standard Information

• Brand: Century
• MPN: OL2052D

Technical Specifications

• Product Type: Split Phase
• Horsepower: 1/2 hp
• Rated Motor Output Power: 1/3 HP
• Power: 0.37 KW
• RPM: 3450
• Voltage: 115/230 Volts
• Frequency: 50/60 Hz
• Frame: 48N
• Enclosure Type: OAO (Open Air Over)
• Mounting: Flange
• Rotation: Reversible
• Overload Protection: Manual
• Thermal Protection: Manual
• Weight: 18 lbs.
• Amperage: 6.2/3.1
• Shaft Diameter: 0.5 inches
• Shaft Extension: 1.974 inches
