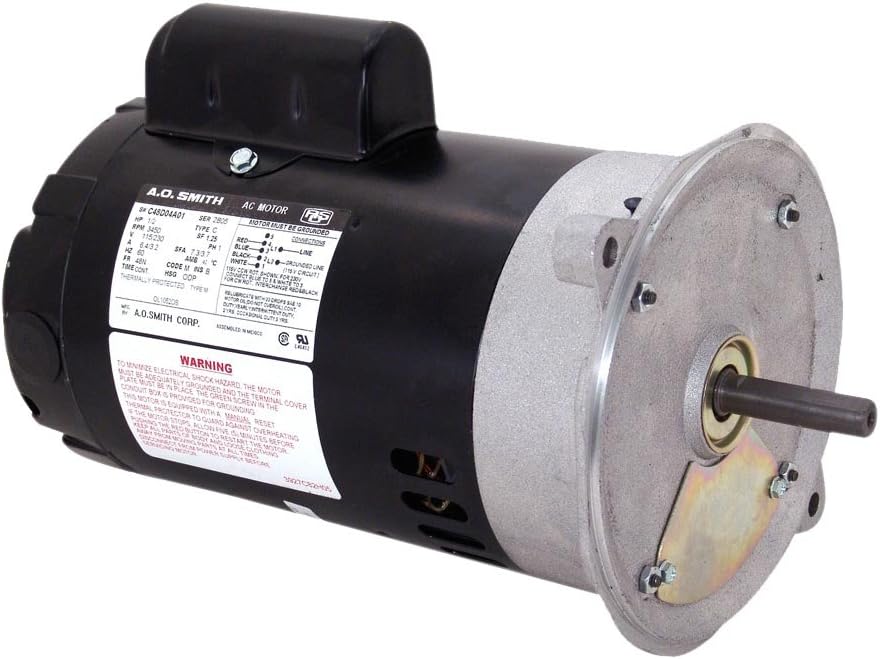

Century OL1032D Oil Burner Motor 0.33 hp 3450 RPM

Product Description

The Century OL1032D Oil Burner Motor is a reliable and efficient component for domestic high and low pressure oil burners. This motor features a 48N frame and meets NEMA standards. It operates at 3450 RPM with a power rating of 0.33 horsepower. The motor has a voltage rating of 115/230 volts, making it versatile for various applications.

• 1/3 HP, 3450 RPM, 115/230 volts
• 48N Frame with sleeve bearings
• Manual reset thermal overload protectors

Product Highlights

This oil burner motor includes a capacitor start and a terminal board for easy installation. It also comes with an open shaft end bracket and is designed for continuous duty cycles.

Product Information

Standard Information

• Brand: Century
• MPN: OL1032D
• Product Type: Oil Burner Motor

Technical Specifications

• Speed: 3450 RPM
• Voltage: 115/230 Volts
• Horsepower: 0.33 hp
• Certification: CSA, UL Recognized
• Amperage: 4.2/2.1
• Frame: 48N
• Phase: Single
• Orientation: All Angle
• Insulation Class: B
• Material: Rolled Steel
• Mounting Type: Face
• Enclosure: Open Dripproof
• Service Factor: 1.35
• Thermal Protection: Manual
• Shaft Type: Flat
• Shaft Diameter: 0.500 inches
• Shaft Length: 2.000 inches
• Body Diameter: 6.75 inches
• Ambient Temperature: 40 degrees C
