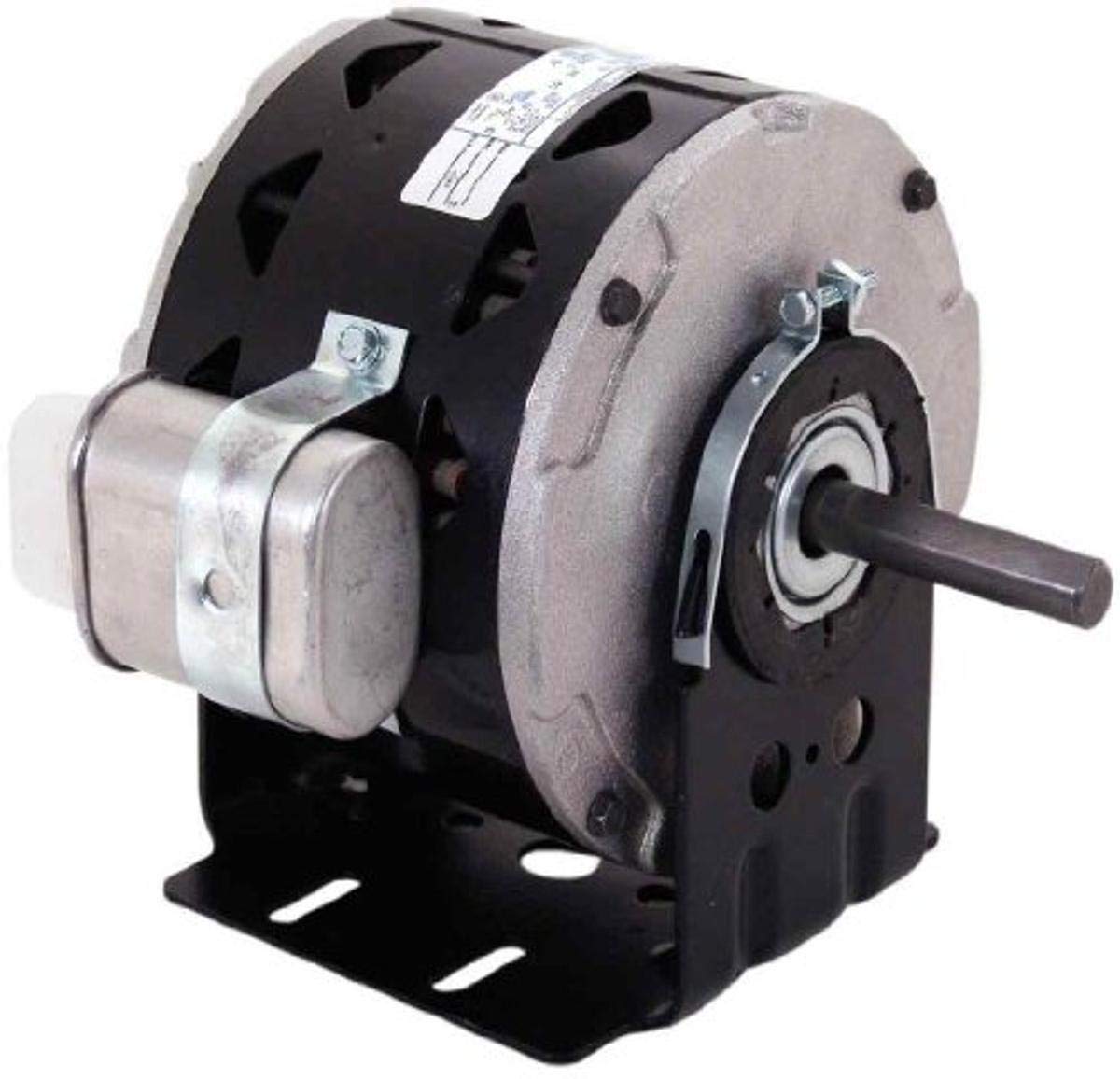

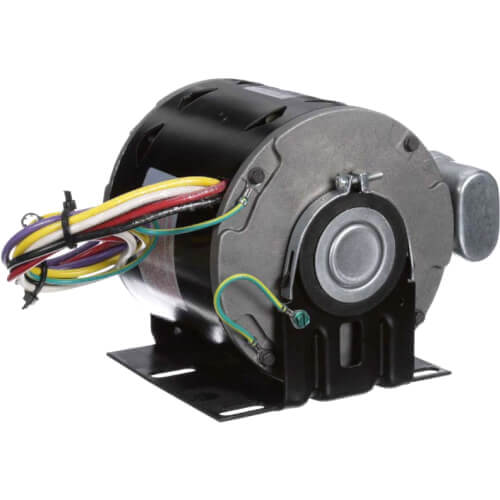

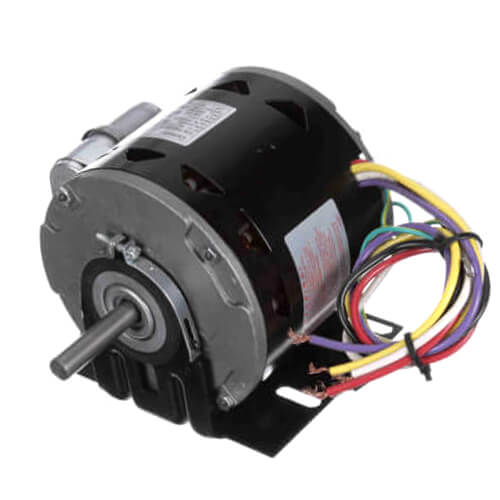

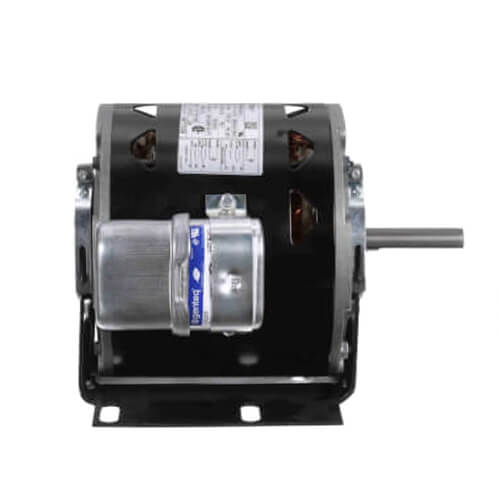

Century OKT1026 Unit Heater, 1/4-HP, OEM Replacement Motor, 1075 RPM, 115/208-230 Volt

Product Description

The Century OKT1026 is an OEM replacement motor designed for various applications in HVAC systems. This motor operates on a single phase with a permanent split capacitor design, delivering 1/4 horsepower and 1075 RPM. It is suitable for both residential and commercial uses where reliable motor performance is required. The motor features an enclosure design that is semi-enclosed, providing adequate protection and durability.

• Electrical Type: PSC
• Frame Diameter: 5.6 inches
• Voltage: 115/208-230V AC

Product Highlights

This motor is ideal for condenser fan applications.

Product Information

Standard Information

• Power Rating: 1/4 HP
• RPM: 1075
• Frame Size: 48Y
• Amperage: 3.0/1.5 A
• Rotation: CCWLE
• Dimensions: 7.66 inches in length

Technical Specifications

• Shaft Type: Flat
• Shaft Diameter: 0.500 inches
• Material: Rolled steel
• Bearings Type: Ball/Ball
• Max Ambient Temperature: 40 degrees Celsius
• Mounting Type: Resilient Base
• Insulation Class: B
• Service Factor: 1.00
