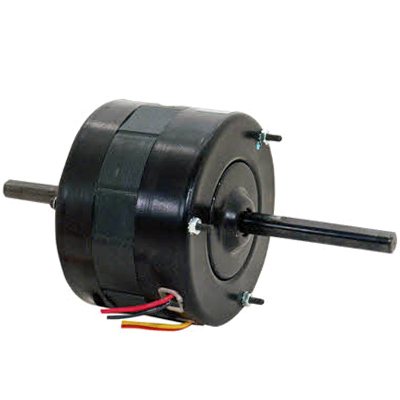

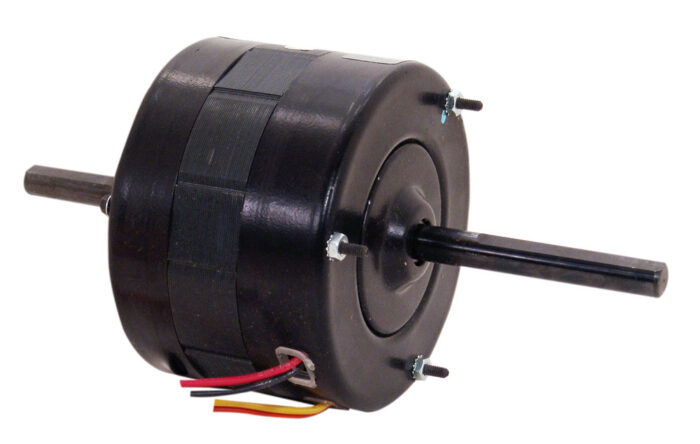

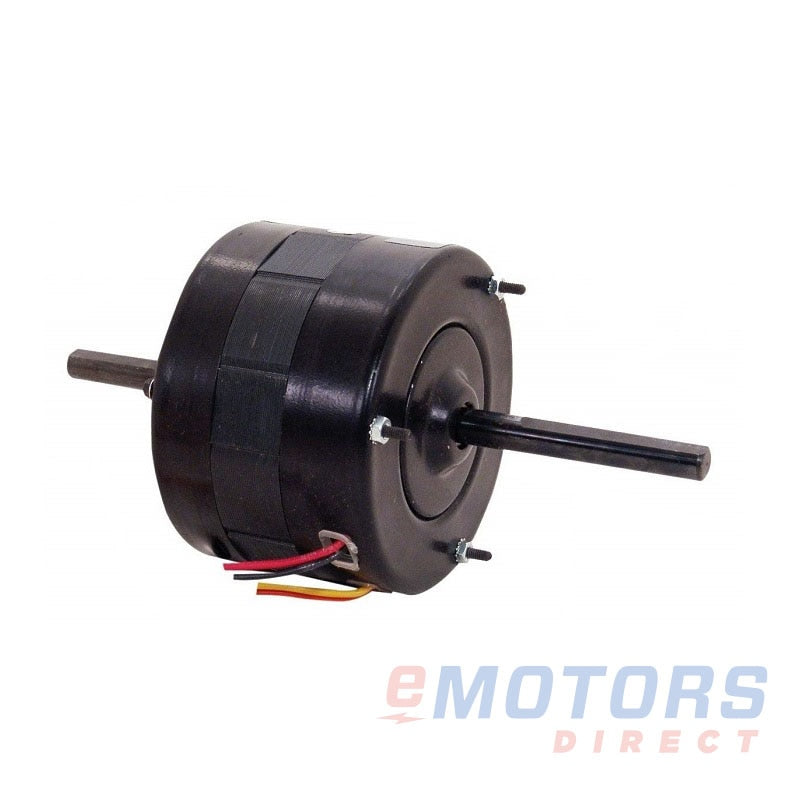

CENTURY MOTORS OFE5001 Motor 1/5 HP 42Y Frame Replacement MPN

Product Description

The CENTURY MOTORS OFE5001 motor is suitable for HVAC and refrigeration applications. This motor operates on single-phase power and is constructed with a permanent split capacitor. It runs efficiently at a voltage of two hundred eight to two hundred thirty volts and a speed of one thousand three hundred fifty RPM. It features automatic overload protection for enhanced safety and is designed for counterclockwise lead end rotation.

• Power: 1/5 HP
• Enclosure Type: Totally Enclosed Air Over
• Rotation: CCWLE

Product Highlights

This motor is ideal for various HVAC applications where reliability and efficiency are essential. Its design ensures durability and performance under different operating conditions.

Product Information

Standard Information

• Brand: Century Motors
• MPN: OFE5001

Technical Specifications

• Horsepower: 1/5 HP
• Voltage: 208-230V
• Current: 1.50 Amps
• RPM: 1350
• Frequency: 60 Hz
• Length: 3-3/8 inches
• Enclosure: Totally Enclosed Air Over (TEAO)
• Shaft Dimensions: 3-5/8 x 1/2 x 2-3/4 inches
• Motor Diameter: 5.0 inches
• Type: Permanent Split Capacitor (PSC)
• Speeds: 2
• Frame: 42Y
• Bearings: Sleeve
• Rotation: CCWLE
• Overload Protector: Automatic
• Service Factor: 1.00
• Phase: 1
• Ambient Temperature: 40°C
• Capacitor Rating: 4MFD-370V
• Frame Material: Rolled Steel
• Mounting Type: Round Body, Stud
• C-Dimension: 9.75 inches
• Shaft Diameter: 0.5 inches
• Double Drilled: No
• Greaseable: No
• Removable Feet: No
